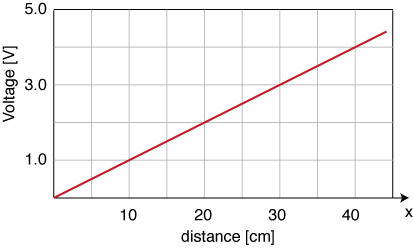

Here is a plot of the voltage measured as a function of distance along a metal wire. Use this information to estimate the current density in the wire, knowing that the conductivity of this particular metal is 3.53×107??1m?13.53×107??1m?1.
![5.0 3.0 1.0 30 40 20 distance [cm] 10](http://img.homeworklib.com/questions/c67bae20-7402-11eb-86f7-b56f34d7f678.jpg?x-oss-process=image/resize,w_560)
A/m2
