Homework Answers

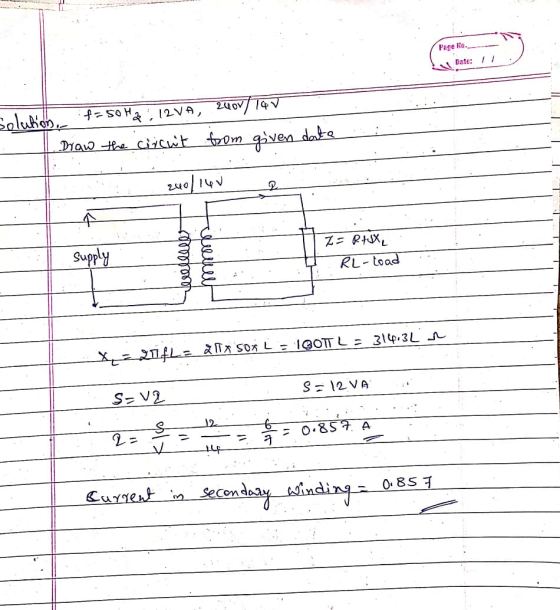

Effective current in secondary winding is I =S/V
I= 12/14 = 0.857 A
Add Answer to:
A 50 Hz, 12 VA, 240V/14V Single phase transformer is required to deliver an RL Load,...
A single phase 60 Hz two-winding power transformer is rated at 2400V/240V and 100 kVA with...
A single phase 60 Hz two-winding power transformer is rated at 2400V/240V and 100 kVA with Zeq = 0.5 + j0.8 Ohm. If an autotransformer is built from this conventional transformer to supply a load at 2640V with supply voltage 2400V. Draw the autotransformer and calculate Zeq, the voltage, current and apparent power rating of the auto transformer. Also calculate the apparent power rating advantage of autotransformer over conventional transformer.
Q-1 A 60Hz, 480V/240V,960V A transformer is supplying a 960W passive load at 240V. The resistances...
Q-1 A 60Hz, 480V/240V,960V A transformer is supplying a 960W passive load at 240V. The resistances of the primary side and secondary side of the transformer are 1.092 and 0.252 respectively. If the no load losses of the transfomer is given by P-Vã 4800 W where Vn is the input voltage of the transformer in Volt. Answer the following: a) Calculate transformer efficiency b) Do you allow this transformer to be connected to 240V 50Hz distribution system? Explain. c What...
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz...
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA at 0.8 p.f. lagging Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA...
Al. A 1 kVA single-phase step-down transformer is connected to a 220 V, 50 Hz A.C....
Al. A 1 kVA single-phase step-down transformer is connected to a 220 V, 50 Hz A.C. source and delivers power to a load. The winding resistance and reactance at secondary side are 0.02 2 and 0.1 12 respectively. The maximum value of core flux is 0.248 mWb and the secondary winding contains 1000 turns. Evaluate a. b. the voltage induced on the secondary side; the turn ratio of primary side to secondary side; the rated current on both sides; and...
A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which...
A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which is connected to the 240-volt secondary winding, absorbs 80 kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: a) primary voltage. b) load impedance. c) load impedance referred to the primary. d) the real and reactive power supplied to the primary winding
3.4 A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load,...
3.4 A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which is connected to the 240-volt secondary wind- ing, absorbs 80 kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: (a) primary voltage, (b) load impedance, (c) load impedance referred to the primary, and (d) the real and reactive power sup- plied to the primary winding.
1kVA ideal single phase step-up transformer
Q1 A 1kVA ideal single phase step-up transformer is supplied by a 24 V ac power source and is delivering power to a 10 Ω resistive load connected to the secondary side. If the transformer is operated at full load (1kVA), determine, a) the secondary current IS; (3 marks) b) the secondary voltage VS; (2 marks) c) the primary current IP; (2 marks) d) the turn ratio of primary winding to secondary winding; and (2 marks) e) the number of...
1) A single-phase 50-kVA, 2400/240 volt, 60 Hz distribution transformer is used as a step-down tr...
1) A single-phase 50-kVA, 2400/240 volt, 60 Hz distribution transformer is used as a step-down transformer at the load end of a 2400-volt feeder whose series impedance is (1.0+2.0) Ω. The equivalent series impedance of the transformer is (10+j25) Ω referred to the high voltage (primary) side. The transformer is delivering rated load at 0.8 power factor lagging and at rated secondary volitage. Neglect the transformer exciting curent. Using the transtormer raltings as base quantities work this problem in per...
d) Consider an ideal, single-phase 2400V-240V transformer. The primary is connected to a 2200V source and...
d) Consider an ideal, single-phase 2400V-240V transformer. The
primary is connected to a 2200V source and the secondary is
connected to an impedance of 2Ω ∠36.9o , find all the values in
Table 1.
Table 1
No
Parameters
1
The secondary output current and voltage.
2
The primary input current
3
The load impedance as seen from the primary side.
4
The input and output apparent power
5
The output power factor
e) A 30MVA 33/11 kV star-delta three phase...
A 3-phase, 50 Hz, 6600 /1000 /440 Y V. transformer (HELP)
Question: A 3-phase, 50 Hz, 6600 /1000 /440 Y V. transformer. (i) What is the purpose of using three winding transformers? (ii)Determine suitable numbers of turns to ensure the peak flux does not exceed 0.03 Web. (ii) Determine the primary line current and power factor if the 1000 V winding delivers a balanced load of 100 kVA at 0.8 power factor lagging and the 440 V winding delivers a balanced load of 50 kW at unity power factor.
Q-1 A 60Hz, 480V/240V,960V A transformer is supplying a 960W passive load at 240V. The resistances of the primary side and secondary side of the transformer are 1.092 and 0.252 respectively. If the no load losses of the transfomer is given by P-Vã 4800 W where Vn is the input voltage of the transformer in Volt. Answer the following: a) Calculate transformer efficiency b) Do you allow this transformer to be connected to 240V 50Hz distribution system? Explain. c What...
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA at 0.8 p.f. lagging Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA...
Al. A 1 kVA single-phase step-down transformer is connected to a 220 V, 50 Hz A.C. source and delivers power to a load. The winding resistance and reactance at secondary side are 0.02 2 and 0.1 12 respectively. The maximum value of core flux is 0.248 mWb and the secondary winding contains 1000 turns. Evaluate a. b. the voltage induced on the secondary side; the turn ratio of primary side to secondary side; the rated current on both sides; and...
A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which is connected to the 240-volt secondary winding, absorbs 80 kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: a) primary voltage. b) load impedance. c) load impedance referred to the primary. d) the real and reactive power supplied to the primary winding
1) A single-phase 50-kVA, 2400/240 volt, 60 Hz distribution transformer is used as a step-down transformer at the load end of a 2400-volt feeder whose series impedance is (1.0+2.0) Ω. The equivalent series impedance of the transformer is (10+j25) Ω referred to the high voltage (primary) side. The transformer is delivering rated load at 0.8 power factor lagging and at rated secondary volitage. Neglect the transformer exciting curent. Using the transtormer raltings as base quantities work this problem in per...
d) Consider an ideal, single-phase 2400V-240V transformer. The
primary is connected to a 2200V source and the secondary is
connected to an impedance of 2Ω ∠36.9o , find all the values in
Table 1.
Table 1
No
Parameters
1
The secondary output current and voltage.
2
The primary input current
3
The load impedance as seen from the primary side.
4
The input and output apparent power
5
The output power factor
e) A 30MVA 33/11 kV star-delta three phase...
