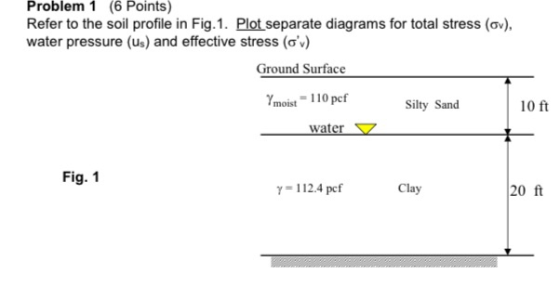

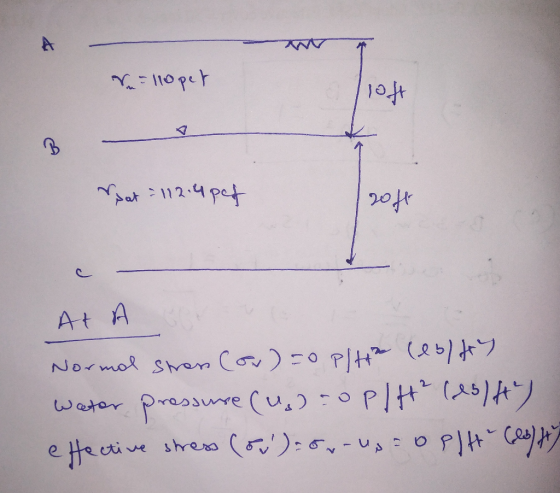

Problem 1 (6 Points) Refer to the soil profile in Fig. 1. Plot separate diagrams for...
Problem 1 Ground Surface A soil profile is shown to the right. The groundwater table is...
Problem 1 Ground Surface A soil profile is shown to the right. The groundwater table is located 15 feet below ground. Calculate the total stress, pore water pressure and effective stress in the vertical and horizontal direction at points a, b, and c located Coarse Sand -120 lb/ft Ko 0.4 %at: 125 lb/ft3 a) 15, b) 40, and c) 58 feet below the ground surface. Stiff Clay = 110 lb/ft3 %at 115 lb/ft3 Ko= 1.3 58 Limestone Bedrock
4.Refer to the soil profile shown in Figure Question 1 (a) Determine the total stress, pore...
4.Refer to the soil profile shown in Figure Question 1 (a) Determine the total stress, pore water pressure, and effective stress at A, B, C, and D (b) If during the spring the water table rises above the ground surface by 15m calculate the effective stress at point D Dry sand;eo.55 G,-266 B Water table 3 m 1.5 mSand G,-2.66e 0.48 Clay w-34.78% G+ 2.74 5 m Figure Question 4
(5 points) 6. A soil profile consists of 4 ft of organic soil (a 75 pe)...
(5 points) 6. A soil profile consists of 4 ft of organic soil (a 75 pe) over a uniform soft clay layer. For the clay y 120 pcf and, ?'/o 1.0 The water table is at the ground surface. For a clay element A, at the depth of 10 feet from the ground surface (6 feet into the soft clay) compute the following Assume a wide fill, thickness 7 feet, ? 105 pcf is placed over the surface of the...
help please A square footing is founded at 3-ft depth below ground surface as shown in...
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles to the bottom of clay layer. Fine sand has a thickness of 6 m (FST) with saturated unit weight of 18 kN/m2. Clay has a thickness of 8 m with saturated unit weight of 14 kN/m3 The water table is located at depth of 0.7 of fine sand thickness below the ground surface (i.e. depth=0.7*FST). Fine sand will sustain capillarity (suction). Assume the same...
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site....
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site. The water table is at the ground surface. Saturated unit weight of the sand is 18.8kN/m' and that of the clay is 19.6kN/m. Assume permeability of the clay is very low and unit weight of water is 10kN/m'. Water Table Sand 5m Clay 6m Figure 05 a) Determine the vertical total stress, pore water pressure, and vertical effective stress at the mid-height of the...
A soil profile consists of a clay layer underlain by a sand layer, as shown in...
A soil profile consists of a clay layer underlain by a sand layer, as shown in figure. If a tube is inserted into the bottom sand layer and the water level rises to 1m above the ground surface, determined the vertical effective stresses and porewater pressures at A, B, and C. if ko is 0.5, determine the effective and total lateral stresses at A, B, and C. what is the value of the value of the porewater pressure at A...
With reference to the soil profile shown below, answer the following questions Y=122 pcf, O'= 5°...
With reference to the soil
profile shown below, answer the following questions
Y=122 pcf, O'= 5° 10 ft Yat-110 pcf, 0 = 10° 10 ft 10 A Ya 113 pcf, 0 = 15° Bedrock A) What is the pore water pressure at Point B? (5 points) B) What is the total stress at Point B? (5 points) C) What is the effective stress at Point A? (5 points) D) What is the shear strength at Point A? (5 points)
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500...
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500 b. A plane through a sample of this soil has an effective normal stress of c. Use a Mohr circle that touches the failure enve psf and 32 deg. acting on it. What is the shear strength of the soil on that plane? of 2000 psf to estimate the values of σ, and σ, at a state of shear failure 2000 psf lope at...
2.) THE SOIL PROFILE SHOWS CONSISTS OF A LAYER OF DRY SAND 4m HICK WHICH OVERLIES...
2.) THE SOIL PROFILE SHOWS CONSISTS OF A LAYER OF DRY SAND 4m HICK WHICH OVERLIES A LAYER OF CLAY HAVING A THICKNESS OF 6m. GROUND WATER TABLE IS LOCATED AT THE INTERFACE OF THE SAND AND CLAY a.) COMPUTE THE EFFECTIVE STRESS AT THE BOTTOM OF THE CLAY LAYER b..) IF THE WATER TABLE RISES BY 2m, DETERMINE THE EFFECTIVE STRESS AT THE BOTTOM OF THE CLAY LAYER c.) IF THE WATER TABLE LOWERS BY 2m, DETERMINE THE EFFECTIVE...
Problem 1 Ground Surface A soil profile is shown to the right. The groundwater table is located 15 feet below ground. Calculate the total stress, pore water pressure and effective stress in the vertical and horizontal direction at points a, b, and c located Coarse Sand -120 lb/ft Ko 0.4 %at: 125 lb/ft3 a) 15, b) 40, and c) 58 feet below the ground surface. Stiff Clay = 110 lb/ft3 %at 115 lb/ft3 Ko= 1.3 58 Limestone Bedrock
4.Refer to the soil profile shown in Figure Question 1 (a) Determine the total stress, pore water pressure, and effective stress at A, B, C, and D (b) If during the spring the water table rises above the ground surface by 15m calculate the effective stress at point D Dry sand;eo.55 G,-266 B Water table 3 m 1.5 mSand G,-2.66e 0.48 Clay w-34.78% G+ 2.74 5 m Figure Question 4
(5 points) 6. A soil profile consists of 4 ft of organic soil (a 75 pe) over a uniform soft clay layer. For the clay y 120 pcf and, ?'/o 1.0 The water table is at the ground surface. For a clay element A, at the depth of 10 feet from the ground surface (6 feet into the soft clay) compute the following Assume a wide fill, thickness 7 feet, ? 105 pcf is placed over the surface of the...
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles to the bottom of clay layer. Fine sand has a thickness of 6 m (FST) with saturated unit weight of 18 kN/m2. Clay has a thickness of 8 m with saturated unit weight of 14 kN/m3 The water table is located at depth of 0.7 of fine sand thickness below the ground surface (i.e. depth=0.7*FST). Fine sand will sustain capillarity (suction). Assume the same...
Question 5 (Effective Stress & Consolidation) Figure 05 shows the soil profile of a construction site. The water table is at the ground surface. Saturated unit weight of the sand is 18.8kN/m' and that of the clay is 19.6kN/m. Assume permeability of the clay is very low and unit weight of water is 10kN/m'. Water Table Sand 5m Clay 6m Figure 05 a) Determine the vertical total stress, pore water pressure, and vertical effective stress at the mid-height of the...
With reference to the soil
profile shown below, answer the following questions
Y=122 pcf, O'= 5° 10 ft Yat-110 pcf, 0 = 10° 10 ft 10 A Ya 113 pcf, 0 = 15° Bedrock A) What is the pore water pressure at Point B? (5 points) B) What is the total stress at Point B? (5 points) C) What is the effective stress at Point A? (5 points) D) What is the shear strength at Point A? (5 points)
3. Shear Strength a. Plot the effective stress Mohr-Coulomb failure envelope for a soil with c'-500 b. A plane through a sample of this soil has an effective normal stress of c. Use a Mohr circle that touches the failure enve psf and 32 deg. acting on it. What is the shear strength of the soil on that plane? of 2000 psf to estimate the values of σ, and σ, at a state of shear failure 2000 psf lope at...
2.) THE SOIL PROFILE SHOWS CONSISTS OF A LAYER OF DRY SAND 4m HICK WHICH OVERLIES A LAYER OF CLAY HAVING A THICKNESS OF 6m. GROUND WATER TABLE IS LOCATED AT THE INTERFACE OF THE SAND AND CLAY a.) COMPUTE THE EFFECTIVE STRESS AT THE BOTTOM OF THE CLAY LAYER b..) IF THE WATER TABLE RISES BY 2m, DETERMINE THE EFFECTIVE STRESS AT THE BOTTOM OF THE CLAY LAYER c.) IF THE WATER TABLE LOWERS BY 2m, DETERMINE THE EFFECTIVE...
