Homework Answers
Solution:
Answer
Part A:
Length d = 6 ft
Part B:
Intensity w = 266.667 lb /ft

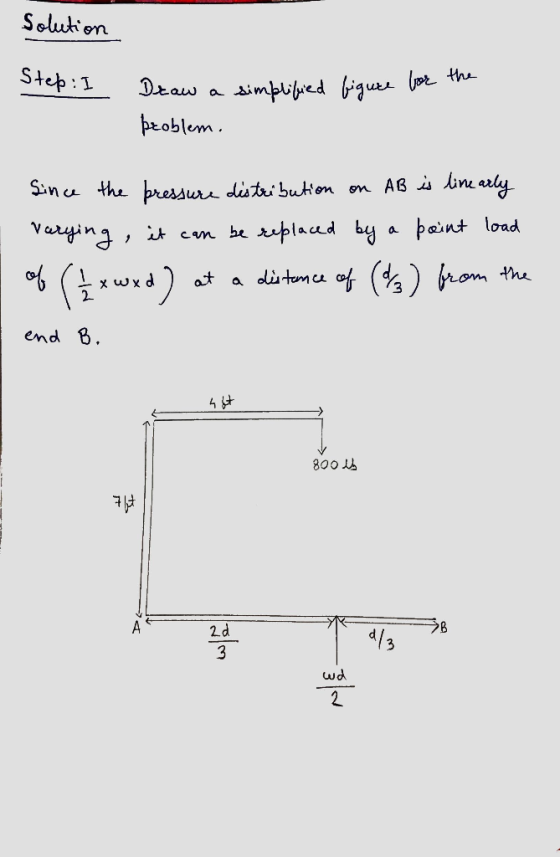

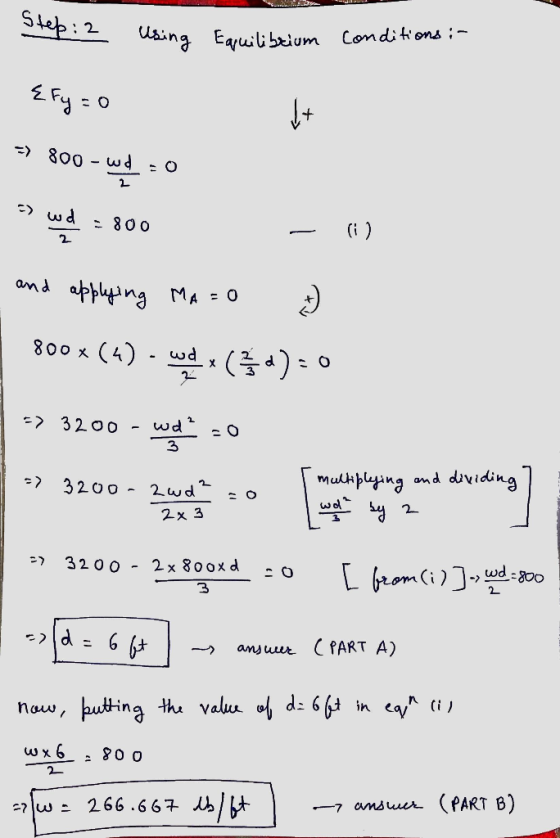

Detailed solution is provided in the images below.
Please go through it and if you have any doubts, feel free to ask.
Add Answer to:
Probleml5.39 Part A The framework is supported by the member AB which rests on the smooth...
Problem 5.80 Part A The bar AB is supported by two smooth collars. At A the...
Problem 5.80 Part A The bar AB is supported by two smooth collars. At A the connection is with a ball-and-socket joint and at B it is a rigid attachment Suppose that F 85 lb load is applied to the bar. (Figure 1) Determine the z, y, z con Express your answers Figure 1 of 1> vec Az. Ay. Ag 6 ft SubmitRe Request 4ft 6ft Part B 5 ft Determine the c, y. z Express your answer
Part A The bent rod is supported by a smooth surface at B and by a...
Part A The bent rod is supported by a smooth surface at B and by a collar at A which is fxed to the rod and is free to slide over the fixed inclined rod Suppose that F- 100 lb and M-300 Ib ft.(Figure 1) Determine the magnitude of the reaction force on the rod at B. Express your answer to three significant figures and include the appropriate units. HA ? Ng Value Units Submit Request Answer Part B Determine...
Item 6 Part A The 145-lb crate is supported by cables AB, AC, and AD. Determine...
Item 6 Part A The 145-lb crate is supported by cables AB, AC, and AD. Determine the tension in these wires. (Figure 1) Determine the tension developed in cable AB Express your answer to three significant figures and include the appropriate units. FAD-Value Units Submit My Answers Give Up Incorrect; Try Again, 4 attempts remaining Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. FAC- Value Units |...
The bent rod is supported at A, B, and C by smooth journal bearings (Figure 1)...
The bent rod is supported at A, B, and C by smooth journal bearings (Figure 1) Part A Compute the x, y, z components of reaction at the bearing Aif the rod is subjected to forces F = 400 lb and P2 - 350 lb.F, lies in the y- z plane. The bearings are in proper alignment and exert only force reactions on the rod. Enter the z, y, and components of the reaction using three significant figures separated by...
The control gate ACB is pinned at A and rests on the smooth surface at B....
The control gate ACB is pinned at A and rests on the smooth surface at B. The gate has a width of 5 ft. Neglect the weight of the gate. ye 62.4 lb/ft3 Figure 1) ▼ Part A If the counterweight C is 1500 lb, determine the maximum depth of water h in the reservoir before the gate begins to open Express your answer using three significant figures View Available Hint(s ft Figure < 1of1 > Submit 3 ft Provide...
Rod AB is fixed to a smooth collar D, which slides freely along the vertical guide....
Rod AB is fixed to a smooth collar D, which slides freely along the vertical guide. (Figure 1) Figure (1 of 1 > 60 lb -15 lb/ft B D 130° С 3 ft - 1.5 ft- Part A Determine the internal normal force at point C, which is located just to the left of the 60-lb concentrated load. Express your answer to three significant figures and include the appropriate units. НА ? No = Value Units Submit Request Answer Part...
The smooth 160-lb pipe has a length of 20 ft and a negligible diameter. It is...
The smooth 160-lb pipe has a length of 20 ft and a negligible diameter. It is carried on a truck. The truck accelerates at 5 ft/s . (Figure 1) Part A Determine the normal reaction at A. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 I MÅ ? NA Value Units Submit Request Answer 20 ft 5 ft Part B Determine the 2 and y components of force which the truck...
Problem 4.12 3 of 3> The load is supported by the four 304 stainless steel wires...
Problem 4.12 3 of 3> The load is supported by the four 304 stainless steel wires that are connected to the rigid members AB and DC. The members were originally horizontal, and each wire has a cross-sectional area of 0.025 in (Figure 1) Part A Determine the angle of tilt of member CD after the 500-lb load is applied Express your answer to three significant figures and include the appropriate units. aValue Units Submit uest Answer Part B Determine the...
The uniform 14-kg ladder rests on the rough floor for which the coefficient of static friction...
The uniform 14-kg ladder rests on the rough floor for which the coefficient of static friction is = 0.5 and against the smooth wall at B.(Figure 1) Part A Determine the horizontal force P the man must exert on the ladder in order to cause it to move Express your answer with the appropriate units. PÅ RO? P= Value N Submit Previous Answers Request Answer X Incorrect; Try Again: 5 attempts remaining < Return to Assignment Provide Feedback Figure
Determine the force in member AB, and state if the member is in tension or compression Suppose that P = 460 lb , (Figur...
Determine the force in member AB, and state if the member is in tension or compression Suppose that P = 460 lb , (Figure 1) Express your answer three significant figures and include the appropriate units. Enter negative value the case of compression and positive value in the case of tension. FAB=474 lb Previous Answers Submit Correct Part B Determine the force in member BC, and state if the member is in tension or compression. Expre value in the case...
Problem 5.80 Part A The bar AB is supported by two smooth collars. At A the connection is with a ball-and-socket joint and at B it is a rigid attachment Suppose that F 85 lb load is applied to the bar. (Figure 1) Determine the z, y, z con Express your answers Figure 1 of 1> vec Az. Ay. Ag 6 ft SubmitRe Request 4ft 6ft Part B 5 ft Determine the c, y. z Express your answer
Part A The bent rod is supported by a smooth surface at B and by a collar at A which is fxed to the rod and is free to slide over the fixed inclined rod Suppose that F- 100 lb and M-300 Ib ft.(Figure 1) Determine the magnitude of the reaction force on the rod at B. Express your answer to three significant figures and include the appropriate units. HA ? Ng Value Units Submit Request Answer Part B Determine...
Item 6 Part A The 145-lb crate is supported by cables AB, AC, and AD. Determine the tension in these wires. (Figure 1) Determine the tension developed in cable AB Express your answer to three significant figures and include the appropriate units. FAD-Value Units Submit My Answers Give Up Incorrect; Try Again, 4 attempts remaining Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. FAC- Value Units |...
The bent rod is supported at A, B, and C by smooth journal bearings (Figure 1) Part A Compute the x, y, z components of reaction at the bearing Aif the rod is subjected to forces F = 400 lb and P2 - 350 lb.F, lies in the y- z plane. The bearings are in proper alignment and exert only force reactions on the rod. Enter the z, y, and components of the reaction using three significant figures separated by...
The control gate ACB is pinned at A and rests on the smooth surface at B. The gate has a width of 5 ft. Neglect the weight of the gate. ye 62.4 lb/ft3 Figure 1) ▼ Part A If the counterweight C is 1500 lb, determine the maximum depth of water h in the reservoir before the gate begins to open Express your answer using three significant figures View Available Hint(s ft Figure < 1of1 > Submit 3 ft Provide...
Rod AB is fixed to a smooth collar D, which slides freely along the vertical guide. (Figure 1) Figure (1 of 1 > 60 lb -15 lb/ft B D 130° С 3 ft - 1.5 ft- Part A Determine the internal normal force at point C, which is located just to the left of the 60-lb concentrated load. Express your answer to three significant figures and include the appropriate units. НА ? No = Value Units Submit Request Answer Part...
The smooth 160-lb pipe has a length of 20 ft and a negligible diameter. It is carried on a truck. The truck accelerates at 5 ft/s . (Figure 1) Part A Determine the normal reaction at A. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 I MÅ ? NA Value Units Submit Request Answer 20 ft 5 ft Part B Determine the 2 and y components of force which the truck...
Problem 4.12 3 of 3> The load is supported by the four 304 stainless steel wires that are connected to the rigid members AB and DC. The members were originally horizontal, and each wire has a cross-sectional area of 0.025 in (Figure 1) Part A Determine the angle of tilt of member CD after the 500-lb load is applied Express your answer to three significant figures and include the appropriate units. aValue Units Submit uest Answer Part B Determine the...
The uniform 14-kg ladder rests on the rough floor for which the coefficient of static friction is = 0.5 and against the smooth wall at B.(Figure 1) Part A Determine the horizontal force P the man must exert on the ladder in order to cause it to move Express your answer with the appropriate units. PÅ RO? P= Value N Submit Previous Answers Request Answer X Incorrect; Try Again: 5 attempts remaining < Return to Assignment Provide Feedback Figure
Determine the force in member AB, and state if the member is in tension or compression Suppose that P = 460 lb , (Figure 1) Express your answer three significant figures and include the appropriate units. Enter negative value the case of compression and positive value in the case of tension. FAB=474 lb Previous Answers Submit Correct Part B Determine the force in member BC, and state if the member is in tension or compression. Expre value in the case...
