Homework Answers
Add Answer to:

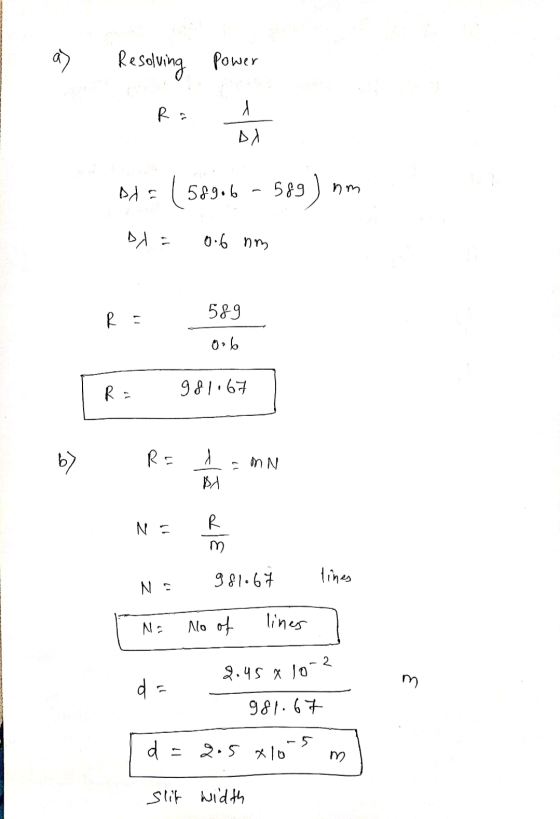

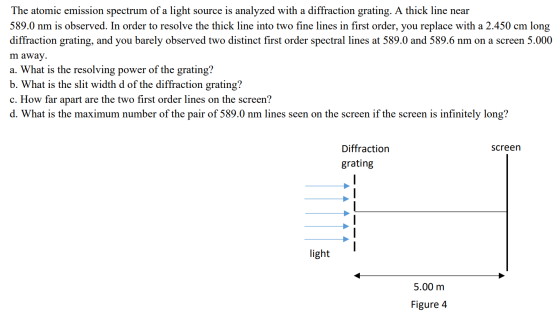

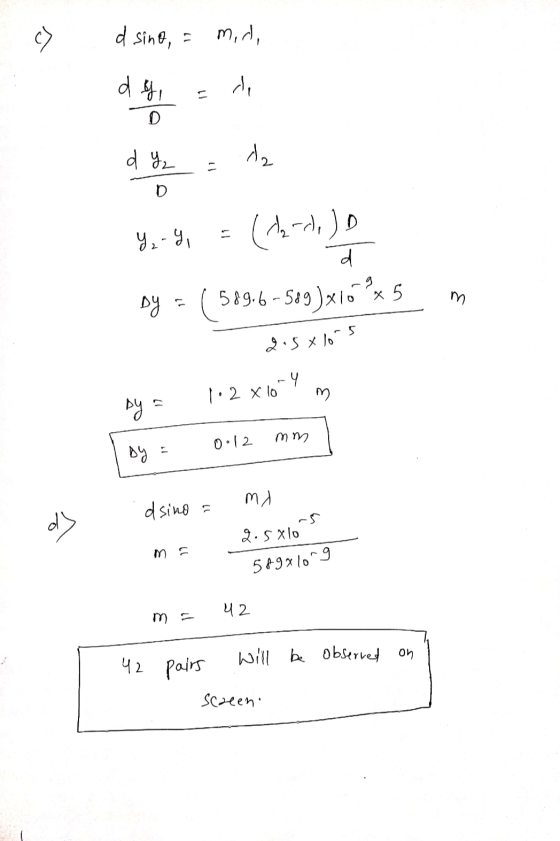

The atomic emission spectrum of a light source is analyzed with a diffraction grating. A thick...
Sodium’s emission lines at 589.0 nm and 589.6 nm pass through a diffraction grating and form...
Sodium’s emission lines at 589.0 nm and 589.6 nm pass through a diffraction grating and form two m = +1 maxima on a viewing screen. For which situation would the spacing between the two lines increase? The intensity of the light is doubled. The grating is exchanged for one with twice the total number of lines. The maxima are viewed in second order. The grating is exchanged for one having fewer lines per millimeter
A diffraction grating is used in second order, to resolve the spectrum of the light emitted...
A diffraction grating is used in second order, to resolve the spectrum of the light emitted by a sodium lamp. The sodium light is known to contain a doublet (λ 1 589.00 nm and λ2-589.59 nm). The grating contains 500 lines per centimeter. What is the minimum size of the grating that must be illuminated by the collimated light in order to resolve the two spectral lines?
Suppose that you have a reflection diffraction grating with n= 140 lines per millimeter. Light from...
Suppose that you have a reflection diffraction grating with n= 140 lines per millimeter. Light from a sodium lamp passes through the grating and is diffracted onto a distant screen. a. Two visible lines in the sodium spectrum have wavelengths 498 nm and 569 nm. What is the angular separation Δθ of the first maxima of these spectral lines generated by this diffraction grating? answer is 57 degrees b. How wide does this grating need to be to allow you...
Suppose that you have a reflection diffraction grating with n= 140 lines per millimeter. Light from...
Suppose that you have a reflection diffraction grating with n= 140 lines per millimeter. Light from a sodium lamp passes through the grating and is diffracted onto a distant screen. A. Two visible lines in the sodium spectrum have wavelengths 498 nm and 569 nm. What is the angular separation Δθ of the first maxima of these spectral lines generated by this diffraction grating? B. How wide does this grating need to be to allow you to resolve the two...
2) White light is being analyzed by a diffraction grating (100 lines/mm). In the interference pattern,...
2) White light is being analyzed by a diffraction grating (100 lines/mm). In the interference pattern, the third order blue (wavelength=400 nm) appears 10 cm from the central maxima. How far away is the screen placed from the grating? a) 0.83 m b) 6.52m c) 0.21m d) 8.33m Do you agree or disagree with the statement: "Single-slit interference shouldn't be possible if light was wave; for waves to interfere- you need at least two slits" a) agree b)disagree
(a) White light is spread out into its spectral components by a diffraction grating. If the...
(a) White light is spread out into its spectral components by a diffraction grating. If the grating has 2,070 grooves per centimeter, at what angle (in degrees) does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.) (b) What If? What is the angular separation (in degrees) between the first-order maximum for 640 nm red light and the first-order maximum for green light of wavelength 525 nm? 11. (-/1...
A diffraction grating has 3 200 rulings/cm. On a screen 2.50 m from the grating, it...
A diffraction grating has 3 200 rulings/cm. On a screen 2.50 m from the grating, it is found that for a particular order m, the maxima corresponding to two closely spaced wavelengths of sodium (589.0 nm and 589.6 nm) are separated by 1.21 mm. Determine the value of m. m = ____ m is not 3,4 or 5 PLEASE ONLY ANSWER IF YOU KNOW ITS CORRECT
2. You have a diffraction grating with 2500 lines/cm. You also have a light source that...
2. You have a diffraction grating with 2500 lines/cm. You also have a light source that emits light at 2 different wavelengths, 540 nm and 690 nm, at the same time. The screen for your experiment is 1.2 meters from the diffraction grating. A. What is the line spacing for the grating? B. What is the difference in the angle of the 2nd bright fringe for each wavelength for this grating? C. Which wavelength is closer to the center of...
A diffraction grating has 3 900 rulings/cm. On a screen 1.50 m from the grating, it...
A diffraction grating has 3 900 rulings/cm. On a screen 1.50 m from the grating, it is found that for a particular order m, the maxima corresponding to two closely spaced wavelengths of sodium (589.0 nm and 589.6 nm) are separated by 1.00 mm. Determine the value of m Your Enter a number rs from the correct answer by more than 100% Need Help? Read Submit Answer Save Progress Practice Another Version
Please draw a diagram thank you! Light from a sodium lamp passes through a diffraction grating...
Please draw a diagram thank you!
Light from a sodium lamp passes through a diffraction grating having 1000 slits per millimeter. The interference patter is viewed on a screen 1.00 m from the grating. Two bright yellow fringes are visible at 72.88 cm and 73.00 cm from the central maximum. What are the wavelengths of the two fringes? 589.0 nm and 589.6 nm 72.88 nm and 73.00 nm 678.9 nm and 679.8 nm 711.7 nm and 771.9 nm ck Save...
A diffraction grating is used in second order, to resolve the spectrum of the light emitted by a sodium lamp. The sodium light is known to contain a doublet (λ 1 589.00 nm and λ2-589.59 nm). The grating contains 500 lines per centimeter. What is the minimum size of the grating that must be illuminated by the collimated light in order to resolve the two spectral lines?
(a) White light is spread out into its spectral components by a diffraction grating. If the grating has 2,070 grooves per centimeter, at what angle (in degrees) does red light of wavelength 640 nm appear in first order? (Assume that the light is incident normally on the gratings.) (b) What If? What is the angular separation (in degrees) between the first-order maximum for 640 nm red light and the first-order maximum for green light of wavelength 525 nm? 11. (-/1...
A diffraction grating has 3 900 rulings/cm. On a screen 1.50 m from the grating, it is found that for a particular order m, the maxima corresponding to two closely spaced wavelengths of sodium (589.0 nm and 589.6 nm) are separated by 1.00 mm. Determine the value of m Your Enter a number rs from the correct answer by more than 100% Need Help? Read Submit Answer Save Progress Practice Another Version
Please draw a diagram thank you!
Light from a sodium lamp passes through a diffraction grating having 1000 slits per millimeter. The interference patter is viewed on a screen 1.00 m from the grating. Two bright yellow fringes are visible at 72.88 cm and 73.00 cm from the central maximum. What are the wavelengths of the two fringes? 589.0 nm and 589.6 nm 72.88 nm and 73.00 nm 678.9 nm and 679.8 nm 711.7 nm and 771.9 nm ck Save...
