Homework Answers
Here an extra tape length is add as shown left side of marked 0.
So it is an add tape of reading 23+ 0.5 or 23.5
So option b is correct.
Add Answer to:

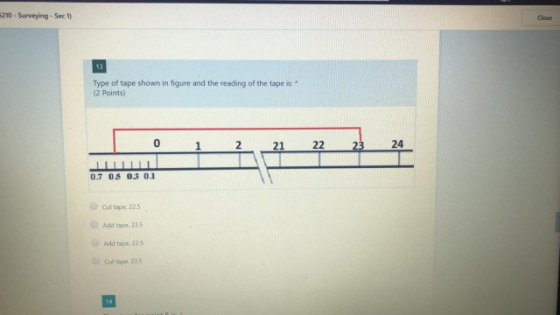

6210 - Surveying - Sec1) Close 13 Type of tape shown in figure and the reading...
