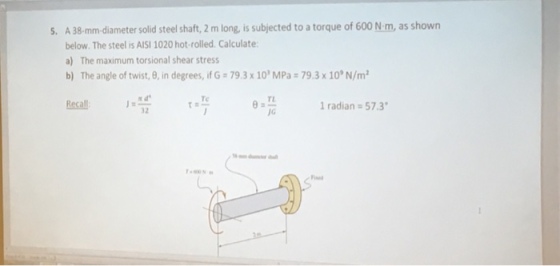

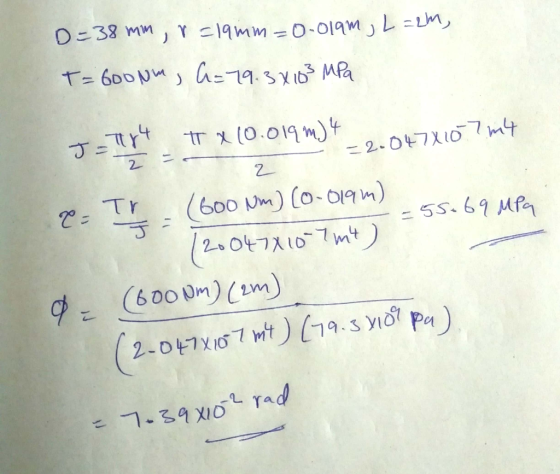

5. A 38-mm-diameter solid steel shaft, 2 m long, is subjected to a torque of 600...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
Segment AB is a solid steel shaft that is 2 m in length, 0.1 m in...
Segment AB is a solid steel shaft that is 2 m in length, 0.1 m
in diameter, and has an applied torque of 5,000 N∙m in the
clockwise direction. Segment BC is a solid steel shaft that is 1.5
meters in length, 0.2 meters in diameter, and has an applied torque
of 15,000 N∙m in the counter clockwise direction.
a.) Determine the maximum shear stress, in
MPa, in the shaft
b.) Determine the angle of twist, in degrees, in section...
#3 4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands...
#3
4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands a tor shear modulus for this steel is 7 shaft. o GPa. Determine the shear stress in the shaft and the angle of twist of the
A steel gear shaft transmits 3.0 hp at a speed of 240 rpm. The diameter of...
A steel gear shaft transmits 3.0 hp at a speed of 240 rpm. The diameter of the solid shaft is 0.860 inches with a length of 14.0 inches. Determine the torque on the shaft, the torsional shear stress at 0.30 in radial distance from the neutral axis, and the angle of twist i the shaft. G =11.5 x106 psi
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 230 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? O= Value Units
The splined ends and gears attached to the A992 steel shaft are subjected to the torques...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. If the shaft has a diameter of 40 mm. [10 marks] a-Draw the torque diagram. [2 marks] b-Determine the angle of twist of end B with respect to end A. [3 marks] C- Determine the maximum shear stress the shaft is subjected to. [2 marks] d- If the allowable shear stress in the shaft is 300 MPa, and the allowable angle of twist...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
Segment AB is a solid steel shaft that is 2 m in length, 0.1 m
in diameter, and has an applied torque of 5,000 N∙m in the
clockwise direction. Segment BC is a solid steel shaft that is 1.5
meters in length, 0.2 meters in diameter, and has an applied torque
of 15,000 N∙m in the counter clockwise direction.
a.) Determine the maximum shear stress, in
MPa, in the shaft
b.) Determine the angle of twist, in degrees, in section...
#3
4) A mild steel solid shaft 1.8 meters long and 30 mm in diameter withstands a tor shear modulus for this steel is 7 shaft. o GPa. Determine the shear stress in the shaft and the angle of twist of the
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 140 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m A Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? 22 % Å O 0.303 Submit Previous Answers...
The 50-mm-diameter solid shaft is made of A-36 steel and is subjected to the distributed and concentrated torsional loadings shown where T = 230 N-m. 2 kNm 600 Nm B 0.8 m 0.6 m Part A Determine the angle of twist at the free end A of the shaft due to these loadings. Use Gst = 75.0 GPa Express your answer to three significant figures and include appropriate units. μΑ ? O= Value Units
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. If the shaft has a diameter of 40 mm. [10 marks] a-Draw the torque diagram. [2 marks] b-Determine the angle of twist of end B with respect to end A. [3 marks] C- Determine the maximum shear stress the shaft is subjected to. [2 marks] d- If the allowable shear stress in the shaft is 300 MPa, and the allowable angle of twist...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
