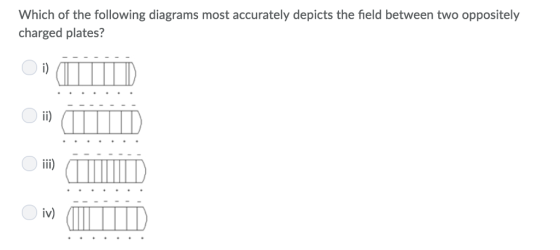

Which of the following diagrams most accurately depicts the field between two oppositely charged plates? 2...

Question

Question

Which of the following diagrams most accurately depicts the field between two oppositely charged plates? 2 i)

science physics

Answer 1

Similar Homework Help Questions

A Proton between Oppositely Charged Plates A uniform electric field exists in the region between two...

A Proton between Oppositely Charged Plates A uniform electric field exists in the region between two oppositely charged parallel plates 1.55 cm apart. A proton is released from rest at the surface of the positively charged plate and strikes the surface of the opposite plate in a time interval 1.56x10-6 s. Part A Find the magnitude of the electric field. Use 1.60x10-19 C for the magnitude of the charge on an electron and 1.67x10-27 kg for the mass of a...
A uniform electric field exists in a region between two oppositely charged plates. An electron is...

A uniform electric field exists in a region between two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate 6.00 cm. away, in a time of 1.80E-08 s. What is the magnitude of the electric field (in newtons/coulomb)?
A uniform electric field exists in a region between two oppositely charged plates. An electron is...

A uniform electric field exists in a region between two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 2.8 cm away, in a time 2.1 times 10^-8 s. What is the speed of the electron as it strikes the second plate? What is the magnitude of the electric field?

A uniform electric field exists in a region between two oppositely charged plates. An electron is...

A uniform electric field exists in a region between two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 1.6 cm away, in a time 4.6 × 10-8 s. (a) What is the speed of the electron as it strikes the second plate? (b) What is the magnitude of the electric field?
A uniform electric field exists in a region between two oppositely charged plates. An electron is...

A uniform electric field exists in a region between two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 2.3 cm away, in a time 4.3 × 10-8 s. (a) What is the speed of the electron as it strikes the second plate? (b) What is the magnitude of the electric field?
A uniform electric field exists in a region between two oppositely charged plates. An electron is...

A uniform electric field exists in a region between two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 1.7 cm away, in a time 8.8 × 10-8 s. (a) What is the speed of the electron as it strikes the second plate? (b) What is the magnitude of the electric field?

A uniform electric field exists in a region between two oppositely charged parallel plates. An electron...

A uniform electric field exists in a region between two oppositely charged parallel plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 2 cm distant from the first, in a time interval of 1.5x10 s. (a) Find the electric field , (b) find the velocity of the electron when it strikes the second plate.
A uniform electric field exists in the region between two oppositely charged plane parallel plates. A...

A uniform electric field exists in the region between two oppositely charged plane parallel plates. A proton is released from rest at the surface of the positively charged plate and strikes the surface of the opposite plate, 1.80 cm distant from the first, in a time interval of 2.30×10−6 s
A uniform electric field exists in the region between two oppositely charged plane parallel plates. A...

A uniform electric field exists in the region between two oppositely charged plane parallel plates. A proton is released from rest at the surface of the positively charged plate and strikes the surface of the opposite plate, 1.80 cm distant from the first, in a time interval of 2.30×10−6 s .

A uniform electric field exists in the region between two oppositely charged plane parallel plates. A...

A uniform electric field exists in the region between two oppositely charged plane parallel plates. A proton is released from rest at the surface of the positively charged plate and strikes the surface of the opposite plate, 1.80 cm distant from the first, in a time interval of 2.30×10−6 s
