R1 彡↓ Ia 3.0 Ω I9 R2 5.0 ΩConsider the following figure. (Assume V = 13 V, R1 = 1.8 Ω, and R2 = 1.5 Ω.) calculate the unknown current what's I 1,I 2,I 3

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

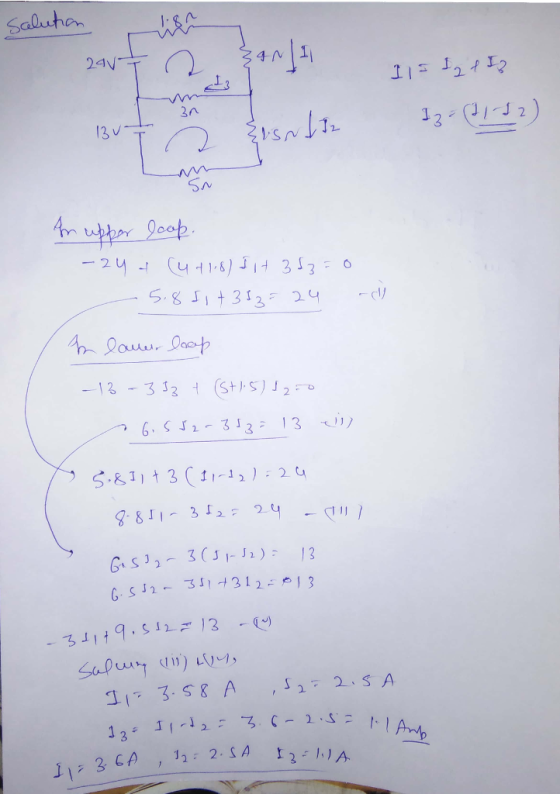

Saluton 24V J 2 SN

0 0
Add a comment
Know the answer?
Add Answer to:
Consider the following figure. (Assume V = 13 V, R1 = 1.8 Ω, and R2 =...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Consider the following figure. (Assume V = 11 V, R1 = 1.9 Ω, and R2 =...

    Consider the following figure. (Assume V = 11 V, R1 = 1.9 Ω, and R2 = 1.2 Ω.) (a) Can the circuit shown above be reduced to a single resistor connected to the batteries? Explain. (b) Calculate each of the unknown currents I1, I2, and I3 for the circuit. (Give the magnitude of the current only.) I1 = A I2 = A I3 = A

  • Consider the following figure. (Assume V = 15 V, R1 = 2.6 Ω, and R2 =1.6Ω)

    Consider the following figure. (Assume V = 15 V, R1 = 2.6 Ω, and R2 =1.6Ω)(a) Can the circuit shown above be reduced to a single resistor connected to the batteries? Explain. (b) Calculate each of the unknown currents 11, I2, and I3 for the circuit. (Give the magnitude of the current only.)

  • 9. 14 points SerCP10 18 PO025 Consider the following figure. (Assume V-11 V, R1 = 1.9...

    9. 14 points SerCP10 18 PO025 Consider the following figure. (Assume V-11 V, R1 = 1.9 n, and R2-1.5 Ω.) Ri 车↓ 3.0 Ω 丯↓ R2 5.0 Ω (a) Can the circuit shown above be reduced to a single resistor connected to the batteries? Explain. No because different currents flow thru each battery (b) Calculate each of the unknown currents Ii. 12, and Ja for the circuit. (Give the magnitude of b 12, and Is for the circuit. (Give the...

  • Consider the following figure. (Assume V-14 V, R1-2.3 Ω, and R2-1.5 Ω.) Ri 24 V 3.0...

    Consider the following figure. (Assume V-14 V, R1-2.3 Ω, and R2-1.5 Ω.) Ri 24 V 3.0 Ry (a) Can the circuit shown above be reduced to a single resistor connected to the batteries? Explain. No, because different currents flow thru each battery Score: 1 out of Comment: (b) Calculate each of the unknown currents 11, 12. and I3 for the circuit. (Give the magnitude of the current only.) 3.3163X -Your response is within 10% of the correct value. This may...

  • Consider the following figure. (Assume V = 11 V, R2 = 1.92, and R2 = 1.4...

    Consider the following figure. (Assume V = 11 V, R2 = 1.92, and R2 = 1.4 1.) R w 24 V 4.09 13 3.0 12 R2 5.0 12 W (a) Can the circuit shown above be reduced to a single resistor connected to the batteries? Explain. No. Some simplification could be made by recognizing that the 1.9 and 4.0 resistors are in series, adding to give a total of 5.9 and the 5.0 and 1.5 resistors form a series combination...

  • In the figure the resistances are R1 = 1.5 Ωand R2 = 3.0 Ω, and...

    In the figure the resistances are R1 = 1.5 Ω and R2 = 3.0 Ω, and the ideal batteries have emfs ε1 = 1.8 V, and ε2 = ε3 = 3.7 V. Whatare the (a) size and (b)direction (up or down) of the current in battery 1, the(c) size and (d) direction of the current in battery 2, and the (e) size and(f) direction of the current in battery 3?(g) What is the potential differenceVa - Vb??

  • Consider the circuit shown in the figure with resistors R1= 4.0 Ω, R2= 3.0 Ω, R3=...

    Consider the circuit shown in the figure with resistors R1= 4.0 Ω, R2= 3.0 Ω, R3= 3.0 Ω, and batteries V1= 2.0 V, V2=1.5 V respectively. What is the potential drop (voltage) across resistor R3?

  • Consider the circuit shown in the figure below. (Assume R1 = 15.5 Ω and R2 =...

    Consider the circuit shown in the figure below. (Assume R1 = 15.5 Ω and R2 = 4.50 Ω.) (a) Find the potential difference between points a and b. V (b) Find the current in the 20.0-Ω resistor. A

  • Consider a circuit with two resistors in parallel. R1=10 Ω , R2=5 Ω . Assume V=3.0V...

    Consider a circuit with two resistors in parallel. R1=10 Ω , R2=5 Ω . Assume V=3.0V Calculate the current throughresistor 1.

  • Consider the circuit shown in the figure below. (Assume R1 = 12.0 Ω and R2 = 7.00 Ω.)

    Consider the circuit shown in the figure below. (Assume R1 = 12.0 Ω and R2 = 7.00 Ω.)(a) Find the potential difference between points a and b. (b) Find the current in the 20.0-Ω resistor.
