The potential at the center of a uniformly charged ring is 47 kV , and 10 cm along the ring axis the potential is 29 kV .

Part A: Find the ring's radius (in cm)

Part B: Find the ring's total charge (in nC)

science physics

Answer 1

Answer #1

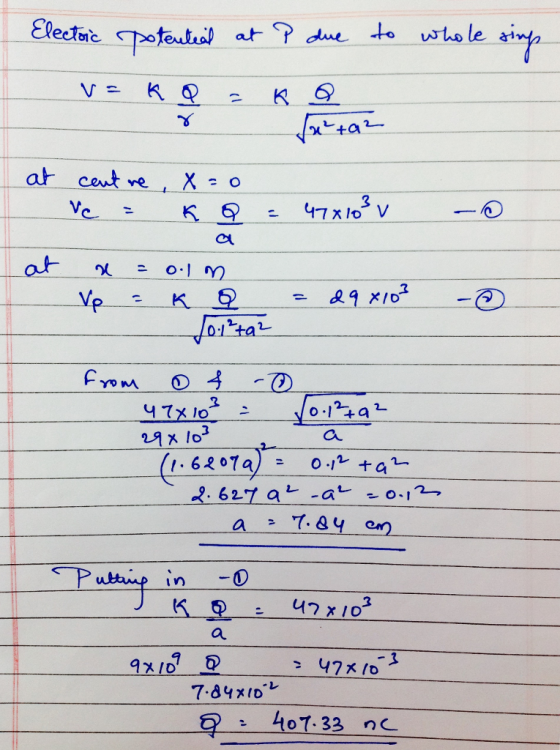

29 x 103 42 x 10 7-84x10レ : 40133 ne
