help please! 3. Find the voltage V of the following circuit using superposition method. + 6...

Question

Question

help please!

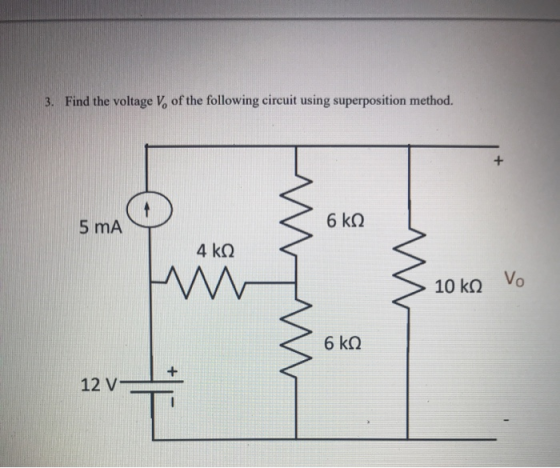

3. Find the voltage V of the following circuit using superposition method. + 6 kQ 5 mA 4 kQ 10 kQ Vo 6 kO 12 V-

science Advanced-Physics

Answer 1

Answer #1

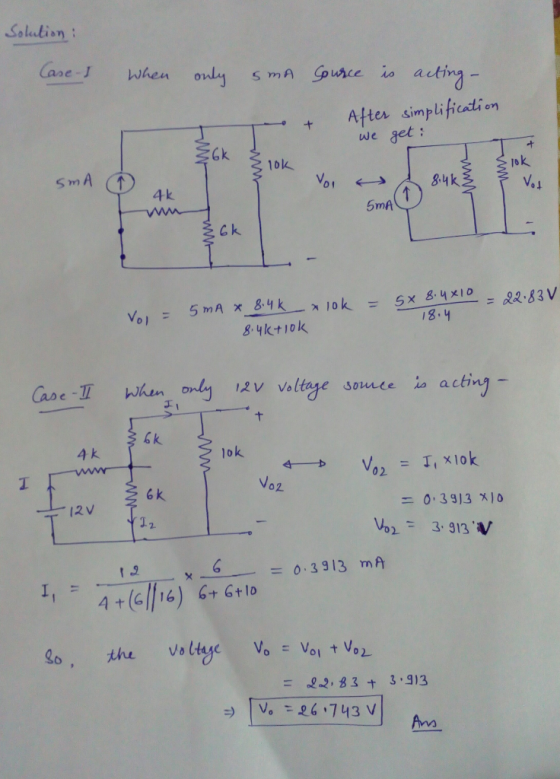

Solution: Cases when only sma Source is acting. After simplification we get: smA o ak 5mA O = 5x 8.4x10 - - 22.83V Vos = 8.4k

Answer 2

Similar Homework Help Questions

4. Use the mesh (loop) analysis to find the voltage V of the following circuit. Vo...

4. Use the mesh (loop) analysis to find the voltage V of the following circuit. Vo 8 kn 2 k0 4 ko 8 kO 2 mA 4 kO 6 V
PROBLEM 4: Using the superposition technique, find the value of the voltage vo in the circuit...

PROBLEM 4: Using the superposition technique, find the value of the voltage vo in the circuit below. 6? 5? 4? 3?
Find V. in the circuit in the figure below using superposition. =3 mA 7 kΩ Ο...

Find V. in the circuit in the figure below using superposition. =3 mA 7 kΩ Ο 4 kg 7 kΩ Ta = 2V I h = 8V 4 ΚΩ 6 kΩ Ι ο Vo with only V, turned on Vo with only V6 turned on 75.6 V with only I, on = V =

1. Using the superposition theorem, calculate the voltage Vo for the circuit below 16 Ω 100...

1. Using the superposition theorem, calculate the voltage Vo for the circuit below 16 Ω 100 mA 40Ω 12 V
Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage...

Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage source alone. b) Find the voltage V": due to the 5mA current source alone. c) Find the total voltage V1 due to both sources. 2002 1002 12 4002 VI 5 mA 3002 www
3. Find V, from following circuit using Thevenin's theorem. 3 kΩ 6 kΩ 3 kΩ '...

3. Find V, from following circuit using Thevenin's theorem. 3 kΩ 6 kΩ 3 kΩ ' 4 mA 12V 12V 4. Find Vo from following circuit using Norton's theorem only. 12V 2 ΚΩ 3 mA ( 4 ΚΩ 4 ΚΩ 12 ΚΩ

ints] Use the principle of superposition to find the voltage v in the circuit shown below....

ints] Use the principle of superposition to find the voltage v in the circuit shown below. 6 (A) 5 (2) 8 (Q) 75 (V) (+ v 20 (O) 12 (Q)
Q Compute Vo in the circuit using superposition. [CO: 05] 2 mA 12 V 2 kn...

Q Compute Vo in the circuit using superposition. [CO: 05] 2 mA 12 V 2 kn 8 mA 3 kn 6kn 1 kn
2. Use superposition to find lo in the circuit in Fig. 7.2 12 V 0 6...

2. Use superposition to find lo in the circuit in Fig. 7.2 12 V 0 6 mA 12 V (+ Fig. 7.2

5, (10pt.) For the following circuit, use superposition method to determine current labeled i1 and voltage...

5, (10pt.) For the following circuit, use superposition method to determine current labeled i1 and voltage labeled v. (*You need to show steps and result(s) with unit(s)) 1(2 7Ω 6 A 4 A 2Ω 0.4i1
