Question

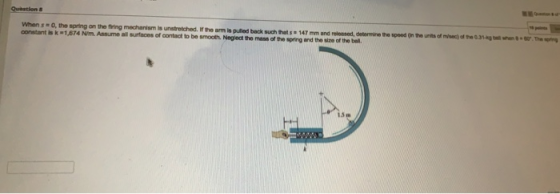

Quation When so, the spring on the firing mechanism is unstretched. If the armis pulled back such that 147 mm and released de
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

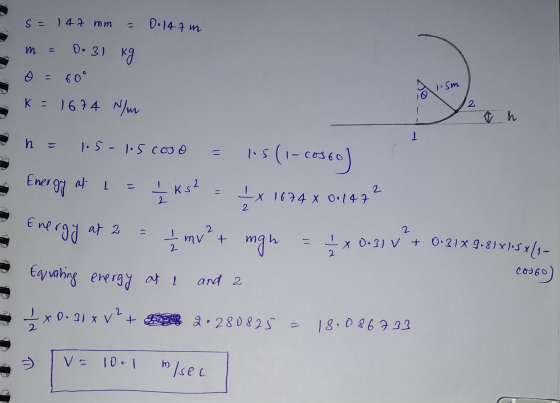

s = 147 mm = = 0.147m m = 0.31 kg o = 60° K = 1674 N/m 1.5m o 2 1 h = 1.5-1.5 COJO 11 l.s (1-coso cosoo) Ix 1674 X 0.147 Ener

0 0
Add a comment
Know the answer?
Add Answer to:
Quation When so, the spring on the firing mechanism is unstretched. If the armis pulled back...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Please show your work! 1. When s = 0, the spring firing mechanism is unstretched. If...

    Please show your work! 1. When s = 0, the spring firing mechanism is unstretched. If the arm is pulled back such that s = 100 [mm] and released, determine the maximum mass of a ball that would reach 0 = 180° without leaving the track. Assume all surfaces of contact to be smooth. Neglect the mass of the spring and the size of the ball. k = 1500 N/m

  • Part A When s 0, the spring on the firing mechanism is unstretched. The arm is...

    Part A When s 0, the spring on the firing mechanism is unstretched. The arm is pulled back such that s 100 mm and released. Assume all surfaces of contact to be smooth. Neglect the mass of the spring and the size of the ball. (Figure 1) Determine the speed of the 0.65-kg ball when ?-60° Express your answer to three significant figures and include the appropriate units. u= 1 Value Units Submit Figure 1 of 1 Part B Determine...

  • A spring has an unstretched length of 15 cm . When an 85 g ball is...

    A spring has an unstretched length of 15 cm . When an 85 g ball is hung from it, the length increases by 3.0 cm . Then the ball is pulled down another 3.0 cm and released. Part A) What is the spring constant of the spring? Express your answer in newtons per meter. Part B )What is the period of the oscillation? Express your answer in seconds.

  • A spring has an unstretched length of 12 cm. When an 80 g ball is hung...

    A spring has an unstretched length of 12 cm. When an 80 g ball is hung from it, the length increases by 4.0 cm. Then the ball is pulled down another 4.0 cm and released. Draw a position-versus-time graph showing the motion of the ball for three cycles of the oscillation. Let the equilibrium position of the ball be y=0. Be sure to include appropriate units on the axes so that the period and the amplitude of the motion can...

  • A block is attached to one end of a spring so that it can bounce back...

    A block is attached to one end of a spring so that it can bounce back and forth on a horizontal frictionless surface. The block is pulled a distance of 0.150 m away from equilibrium and released. When the block is 9.00 cm away from equilibrium, it is traveling with a speed of 0.800 m/s. If the spring constant of the spring is 60.0 N/m, what is the mass of the block?

  • Part A A spring has an unstretched length of 15 cm. When an 85 g ball...

    Part A A spring has an unstretched length of 15 cm. When an 85 g ball is hung from it, the length increases by 7.0 cm. Then the ball is pulled down another 7.0 cm and released. What is the spring constant of the spring? Express your answer in newtons per meter. N/m Submit Request Answer Part B What is the period of the oscillation? Express your answer in seconds. Submit Request Answer Provide Feedback

  • Review 1 Constants Part A A spring has an unstretched length of 14 cm. When an...

    Review 1 Constants Part A A spring has an unstretched length of 14 cm. When an 84 g ball is hung from it, the length increases by 7.0 cm. Then the ball is pulled down another 7.0 cm and released What is the spring constant of the spring? Express your answer using two significant figures k= N/m Submit Part B What is the period of the oscillation? Express your answer using two significant figures T- Submit Request Answer

  • Review The spring has a stiffness k = 50 N/m and an unstretched length of 0.3...

    Review The spring has a stiffness k = 50 N/m and an unstretched length of 0.3 m It is attached to the 2.8-kg smooth collar and the collar is released from rest at A (@= 0°). The motion occurs in the horizontal plane. Neglect the size of the collar. (Figure 1) Part A Determine the speed of the collar when = 60° Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 >...

  • NO QUESTIONS DURING THE EXAM! e collar of negligible size has a mass of 0.25 kg and is attached to a spring having...

    NO QUESTIONS DURING THE EXAM! e collar of negligible size has a mass of 0.25 kg and is attached to a spring having an unstretched and travels along (25 points) Th 9) length of 100 mm and an elastic constant of k 150 N/m. If the collar is released from rest at a the smooth guide as shown in the figure, determine its speed just before it strikes B Take g 10 m/s? 400 mm 200 mm NO QUESTIONS DURING...

  • Part A The collar A, having a mass of 0.75 kg is attached to a spring...

    Part A The collar A, having a mass of 0.75 kg is attached to a spring having a stiffness of k = 300 N/m. When rod BC rotates about the vertical axis, the collar slides outward along the smooth rod DE The spring is unstretched when s 0. Neglect the size of the collar. (Figure 1) Determine the constant speed of the collar in order that s 100 mm, Express your answer to three significant figures and include the appropriate...
