Question

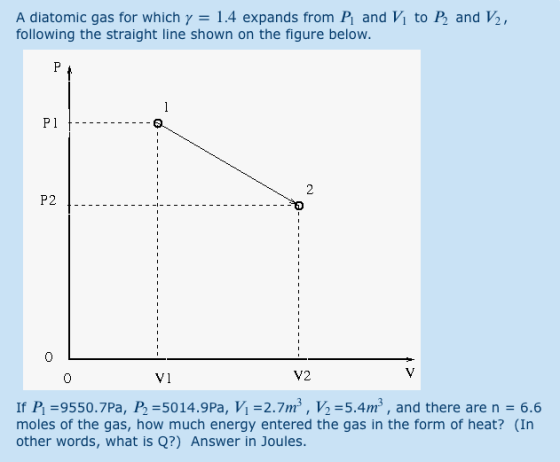

A diatomic gas for which y = 1.4 expands from Pi and Vi to P. and V2. following the straight line shown on the figure below.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

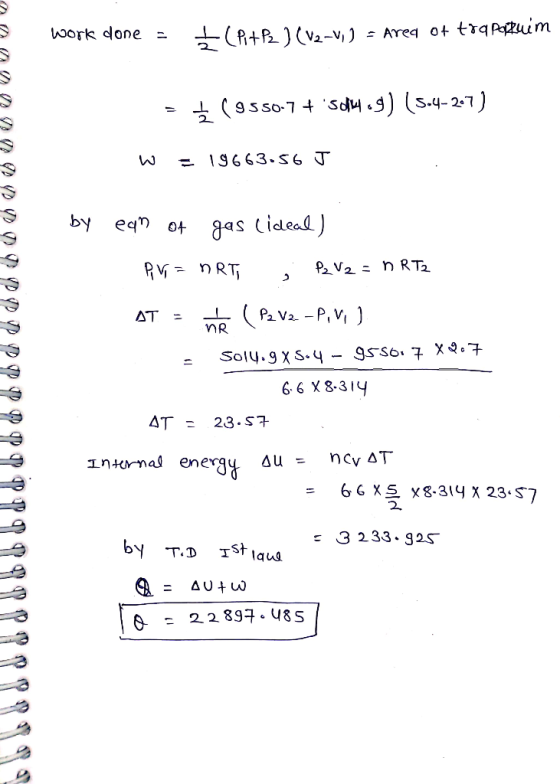

work done = + (Pi+P2) (V2-V) - Area of toq potuim maana = = ( 9550-7 + 50f4.9) (5.4-27) w = 19663.56 J by ean of gas lideal)

0 0
Add a comment
Know the answer?
Add Answer to:
A diatomic gas for which y = 1.4 expands from Pi and Vi to P. and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A gas expands from P1 and И to P2 and 2, following the straight line shown...

    A gas expands from P1 and И to P2 and 2, following the straight line shown on the figure below 2 P2 0 Vl V2 If P1-9480 .6Pa, P-5855·ОРа, И-2.0m3, and ½=5.9㎡, how much work is done by the gas during this expansion? Answer in Joules

  • 2 moles of compressed air (diatomic gas) in a cylinder under the initial condition T1=573K p1=500kPa....

    2 moles of compressed air (diatomic gas) in a cylinder under the initial condition T1=573K p1=500kPa. Found v1=0.019m^3 but can not remember then how to find V2. I think that it has something to do with T1=T2 condition then P2 can be found.... but stuck on how to proceed so with FULL written explanations with working would be much appreciated! All question info on practice exam below - note ISOTHERMAL EXPANSION. for part ii which after an explanation first. Two...

  • There are n moles of an ideal gas at initial volume Vi and initial temperature Ti....

    There are n moles of an ideal gas at initial volume Vi and initial temperature Ti. The gas undergoes an external heating in which an amount of energy Q enters the gas in the form of heat. The gas expands isobarically to a new volume ½ If Q=2x10), n=13.8mols, T1-201.8K, И = 1.4m3, and ½= 1.9m3, what work done by the gas during this expansion? Answer in Joules. Answer:

  • A diatomic ideal gas expands from a volume of VA-1.00 mºto V, - 3.00 m along...

    A diatomic ideal gas expands from a volume of VA-1.00 mºto V, - 3.00 m along the path shown in the figure below. The initial pressure is PA-2.00 x 10 Pa and there are 67.3 mol of gas. P(10%Pa) 4.00 8.00 2.00 1.00 1.00 2.00 3.00 100V (m) (a) Calculate the work done on the gas during this process. (b) Calculate the change in temperature of the gas. (c) Calculate the change in internal energy of the gas. (Take the...

  • An ideal gas is isochorically heated, moving from point 1 to point 2 according to the...

    An ideal gas is isochorically heated, moving from point 1 to point 2 according to the figure below. P2 P1 0 If the change in internal energy Δυ=517.11, initial pressure Pi=7616.9Pa, final pressure P-10860·7Pa, and n=55.0mols, how much energy Q is added to the system in the form of heat? Answer in Joules

  • See diagram 4. 22.8 moles of a diatomic ideal gas undergo three steps: A to B...

    See diagram 4. 22.8 moles of a diatomic ideal gas undergo three steps: A to B is an isobaric (constant pressure P1 = 5.25x106 Pascal) expansion from volume V1 = 0.0248 m3 to V2 = 0.956 m3. B to C is isochoric (constant volume) C to A is isothermal (constant T). During the isobaric expansion from A to B: find Q, the heat transferred, in Joules. Give your answer in scientific notation. NOTE: A positive sign means heat has been...

  • 10 moles of an ideal gas expands irreversibly against an unknown constant external pres- sure, Pert,...

    10 moles of an ideal gas expands irreversibly against an unknown constant external pres- sure, Pert, from an initial volume Vİ-1 L to a final volume ½ 11 L. In the process, the temperature of the gas falls from T350 K to T2 250 K, and it absorbs heat q+7 L atm from the surroundings. (a) What is the external pressure, Pert (in atm)? [Note: this is an ideal gas, so its internal energy depends only on its temperature.] (b)...

  • Constants Calculate the total work done by the gas in the process. Express your answer to...

    Constants Calculate the total work done by the gas in the process. Express your answer to two significant figures and include the appropriate units. Consider the following two-step process. Heat allowed to flow out of an ideal gas at constant volume so that its pressure drops from P = 2.9 atm to P2 = 1.3 atm. Then the gas expands at constant pressure, from a volume of V1 = 6.0 L to V2 = 9.3 L , where the temperature...

  • Now consider a more standard process: an isothermal expansion where the gas expands at ?=273K from...

    Now consider a more standard process: an isothermal expansion where the gas expands at ?=273K from ?i=1m3 to ?f=2m3. The initial pressure is ?i=1atm. E. In problem 1 of the week 2 written homework, the area under the PV diagram for this process is given by ??B? ln(V2/V1). Use this to compute the work done on the gas during this process. F. Compute the change in Gibbs free energy of the gas during this isothermal expansion. (Hint: How much heat...

  • someone please help me with this. help me to solve where i went wrong. and please...

    someone please help me with this. help me to solve where i went wrong. and please show all steps and explain every step. a more clear picture i uploaded the same picture i hope u can understand italso these notes 11:47 00 in the made DU - . F -BUT Sez(-BUT") (P = BTV 7 ( 5 . lavity, energy, Gibbs I re-de the free energy quiz - Going over Quiz PV=const. Ideal Gas it 7=const BB p=constant srT3V =...
