Question

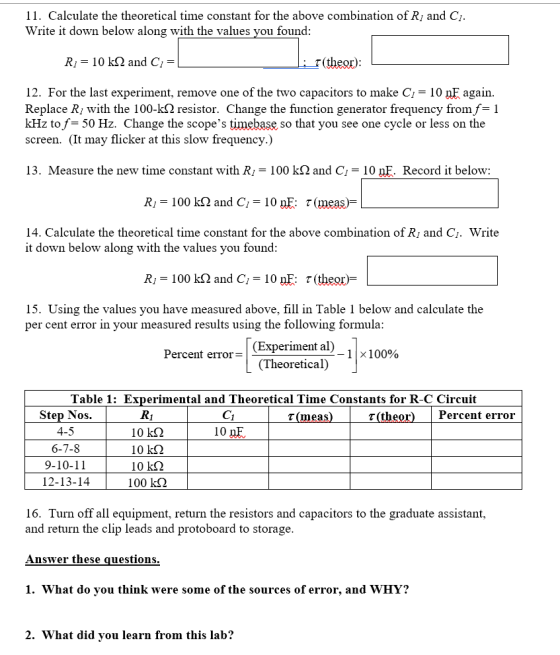

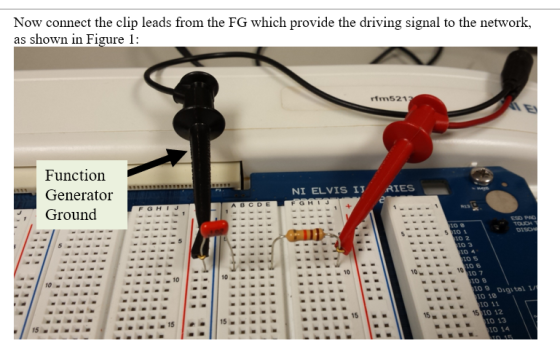

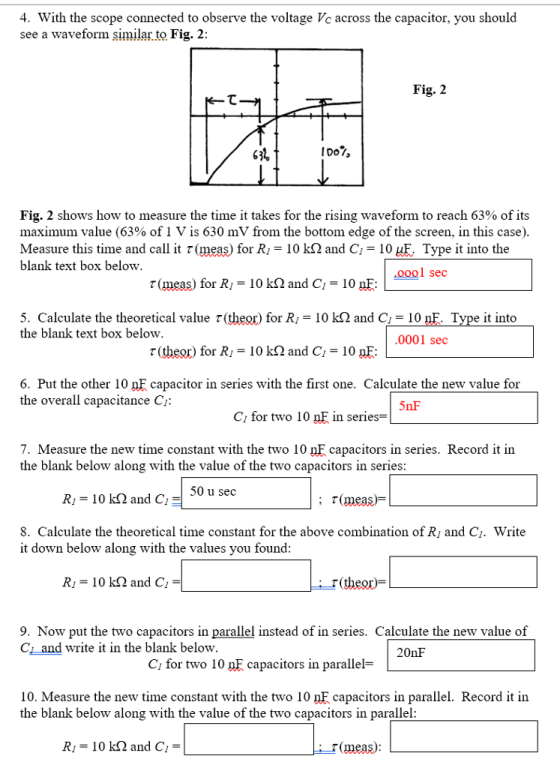

Most of the tutorial was how to use the equipment. The last part was the lab, any help would be appreciated, please number your steps according to you question.

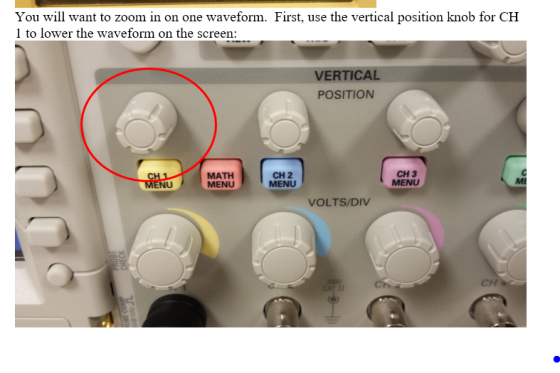

To construct and analyze a pulse circuit with a resistor and capacitor.You will want to zoom in on one waveform. First, use the vertical position knob for CH 1 to lower the waveform on the screen VERTICAL POSITION MATH MENU CH 2 MENU CH 3 MENU Mi VOLTS/DIV CH
