Homework Answers
Please
feel free to ask your doubts in the comment section if any and
please like the solution.
Add Answer to:

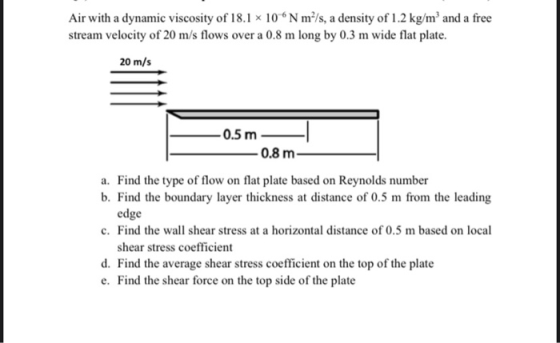

Air with a dynamic viscosity of 18.1 x 10 N m/s, a density of 1.2 kg/m'...
