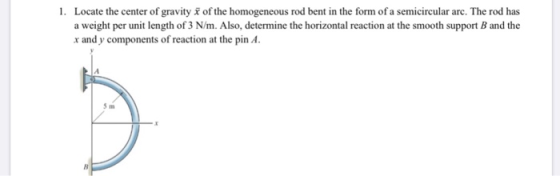

1. Locate the center of gravity of the homogeneous rod bent in the form of a...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

ğ = 5 simo ..- ñ = 5 cosa ; a=sñ de SAL Tol 5 Coso x5 do le 5 do x= 25 [sino] / H= 5 [1 - (-1)] : 10 Are length = ar = 5* Wag thumbs up thank you!!!

Answer 2

Similar Homework Help Questions

Part A Locate the center of gravity of the homogeneous rod. The rod has a weight...

Part A Locate the center of gravity of the homogeneous rod. The rod has a weight of w- 2.0 lb/ft. Also, compute the r, y, z components of reaction at the fixed support A. (Figure 1) Locate the center of gravity of the Express your answers using three significant figures separated by commas us rod -, y, z 1.2207780778 vious Answer Correct Part B Determine the x, y, z components of reaction force at the fixed support A Express your...
A thin, homogeneous wire is bent to form the perimeter of the figure indicated. Locate the...

A thin, homogeneous wire is bent to form the perimeter of the figure indicated. Locate the center of gravity of the wire figure thus formed 82 mm 32 mm 52mm
0.83 points Athin, homogeneous wire is bent to form the perimeter of the figure indicated Locate...

0.83 points Athin, homogeneous wire is bent to form the perimeter of the figure indicated Locate the center of gravity of the wire figure thus formed if h= 32.00 mm Round the final answer to two decimal places Y 2.84 mm 18 38 mm Hints References Resources

Part A Locate the center of gravity of the volume. The material is homogeneous. Take a 6 m (Figur...

Part A Locate the center of gravity of the volume. The material is homogeneous. Take a 6 m (Figure 1) Express your answer to three significant figures and include the appropriate units Value Units Figure < 1011 Submit Request Answer Provide Feedback Part A Locate the center of gravity of the volume. The material is homogeneous. Take a 6 m (Figure 1) Express your answer to three significant figures and include the appropriate units Value Units Figure
Radius of arc -4 in. 6 in 45 1 Free body diagram Bs By W, weight of entire wire acts through the ...

Radius of arc -4 in. 6 in 45 1 Free body diagram Bs By W, weight of entire wire acts through the center of gravity (a distance X from the origin of coordinates at B) A wire, ABCD, can rotate freely about a pin support at B. Determine the length which the wire will remain horizontal Radius of arc -4 in. 6 in 45 1 Free body diagram Bs By W, weight of entire wire acts through the center of...
The homogeneous wire ABCD is bent as shown and is supported by a pin at B....

The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Determine the length n for which portion BC of the wire is horizontal m = 25 cm r = 20 cm 0 = 55° Hint: 25 b. 29.25 cm a 29.85 cm 30.05 cm 29,45 cm e 29.05 cm of 29.65 cm

The bent rod is supported at A, B, andC by smooth journal bearings.A)Compute the...

The bent rod is supported at A, B, andC by smooth journal bearings.A)Compute the x, y, z components of reaction at the bearing A if the rod is subjected to forces F1 = 500 lb and F2 = 250 lb.F1 lies in the y?z plane. The bearings are in proper alignment and exert only force reactions on the rod.B)Compute the x, y, z components of reaction at the bearing BC)Compute the x,y,z components of reaction at the bearing C.
The bent rod is supported at A, B, and C by smooth journal bearings

The bent rod is supported at A, B, and C by smooth journal bearings. Determine the components of reaction at the bearings if the rod is subjected to the force F=650 N. The bearings are in proper alignment and exert only force reactions on the rod.
The bent rod is supported at A, B, and C by smooth journal bearings

The bent rod is supported at A, B, and C by smooth journal bearings. Determine the components of reaction at the bearings if the rod is subjected to the force F=650 N. The bearings are in proper alignment and exert only force reactions on the rod.

The bent rod is supported at A, B, and C by smooth journal bearings

The bent rod is supported at A, B, and C by smooth journal bearings. Determine the components of reaction at the bearings if the rod is subjected to the force F=650 N. The bearings are in proper alignment and exert only force reactions on the rod.
