Homework Answers
Add Answer to:

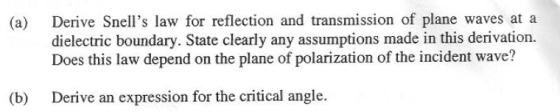

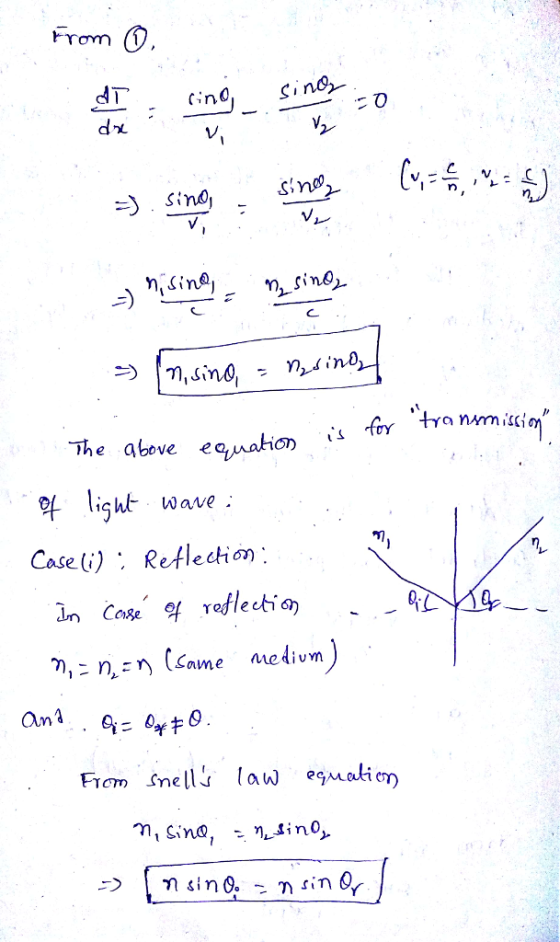

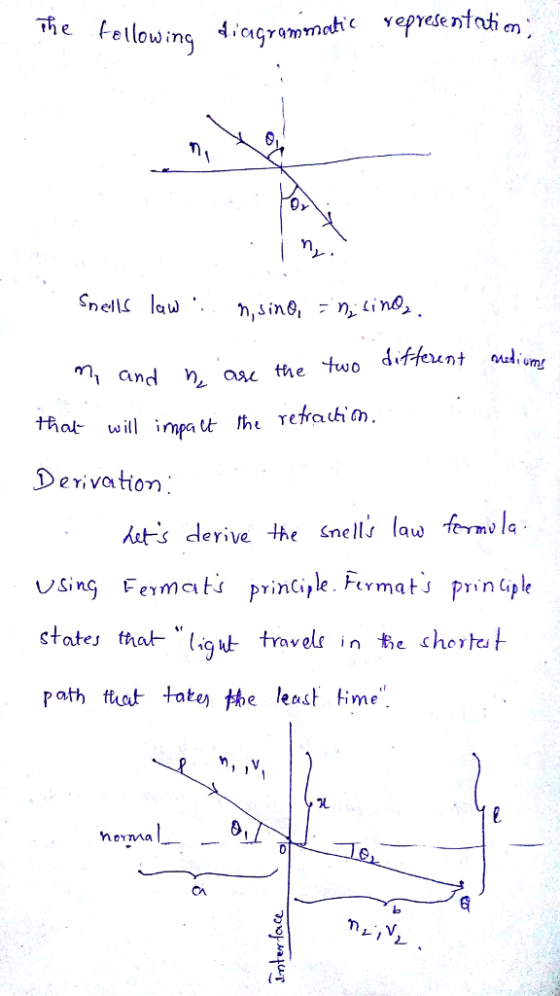

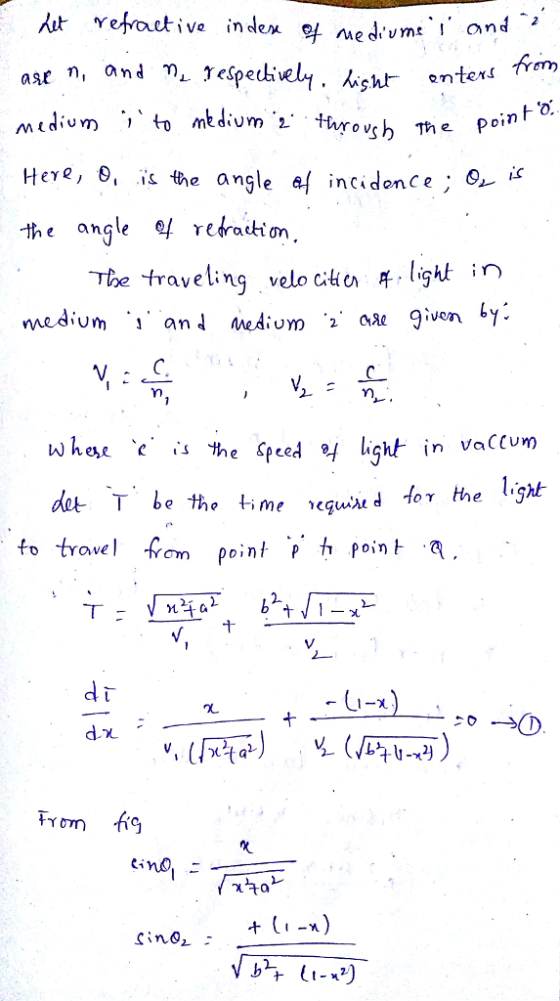

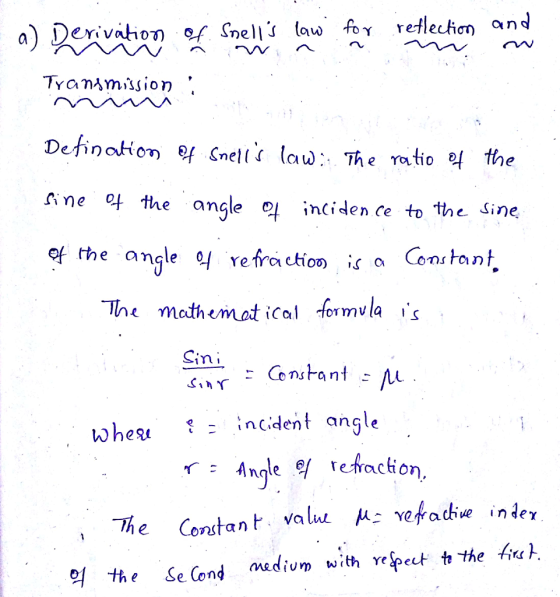

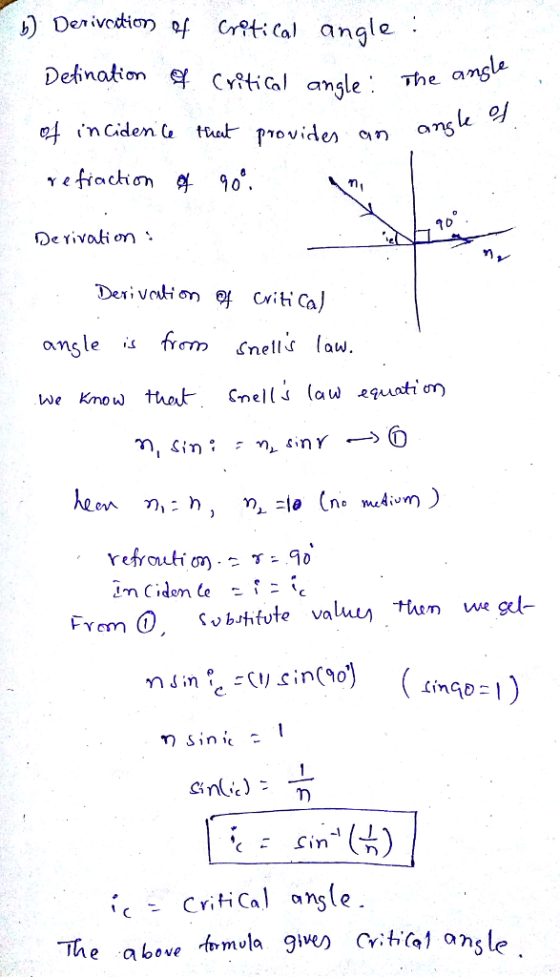

(a) Derive Snell's law for reflection and transmission of plane waves at a dielectric boundary. State...
6. Write the phasor expressions for the incident waves described in problems 4 and 5 if the wave ...
6. Write the phasor expressions for the incident waves described
in problems 4 and 5 if the wave has a frequency of 100 MHz.
A perpendicularly polarized wave has an angle of incidence of 30 degrees. The dielectric boundary between air and a medium with relative dielectric permittivity of 4 is at z 4. 0. a. Find the angle of the refracted wave b. Find the reflection coefficient If the wave in problem 4 had parallel polarization, what would be...
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θο, where d A)/(...
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θο, where d A)/(4 Ver) and λο is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration of the problem,...
please show clear steps A plane wave is incident on a dielectric slab of permittivity er and thickness d at an inciden...
please show clear steps
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θ0, where d λο/(4vRr) and X0 is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration...
mainly just looking for clarification of part c) a= cos theta t / cos theta i , b=sin theta i/ sin theta t 5. A plane electrom netic wave is obliquely incident upon an infinite plane boundary two die...
mainly just looking for clarification of part c)
a= cos theta t / cos theta i , b=sin theta i/ sin theta t
5. A plane electrom netic wave is obliquely incident upon an infinite plane boundary two dielectrics with refractive indices, permittivities and permeabilities m. ει, μι and respectively. In terms of the angles of incidence, O, and refraction, e, define n2-E2, μ2 sin θ sin6, (a) State succinctly what assumptions have been made about the materials to write...
(a) When discussing reflection and refraction of an electromagnetic interface between two materials, explain what is...
(a) When discussing reflection and refraction of an electromagnetic interface between two materials, explain what is meant by the "Plane of Incidence". Go on to describe the two polarisation states of light with respect to the this plane. Include a suitable diagram in your answer 6. wave at an [6] (b) State the four boundary conditions that must be satisfied by dielectric interface an electromagnetic [6] wave incident on a (c) Consider a beam of light polarised parallel to the...
[3] A uniform plane electromagnetic wave (UPEMW) propagating in a lossless nonmagnetic dielectric half-space medium with...
[3] A uniform plane electromagnetic wave (UPEMW) propagating in a lossless nonmagnetic dielectric half-space medium with εr = 16 is incident obliquely at the interface plane with another lossless nonmagnetic half-space with εr = 4. The two dielectric half-spaces are in intimate contact with each other at the interface plane z = 0. The incident UPEMW is polarized in the plane of incidence. The angle of incidence is 60° to the normal to the interface plane. Find the fraction of...
2. 24 pts. Boundary conditions for EM wave reflection and transmission. The boundary conditions i...
2. 24 pts. Boundary conditions for EM wave reflection and transmission. The boundary conditions incident on a boundary can be written as: conditions on electromagnetic waves (ii) E- E0 (ii) B-B: =0 (a) 10 pts. Corresponding Maxwell Equations. For each equation (i, ii, iii, iv) above write the corresponding Maxwell equation in BOTH operator form AND in integral form from which the boundary condition can be derived. What terms in Maxwell's equations are assumed to be zero in the above?...
kr ky (4) A plane EM wave with frequency o propagates in vacuum and approaches a...
kr ky (4) A plane EM wave with frequency o propagates in vacuum and approaches a dielectric interface (permittivity &, permeability u and refractive index n) at an angle of incidence Oi with its electric field parallel to the plane of incidence. If the incident E and B fields are of the form E(r, t) = Eel(k.r-wt) and B(r,t) = -K XE 'By (a) Write the boundary conditions satisfied by the fields at the interface (b) Derive the reflection and...
4. A perpendicularly polarized wave has an angle of incidence of 30 degrees. thle drereltle boundary...
4. A perpendicularly polarized wave has an angle of incidence of 30 degrees. thle drereltle boundary between air and a medium with relative dielectric permittivity of 4 is at z-0. a. b. Find the angle of the refracted wave Find the reflection coefficient 5. If the wave in problem 4 had parallel polarization, what would be the Brewster angle? 6. Write the phasor expressions for the incident waves described in problems 4 and 5 if the wave has a frequency...
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and...
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients. Does a Brewster angle exist for this case where the reflection coefficient vanishes for a particular angle of incidence? Show all necessary illustration, and assumptions made.
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients....
6. Write the phasor expressions for the incident waves described
in problems 4 and 5 if the wave has a frequency of 100 MHz.
A perpendicularly polarized wave has an angle of incidence of 30 degrees. The dielectric boundary between air and a medium with relative dielectric permittivity of 4 is at z 4. 0. a. Find the angle of the refracted wave b. Find the reflection coefficient If the wave in problem 4 had parallel polarization, what would be...
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θο, where d A)/(4 Ver) and λο is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration of the problem,...
please show clear steps
A plane wave is incident on a dielectric slab of permittivity er and thickness d at an incidence angle θ0, where d λο/(4vRr) and X0 is the free-space wavelength of the incident wave, as shown in the accompanying figure. If free-space exists on both sides of the slab, find the reflection coefficient of the wave reflected from the front of the slab. Assume normal incidence now. Under what conditions the reflection is minimum? Show an illustration...
mainly just looking for clarification of part c)
a= cos theta t / cos theta i , b=sin theta i/ sin theta t
5. A plane electrom netic wave is obliquely incident upon an infinite plane boundary two dielectrics with refractive indices, permittivities and permeabilities m. ει, μι and respectively. In terms of the angles of incidence, O, and refraction, e, define n2-E2, μ2 sin θ sin6, (a) State succinctly what assumptions have been made about the materials to write...
(a) When discussing reflection and refraction of an electromagnetic interface between two materials, explain what is meant by the "Plane of Incidence". Go on to describe the two polarisation states of light with respect to the this plane. Include a suitable diagram in your answer 6. wave at an [6] (b) State the four boundary conditions that must be satisfied by dielectric interface an electromagnetic [6] wave incident on a (c) Consider a beam of light polarised parallel to the...
[3] A uniform plane electromagnetic wave (UPEMW) propagating in a lossless nonmagnetic dielectric half-space medium with εr = 16 is incident obliquely at the interface plane with another lossless nonmagnetic half-space with εr = 4. The two dielectric half-spaces are in intimate contact with each other at the interface plane z = 0. The incident UPEMW is polarized in the plane of incidence. The angle of incidence is 60° to the normal to the interface plane. Find the fraction of...
2. 24 pts. Boundary conditions for EM wave reflection and transmission. The boundary conditions incident on a boundary can be written as: conditions on electromagnetic waves (ii) E- E0 (ii) B-B: =0 (a) 10 pts. Corresponding Maxwell Equations. For each equation (i, ii, iii, iv) above write the corresponding Maxwell equation in BOTH operator form AND in integral form from which the boundary condition can be derived. What terms in Maxwell's equations are assumed to be zero in the above?...
kr ky (4) A plane EM wave with frequency o propagates in vacuum and approaches a dielectric interface (permittivity &, permeability u and refractive index n) at an angle of incidence Oi with its electric field parallel to the plane of incidence. If the incident E and B fields are of the form E(r, t) = Eel(k.r-wt) and B(r,t) = -K XE 'By (a) Write the boundary conditions satisfied by the fields at the interface (b) Derive the reflection and...
4. A perpendicularly polarized wave has an angle of incidence of 30 degrees. thle drereltle boundary between air and a medium with relative dielectric permittivity of 4 is at z-0. a. b. Find the angle of the refracted wave Find the reflection coefficient 5. If the wave in problem 4 had parallel polarization, what would be the Brewster angle? 6. Write the phasor expressions for the incident waves described in problems 4 and 5 if the wave has a frequency...
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients. Does a Brewster angle exist for this case where the reflection coefficient vanishes for a particular angle of incidence? Show all necessary illustration, and assumptions made.
A parallel polarized plane wave is obliquely incident from free-space onto a magnetic material with permittivity eo and permeability o Find the reflection and transmission co- efficients....
