Homework Answers
Add Answer to:

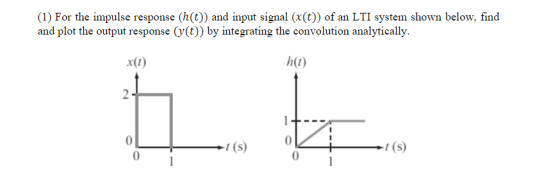

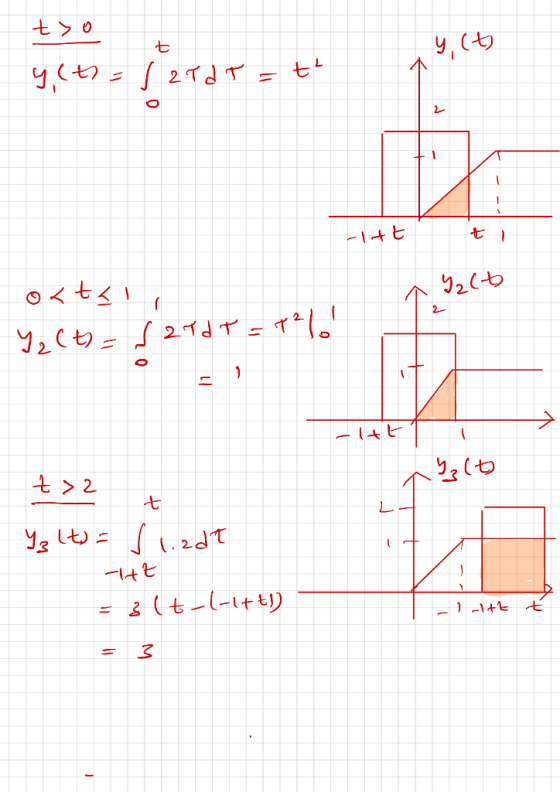

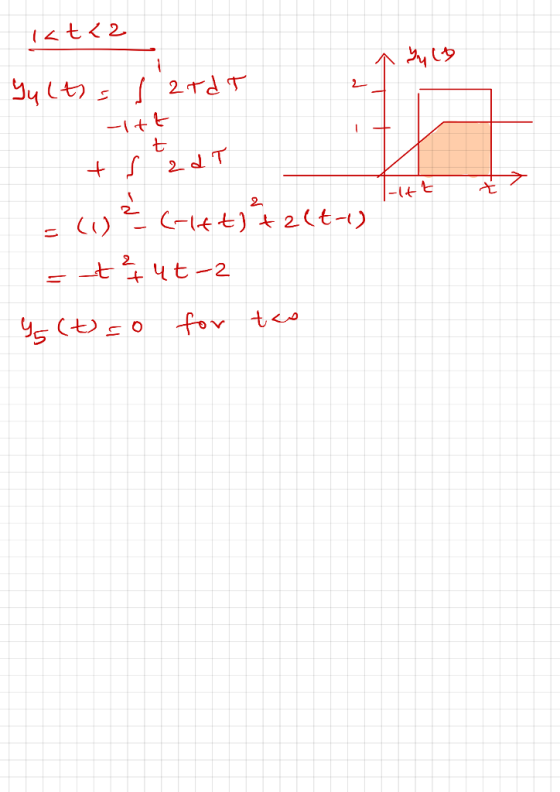

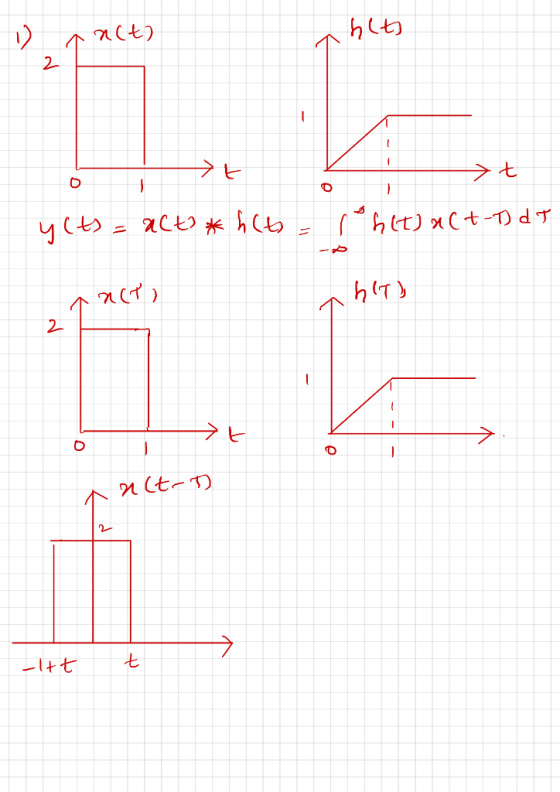

(1) For the impulse response (h(t)) and input signal (x(t)) of an LTI system shown below,...
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n)...
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...
3-(10 points) Consider a C-T. LTI system given below X(t) - h(t) y(t) The impulse response...
3-(10 points) Consider a C-T. LTI system given below X(t) - h(t) y(t) The impulse response is h(t)=sinc(200t). We apply an input signal x(t)=sinc(100t) to produce the output y(t). Find and plot Y(m). Find y(t).
Let x(t) = tu(t) be the input to a LTI with impulse response h(t) = t...
Let x(t) = tu(t) be the input to a LTI with impulse response h(t) = t 2u(t). Find the output y(t) using convolution
Consider an LTI system with the impulse response h(t) = e- . Is the system casual?...
Consider an LTI system with the impulse response h(t) = e- . Is the system casual? Explain. Find and plot the output s(t) given that the system input is x(t) = u(t). Note that s(t) in this case is commonly known as the step response of the system. If the input is x(t) = u(t)-u(t-T). Express the output y(t) as a function of s(t). Also, explicitly write the output y(t) as a function of t. a) b) c)
Consider the LTI system with input ??(??) = ?? ?????(??) and the impulse response ?(??) =...
Consider the LTI system with input ??(??) = ?? ?????(??) and the
impulse response ?(??) = ?? ?2????(??). A. (3 points) Determine
??(??) and ??(??) and the ROCs B. (3 points) Using the
convolutional property of the Laplace transform, determine ??(??),
the Laplace transform of the output, ??(??) C. (3 points) From the
answer of part B, find ??(??)
9 points) Consider the LTI system with input x(t)eu(t) and the impulse response h(t)-e-2u(t) A. 3 points) Determine X(s) and H(s)...
A system has an input, x(t) and an impulse response, h(t). Using the convolution integral, find...
A system has an input, x(t) and an impulse response, h(t). Using
the convolution integral,
find and plot the system output, y(t), for the combination given
below.
x(t) is P3.2(e) and h(t) is P3.2(f).
1/2 cycle of 2 cos at -2. (e)
The unit impulse response and the input to an LTI system are given by: h(t) u(t)...
The unit impulse response and the input to an LTI system are given by: h(t) u(t) - u(t - 4) x(t) e2[u(t)-u(t - 4)] x(t) 1 y(t) h(t) 1. Determine the output signal, i.e.y(t), you may use any method. 2. Is this system memoryless? Why? 3. Is this system causal? Why? 4. Is this system BIBO stable? Why?
2.7.5 The impulse response of a continuous-time LTI system is given by h(t) = f(t) -...
2.7.5 The impulse response of a continuous-time LTI system is given by h(t) = f(t) - et u(t). (a) What is the frequency response H (w) of this system? (b) Find and sketch H(w). (c) Is this a lowpass, bandpass, or highpass filter, or none of those? 2.7.6 The impulse response of a continuous-time LTI system is given by h(t) = S(t – 2). (This is a delay of 2.) (a) What is the frequency response H (w) of this...
SIGNALS and SYSTEMS HOMEWORK-IV 1. Let X(t) be the input to an LTI system with unit...
SIGNALS and SYSTEMS HOMEWORK-IV 1. Let X(t) be the input to an LTI system with unit impulse response h(t), where x(t) = e-tu(t) h(t) = u(t -3). Determine and plot the output y(t) = x(t) *h(t). Both analytically and graphical method. (25 p)
A causal LTI system yields the following input output relationship. Find h(t), the impulse response of...
A causal LTI system yields the following input output relationship. Find h(t), the impulse response of the system. (Hint: Try first to determine the output when the input is u(t)) a(t) y(t) LTT →t 2 2 Figure 1: An input-output pair
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...
3-(10 points) Consider a C-T. LTI system given below X(t) - h(t) y(t) The impulse response is h(t)=sinc(200t). We apply an input signal x(t)=sinc(100t) to produce the output y(t). Find and plot Y(m). Find y(t).
Consider an LTI system with the impulse response h(t) = e- . Is the system casual? Explain. Find and plot the output s(t) given that the system input is x(t) = u(t). Note that s(t) in this case is commonly known as the step response of the system. If the input is x(t) = u(t)-u(t-T). Express the output y(t) as a function of s(t). Also, explicitly write the output y(t) as a function of t. a) b) c)
Consider the LTI system with input ??(??) = ?? ?????(??) and the
impulse response ?(??) = ?? ?2????(??). A. (3 points) Determine
??(??) and ??(??) and the ROCs B. (3 points) Using the
convolutional property of the Laplace transform, determine ??(??),
the Laplace transform of the output, ??(??) C. (3 points) From the
answer of part B, find ??(??)
9 points) Consider the LTI system with input x(t)eu(t) and the impulse response h(t)-e-2u(t) A. 3 points) Determine X(s) and H(s)...
A system has an input, x(t) and an impulse response, h(t). Using
the convolution integral,
find and plot the system output, y(t), for the combination given
below.
x(t) is P3.2(e) and h(t) is P3.2(f).
1/2 cycle of 2 cos at -2. (e)
The unit impulse response and the input to an LTI system are given by: h(t) u(t) - u(t - 4) x(t) e2[u(t)-u(t - 4)] x(t) 1 y(t) h(t) 1. Determine the output signal, i.e.y(t), you may use any method. 2. Is this system memoryless? Why? 3. Is this system causal? Why? 4. Is this system BIBO stable? Why?
2.7.5 The impulse response of a continuous-time LTI system is given by h(t) = f(t) - et u(t). (a) What is the frequency response H (w) of this system? (b) Find and sketch H(w). (c) Is this a lowpass, bandpass, or highpass filter, or none of those? 2.7.6 The impulse response of a continuous-time LTI system is given by h(t) = S(t – 2). (This is a delay of 2.) (a) What is the frequency response H (w) of this...
SIGNALS and SYSTEMS HOMEWORK-IV 1. Let X(t) be the input to an LTI system with unit impulse response h(t), where x(t) = e-tu(t) h(t) = u(t -3). Determine and plot the output y(t) = x(t) *h(t). Both analytically and graphical method. (25 p)
A causal LTI system yields the following input output relationship. Find h(t), the impulse response of the system. (Hint: Try first to determine the output when the input is u(t)) a(t) y(t) LTT →t 2 2 Figure 1: An input-output pair
