Find the moment of a force

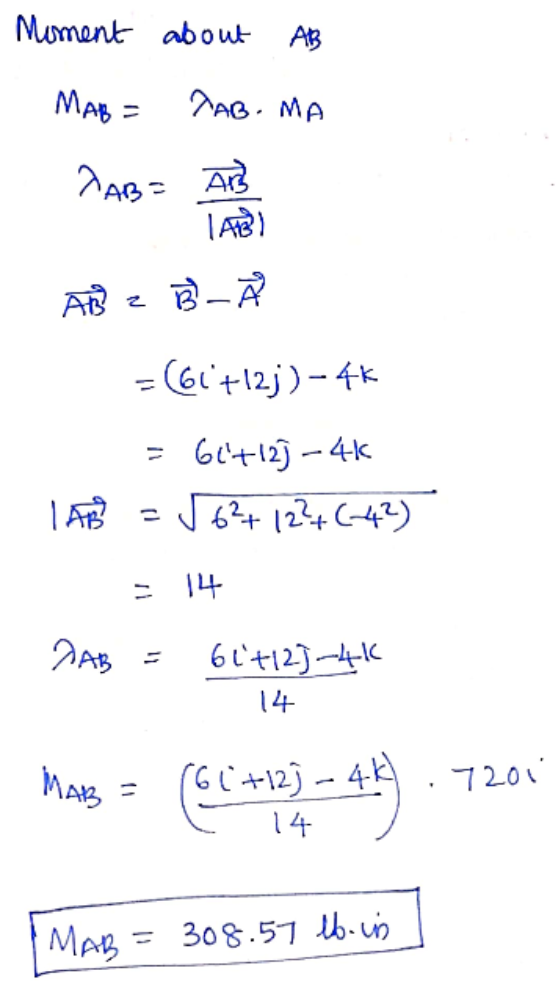

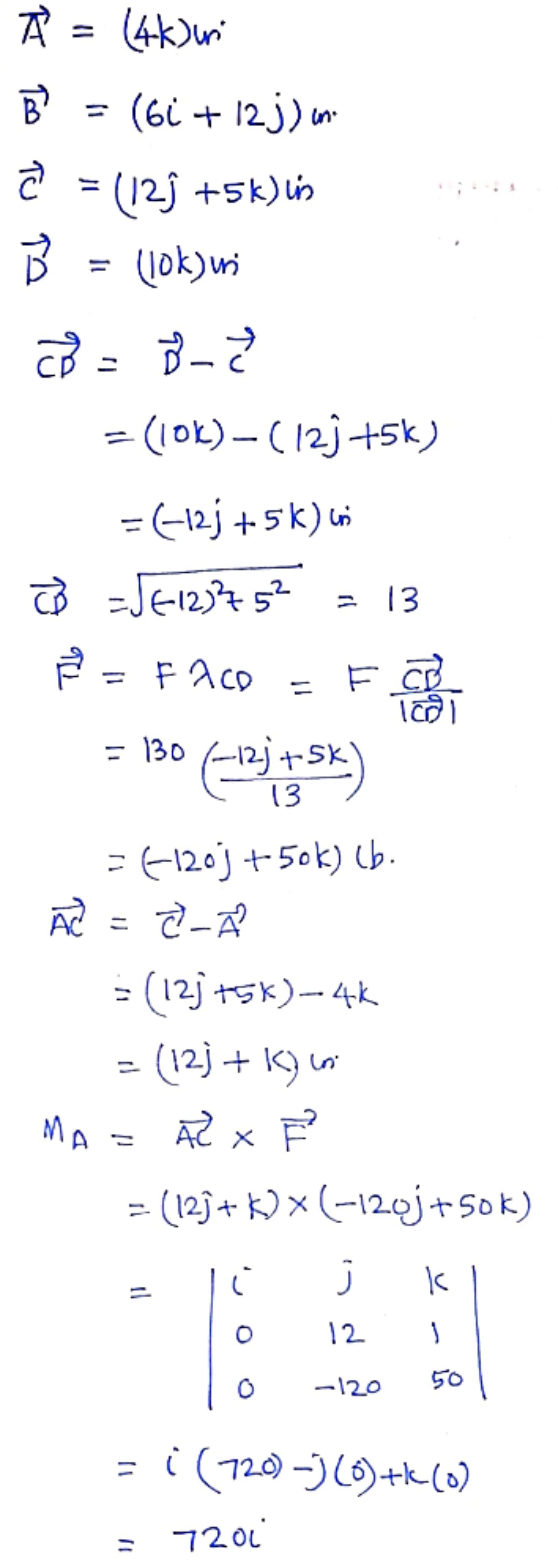

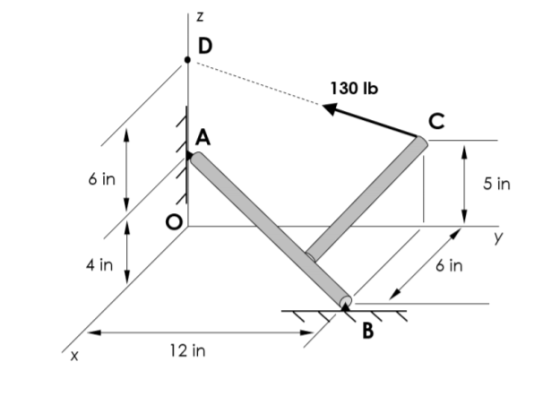

Two rods are welded together to form a T-shaped lever which is acted upon by a 130 lb force as shown. Determine the moment of the force about rod AB.
Homework Answers
Two solid cylinder rods AB and BC are welded together at B and loaded as shown....
Two solid cylinder rods AB and BC are welded together at B and loaded as shown. Determine the magnitude of the force P for which tensile stress in rod AB has the same magnitude as compressive stress in rod BC. 30 lips B 30 lips 30 m 40 in.
The 23-in. vertical rod CD is welded to the midpoint C of the 50-in. rod AB....
The 23-in. vertical rod CD is welded to the midpoint C of the 50-in. rod AB. Determine the moment about AB of the 264.00-lb force Q. (Round the final answer to two decimal places.) 24 in 32 in. 17 in. 30 in 12 in 16 in. 21 in. 1S in The moment about AB of the foroe Q is b ft Hints References eBook & Resources Hint#1
To 130 16 MA=TABX FC Determine the Moment et a force about Point A. Express the...
To 130 16 MA=TABX FC Determine the Moment et a force about Point A. Express the result in cartesian vector form. To 130 16 MA=TABX FC Determine the Moment et a force about Point A. Express the result in cartesian vector form. F-150 lb
Two brass rods, AB and BC. Find (a) Length of rod AB for which the max. normal stress in ABC is...
Two brass rods AB and BC, each of uniform diameter, will bebrazed together at B to form a nonuniform rod of total length100 m which will be suspended from a support at A as shown.Knowing that the density of brass is 8470 kg/m3, determine (a) thelength of rod AB for which the maximum normal stress in ABC isminimum, (b) the corresponding value of the maximum normalstress.
he force vector F has a magnitude of F- 340 lb and acts at point A...
he force vector F has a magnitude of F- 340 lb and acts at point A at an angle 0 - 130 with respect to vertical as shown. The force F Determine the tension forces in the two rods in Cartesian components ed by the tension forces paralel to the two rods AC and AB such that the vector equation C F 0 is satisfed. + FAc + FAB satisfied СС BY NC SA 2013 Michael Swanbom Values for dimensions...
Two rigid rods as shown, AB and BC are connected to a pivot (A) and initially...
Two rigid rods as shown, AB and BC are connected to a pivot (A)
and initially at rest as shown. Each rod has mass of 3 kg and
length L = 0.5 m. A force P as shown is then applied to rod BC at
some distance b from B (the pivot between bars A and B). Please
find the distance b where, when force P is applied, the two rods
(AB and BC) move together as if they formed...
Could you explain it as if you're explaining it to a 5 year old?
Could you explain it as if you're explaining it to a 5 year
old?
2. Two uniform rods, ABC of weight 10 lb and DCE of weight 8 lb, are connected by a pin at C and by two cords BD and BE. The T-shaped assembly rotates in a vertical plane under the combined effect of gravity and of a couple M which is applied to rod ABC. Knowing that at the instant shown the tension in cord BE is...
The assembly shown consists of two rods and a rectangular plate BCDE which are welded together....
The assembly shown consists of two rods and a rectangular plate BCDE which are welded together. The assembly rotates about the axis AB with a constant angular velocity of 7.5 rad/s. Knowing that the rotation is counterclockwise as viewed from B, determine the velocity and acceleration of corner E. 225 mm 500 mm 300 mm
Appendix B, Problem B/044 The welded assembly shown is made from a steel rod which weighs 0.530 lb per foot of length. Calculate the moment of inertia of the assembly about the x-x axis. 6.5" 6.5...
Appendix B, Problem B/044 The welded assembly shown is made from a steel rod which weighs 0.530 lb per foot of length. Calculate the moment of inertia of the assembly about the x-x axis. 6.5" 6.5 6.5" 6.5" 6.5" Answer: 1xx- Ib-in.-sec The number of significant digits is set to 3; the tolerance is +/-1 in the 3rd significant digit
Appendix B, Problem B/044 The welded assembly shown is made from a steel rod which weighs 0.530 lb per foot...
Find the moment of the 340 lb force with respect to : a) point A; b)...
Find the moment of the 340 lb force with respect to : a) point
A; b) line AB; c) find the perpendicular distance from A to the
line of action of the force.
problem 6: Find he moment of the 340 lb force with respect to a) point A. b) ne AB; c) find the perpendicular distance from A to the ne of action of the force. (s. 8.01 AIA, 8, 9) 310 (0, 3) (A5, 0,9)
Two solid cylinder rods AB and BC are welded together at B and loaded as shown. Determine the magnitude of the force P for which tensile stress in rod AB has the same magnitude as compressive stress in rod BC. 30 lips B 30 lips 30 m 40 in.
The 23-in. vertical rod CD is welded to the midpoint C of the 50-in. rod AB. Determine the moment about AB of the 264.00-lb force Q. (Round the final answer to two decimal places.) 24 in 32 in. 17 in. 30 in 12 in 16 in. 21 in. 1S in The moment about AB of the foroe Q is b ft Hints References eBook & Resources Hint#1
To 130 16 MA=TABX FC Determine the Moment et a force about Point A. Express the result in cartesian vector form. To 130 16 MA=TABX FC Determine the Moment et a force about Point A. Express the result in cartesian vector form. F-150 lb
he force vector F has a magnitude of F- 340 lb and acts at point A at an angle 0 - 130 with respect to vertical as shown. The force F Determine the tension forces in the two rods in Cartesian components ed by the tension forces paralel to the two rods AC and AB such that the vector equation C F 0 is satisfed. + FAc + FAB satisfied СС BY NC SA 2013 Michael Swanbom Values for dimensions...
Two rigid rods as shown, AB and BC are connected to a pivot (A)
and initially at rest as shown. Each rod has mass of 3 kg and
length L = 0.5 m. A force P as shown is then applied to rod BC at
some distance b from B (the pivot between bars A and B). Please
find the distance b where, when force P is applied, the two rods
(AB and BC) move together as if they formed...
Could you explain it as if you're explaining it to a 5 year
old?
2. Two uniform rods, ABC of weight 10 lb and DCE of weight 8 lb, are connected by a pin at C and by two cords BD and BE. The T-shaped assembly rotates in a vertical plane under the combined effect of gravity and of a couple M which is applied to rod ABC. Knowing that at the instant shown the tension in cord BE is...
The assembly shown consists of two rods and a rectangular plate BCDE which are welded together. The assembly rotates about the axis AB with a constant angular velocity of 7.5 rad/s. Knowing that the rotation is counterclockwise as viewed from B, determine the velocity and acceleration of corner E. 225 mm 500 mm 300 mm
Appendix B, Problem B/044 The welded assembly shown is made from a steel rod which weighs 0.530 lb per foot of length. Calculate the moment of inertia of the assembly about the x-x axis. 6.5" 6.5 6.5" 6.5" 6.5" Answer: 1xx- Ib-in.-sec The number of significant digits is set to 3; the tolerance is +/-1 in the 3rd significant digit
Appendix B, Problem B/044 The welded assembly shown is made from a steel rod which weighs 0.530 lb per foot...
Find the moment of the 340 lb force with respect to : a) point
A; b) line AB; c) find the perpendicular distance from A to the
line of action of the force.
problem 6: Find he moment of the 340 lb force with respect to a) point A. b) ne AB; c) find the perpendicular distance from A to the ne of action of the force. (s. 8.01 AIA, 8, 9) 310 (0, 3) (A5, 0,9)
