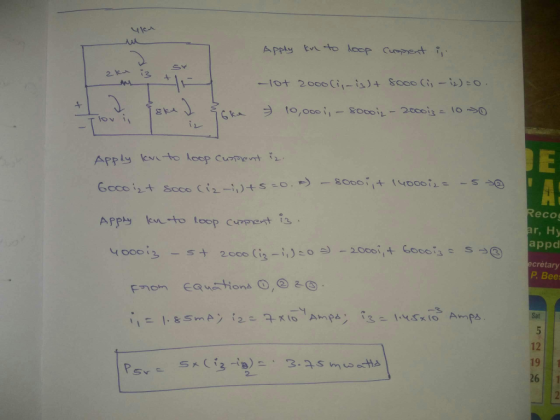

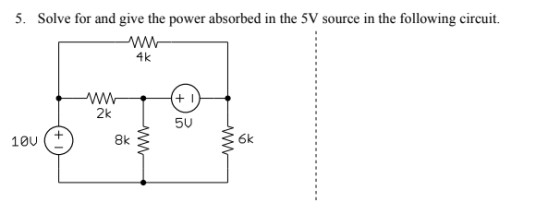

5. Solve for and give the power absorbed in the 5V source in the following circuit...
For the circuit shown, the power absorbed or supplied by the independent voltage Source 5 lx Vs 60V 200 0.25 Vs 50 } Select one: O a. 360 W (absorbed) b. - 675 W (supply) C. - 1620 W (supply) O d. 2356 W (absorbed) Clear my choice
Find Vo in the circuit in fig.286 and the power absorbed by the
depent source
Find Vo in the circuit in Fig. 2.86 and the power absorbed by the dependent source. Figure 2.86 1022 - V. + 102 2510 27
Find Vo and the power absorbed by the dependent source in the given circuit. Assume l = 26 A. 10 22 + V- 21092 1 42v. The value of Vo is v. The power absorbed by the dependent source is
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
Problem 1: Solve for power supplied by 5V source with the constant voltage model. Use Vb,on 700mV for every diode. (Answer: 143mW) D2 100m R3 100 R4 50 R2 150 D1 R1 50 V1 5
Given the network in Fig. E9.2, find the average power absorbed by each passive circuit
element and the total average power supplied by the current source.
Problem #5 [10 points]: Design a circuit with the following criteria. Assume existence of +5V power supply. Draw your circuit and show your work. i. Input signal that operates between Vin -5V- +5V, and capable of sourcing or sinking 500 x 10^-6 A. ii. Output signal nominally outputs between Vout 0V 5V, and capable of sinking 1 mA from an external device with an output no more than 0.1 V
Problem #5 [10 points]: Design a circuit with the following...
In the circuit of Figure P3.49 find the power (released or absorbed?) by each source using (a) nodal analysis; (b) loop analysis; (c) the superposition principle. Which method do you prefer the most? The least? Why?
Build an Op-Amp Circuit Network. Note you only have a power source of 5V available. You have a voltage signal that latches at a constant 1.5V. Create a difference circuit to produce an output voltage of 2V. Put P/Ns and element values in your design. Show your work. From part a)’s output voltage, assign that now as a reference voltage (Vref) to compare to an analog sensor signal (Vin) that can range between 0V – 5V. Make sure your circuit...
In the following circuit find the power absorbed by each circuit
element
4Ω Ф 12v 4Ω
