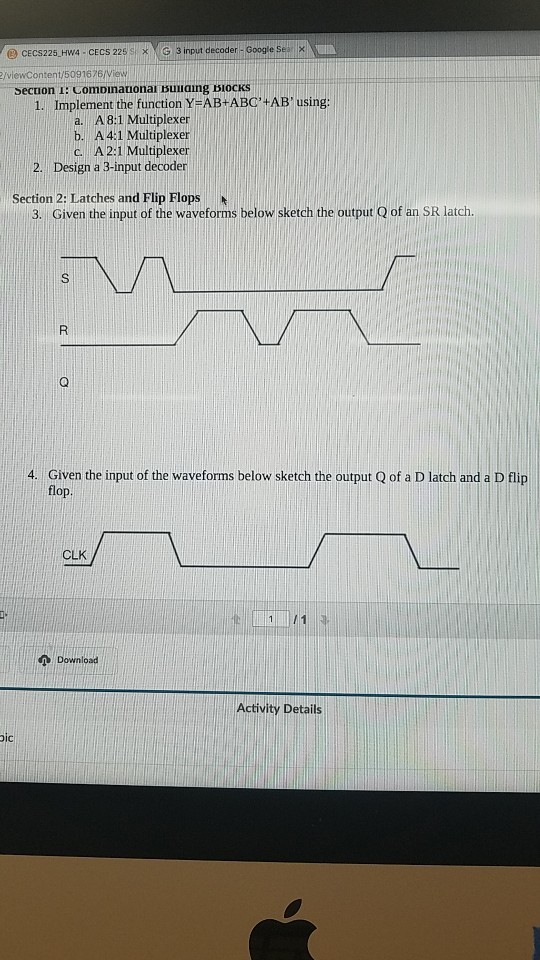

need help with #3 thanks! @ cECS225 Hw4 CECS 225 SG3 input decoder- Google Se X...
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
please answer all thanks very much!
Question 3 Shown below is a schematic diagram of a counter made up of three JK flip-flops. (d) Shown below is a master-slave D flip-flop. This is made using two gated D latches. The truth table for a gated D latch is also shown below. HIGH J J CLK ас ас ac Truth table: gated D latch D EN D D, Q. D, 0. 0 0 go CLK ΕΝΟ ENO: 0 0 1 0...
3) A digital circuit is shown input output input 4 input This circuit performs the function of a(n) (A) SR flip-flop (B) JK flip-flop (C) D flip-flop (D) T flip-flop 4) A digital circuit is shown inputs Y Z output no. 1 output no. 2 This circuit performs the function of a (A) 2-bit comparator (B) decoder (C) full-adder (D) full-subtractor
3. A timing diagram below shows a D Flip-flop and the input clock. Show the transition of the output Q at the positive transitions of the clock signal. Q 1 initially. Clk 4. Implement a 2-bit up-counter using D flip-flops. Show the circuit. 5. Implement a 2-bit down-counter using D flip-flops. Show the circuit. Transitions: 11->10->01->00->11->10->...
hi i need answers for nos. 18-28.
1. In a counter, a flip-flop output 10. A is a group of flip-flops, each one of which transition serves as a source for triggering other flip-flops, not by the common clock pulses. shares a common clock and is capable of storing one bit of information. A) RAM B) latch A ripple Cring (rather than signal transitions) are referred to as B synchronous D binary C) counter D) register 11. The Characteristic Equation...
Question 3. [20 marks a) Convert a JK - Flip Flop into a D- Flip Flop [10 marks] b) Given the following JK - Flip Flop Preset dCLK K Clear Clearo Preset J K C CLK 1 Figure 2. Timing Diagram Sketch the output waveform Q in Figure 2. [10 marks C
A D Flip-Flop only samples what is on the D input when the clock signal edge rises from low to high. The circuit below is a DFF built from fundamental gates and behaves the same as the DFF discussed in class. Given signal D and clk draw the fastpulse signal and output Q1 in the empty plot panes. .tran o lu O in Active low SR latch Gate with single D input 4+ 0 fastpulse 3ns 3ns 3ns Generate fast...
Given the State Table Below 01 02 Q3 X-1 A. B. C. Draw a state Diagram (S points) Create the "design truth table" for the "next state" and the "output" (5 points) Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xQ1" should be along the top and "O203" along the side (The two missing states should be considered "DONT CARES") Write the "Next State" and Output equations from the Karnaugh maps...
1.
a) Complete the waveform templates for the Master –Slave
D-flip-flop below with given D, CLK, CLEAR, and PRESET signals.
Neglect the propagation delays.
b) Does it have positive or negative edge triggering with
respect to CLK?
c) Are the asynchronous PRESET and CLEAR active-high or
active-low?
2. Enabling of data load in the D-flip-flop was implemented with
a 2-to-1 multiplexer as show below. The D-flip-flop has the
positive edge triggering and the active-low asynchronous clear.
a) Is the Enable...
Given the State Table Below 01* 02 03 1 203 X-1 0 000 01 0 0 0 1 0 0 A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output" (5 points) C. Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xO1" should be along the top and "0203'" along the side (The two missing states should be considered "DONT CARES")...
