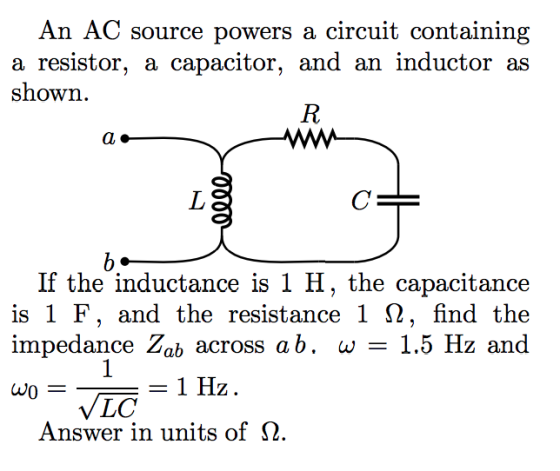

An AC source powers a circuit containing itor, and an inductor as a resistor, a capac shown If the inductance is 1 H, the cap

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

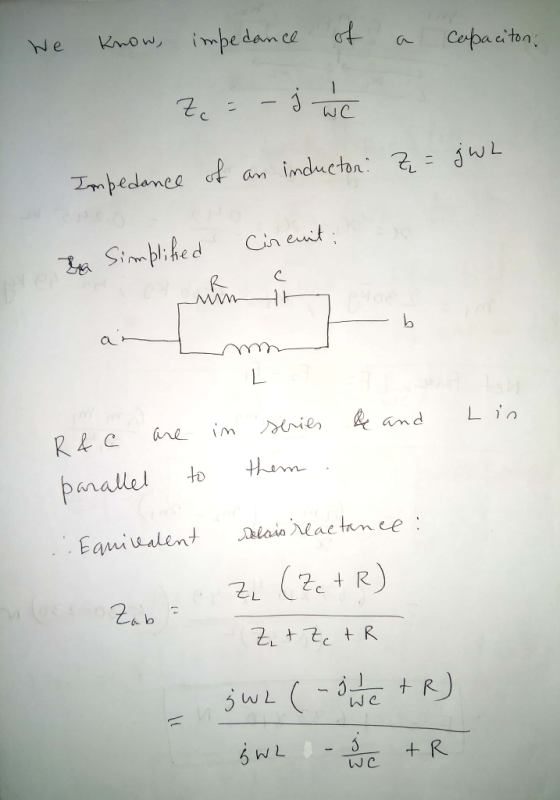

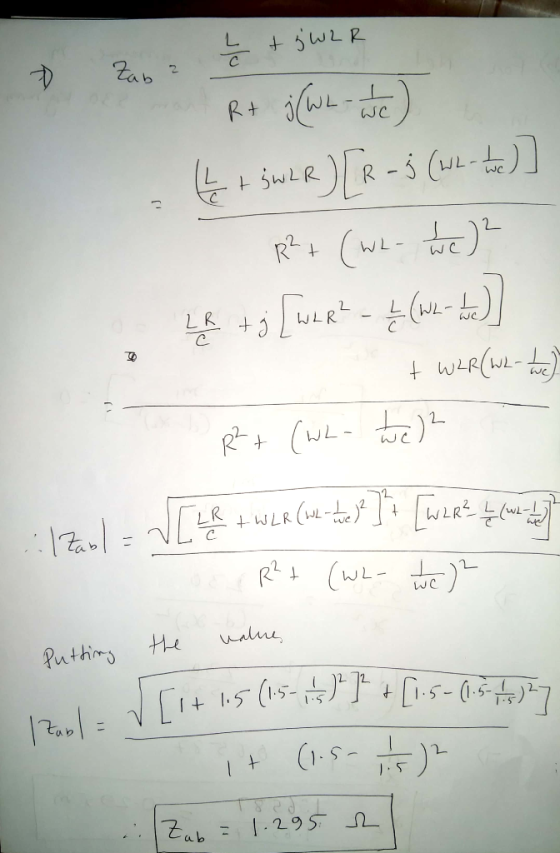

Cerba a ton iphed Cin et au + R a b + R WeL. WL JL- (WL- 15-15-2 Zab 1.295 L

0 0
Add a comment
Know the answer?
Add Answer to:
An AC source powers a circuit containing itor, and an inductor as a resistor, a capac...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An AC source powers a circuit containing a resistor, a capacitor, and an inductor as shown....

    An AC source powers a circuit containing a resistor, a capacitor, and an inductor as shown. L R C b a If the inductance is 1 H , the capacitance is 1 F , and the resistance 1 Ω , find the impedance Zab across a b . ω = 1.25 Hz and ω0 = 1 √ LC = 1 Hz . Answer in units of Ω.

  • An AC source powers a circuit containing a resistor, a capacitor, and an inductor as shown....

    An AC source powers a circuit containing a resistor, a capacitor, and an inductor as shown. If the inductance is 1 H, the capacitance is 1 F, and the resistance 1 ohm, find the impedance Z_ab across ab. omega = 0.5 Hz and omega_0 = 1/squareroot LC = 1 Hz. Answer in units of ohm.

  • An inductor, a resistor, and a capacitor are in series (see figure below) with a 60...

    An inductor, a resistor, and a capacitor are in series (see figure below) with a 60 cycle source of ac. The inductor has self inductance of 0.5 H and resistance of 20Ω. The resistor has 80Ω of resistance and capacitor has 8 µF of capacitance. What is the impedance of the circuit? (b) What is the power factor? (C) Find the resonancefrequency of the circuit. 50.2 LOME Q11 An inductor, a resistor, and a capacitor are in series (see figure...

  • A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0...

    A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0 V and a frequency of 60.0 Hz. The resistance is 160 Ohm, the inductance is 0.230 H, and the capacitance is 70.0 mu F. a) Determine the impedance of the circuit. b) Determine the current amplitude. c) Determine the voltage amplitude across (i) the resistor, (ii) the inductor and (iii) the capacitor. d) Sketch the phasor diagram (at t = 0) for the circuit,...

  • A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.

     A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...

  • We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...

    We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...

  • An inductor and a resistor are connected in series. When connected to a 60-Hz, 90-V (rms)...

    An inductor and a resistor are connected in series. When connected to a 60-Hz, 90-V (rms) source, the voltage drop across the resistor is found to be 46 V (rms) and the power delivered to the circuit is 12 W. (a) Find the value of the resistance. Ω (b) Find the value of the inductance. H

  • A series AC circuit contains a resistor, an inductor of 200 mH, a capacitor of 4.30...

    A series AC circuit contains a resistor, an inductor of 200 mH, a capacitor of 4.30 µF, and a source with ΔVmax = 240 V operating at 50.0 Hz. The maximum current in the circuit is 180 mA. (a) Calculate the inductive reactance. Ω (b) Calculate the capacitive reactance. Ω (c) Calculate the impedance. kΩ (d) Calculate the resistance in the circuit. kΩ (e) Calculate the phase angle between the current and the source voltage. °

  • Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm,...

    Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz the total impedance is Question 13 options: less than 100Ohm Is more than 100Ohm Is within 1% of 100 Ohm Is not within 1% of 100Ohm Question 14 (1 point) Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is...

  • A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50...

    A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50 uF, and a source with AV = 240 V operating at 50.0 Hz. The max maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance. The inductive reactance depends on the value of the inductance and the frequency of the source. Q (b) Calculate the capacitive reactance. (c) Calculate the impedance. kn (d) Calculate the resistance in the circuit. kn. (e)...
