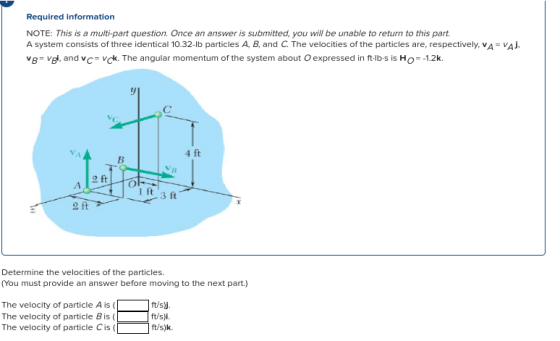

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Question

Question

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this p

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

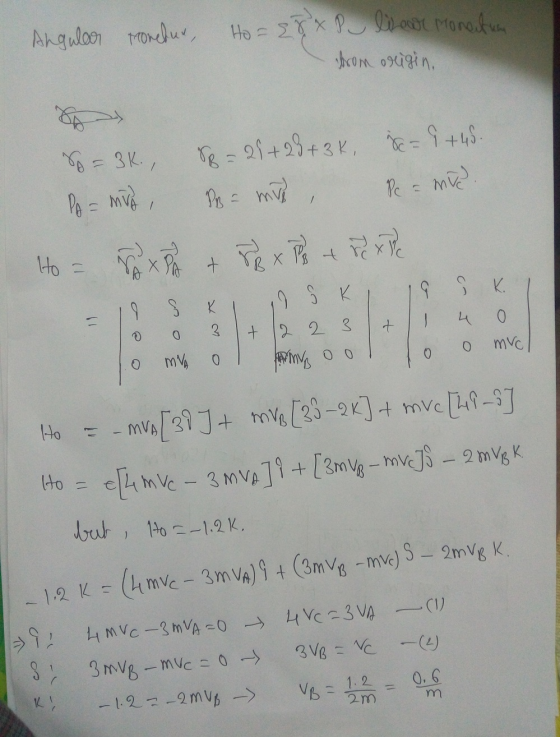

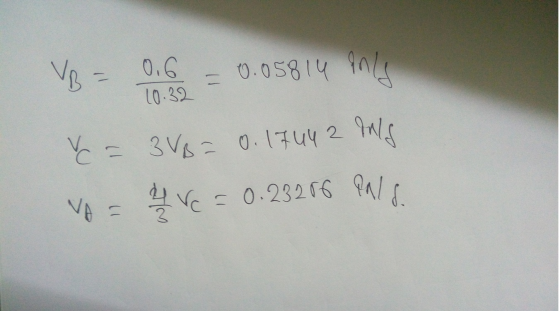

Angular rorlux, Ho = 28 x P linear monation from origin. So=BK, SR=21+ 2% + 3K, 8c = 9 +45. Po= mivo, Bos = mud Be = mive. Ho VB = 0.6 = 0.05814 Pals 10.32 - V = 3/6= 0.17442 fuld V 4vc = 0.23286 Pals

Add a comment

Answer 2

Similar Homework Help Questions

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will b...

2 part problem, thanks! Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part The pin at Bis attached to member ABD and can slide freely along the slot cut in the fixed plate. The angular velocity of arm DE is 3.5 rad/s clockwise at the instant shown. 200 mn 120 mm 30 160 am Determine the angular velocity of member ABD. (You must provide an answer before...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Based on experimental observations, the acceleration of a particle is defined by the relation a = -0.1 +sin x/b), where a and x are expressed in m/s2 and meters, respectively. Know that b=0.98 m and that v=1 m/s when x=0. Determine the velocity of the particle when x=-1 m. (You must provide an answer before moving to the...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part A radar system is used to track a new experimental space launch vehicle. Early in the vehicle's flight trajectory, the azimuth angle ß is increasing with the constant rate dB/dt= 20°/s. The elevation angle y is increasing at the rate dy/dt = 40°/s, and this rate is increasing at 5°/s. Know that the distance between O and Pis...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The arm ABC rotates with an angular velocity of 4 rad/s counterclockwise. The angular velocity of the intermediate gear B is 8.8 rad/s counterclockwise. 100 mm NUN B 25 , 200 mm 300 mm 300 mm Determine the instantaneous centers of rotation of gears A and C. The instantaneous center of rotation of gear Ais [ mm to...
Part 2 of 2 Required information NOTE: This is a multi-part question. Once an answer is...

Part 2 of 2 Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The motion of an oscillating flywheel is defined by the relation 0 = 20e-11/6 sin4nt, where is expressed in radians and t in seconds. The value of 00=1 rad. 714 points Skipped eBook Hint Print References Determine the angular coordinate, the angular velocity, and the angular acceleration of the flywheel when t=. The angular...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The acceleration of a particle is defined by the relation a k(1- e),where k is a constant. The velocity of the particle is +9 m/s when x--3 m and it comes to rest at the origin Problem 11.021.a - Obtaining velocity from a position-dependent acceleration by integration Determine the value of k. (You must provide an answer before moving on...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part The motor applies a constant downward force F= 1050 lb to the cable used to raise the 3550-lb elevator Eshown in the figure. The counterweight has a weight of 2000 lb and the elevator starts from rest. The elevator travels 20 ft W <Prev 7 8 of 13 Next > to search ine motor applies a constant downward...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The flywheel shown has a radius of 20 in., a weight of 290 lbs, and a radius of gyration of 15 in. A 70-lb block Ais attached to a wire that is wrapped around the flywheel, and the system is released from rest. The effect of friction is neglected. Determine the acceleration of block A. (You must provide an answer...
Het Saved Required information NOTE: This is a multi-part question. Once an answer is submitted, you...

Het Saved Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A bullet weighing 0.08 lb is fired with a horizontal velocity of 1800 ft/s into the lower end of a slender 18-1b bar of length = 30 in. A С VO B Determine the required distance hif the impulsive reaction at C is to be zero. (You must provide an answer before moving on to the...

1 Required information NOTE This is a multi part question. Once an answer is submitted, you...

1 Required information NOTE This is a multi part question. Once an answer is submitted, you will be unable to return to this part The flywheel shown has a radius of 20 in a weight of 320 lbs, and a radius of gyration of 15 in A 100-b block Ais attached to a wire that is wrapped around the flywheel, and the system is released from rest. The effect of friction is neglected Part 1 of 2 4 Determine the...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...
