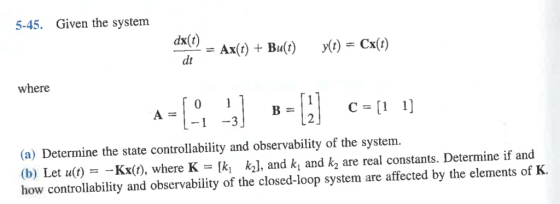

![5-45. Given the system dx(t) where C=[1 1] (a) Determine the state controllability and observability of the system. (b) Let u(t) =-Kx(t), where K-ki k2], and ki and k2 are real constants. Determine if and how controllability and observability of the closed-loop system are affected by the elements of K.](http://img.homeworklib.com/questions/b6c45230-7c30-11eb-94ff-db48096f0921.png?x-oss-process=image/resize,w_560)
I am confused with part (b). Please show all your steps.

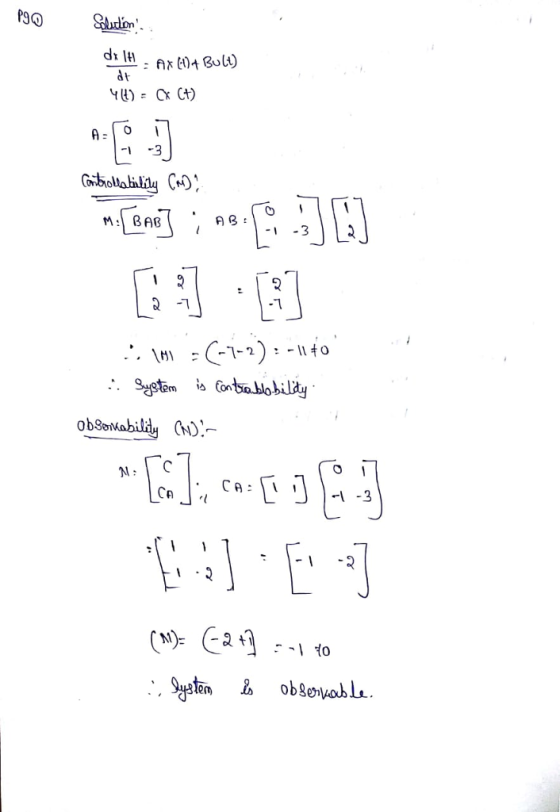

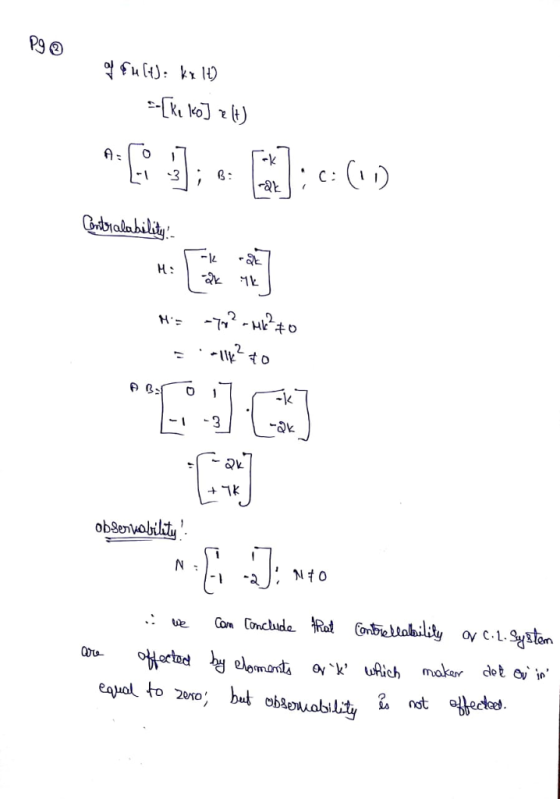

Homework Answers
![E习 [의 .[3] 込(on](http://img.homeworklib.com/questions/2aa8d3d0-7c3c-11eb-8487-edfbf36e2f47.png?x-oss-process=image/resize,w_560)
Add Answer to:
I am confused with part (b). Please show all your steps.
