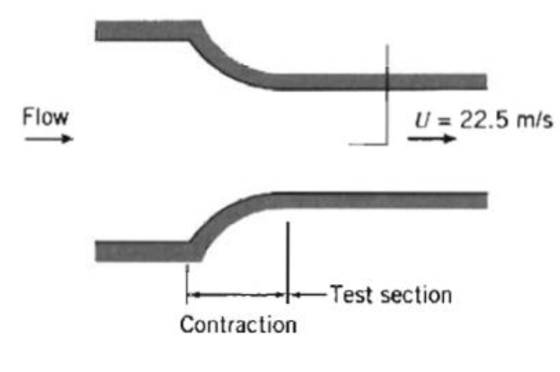

The speed of wind is U = 22.5 m/s. The pressure sensor shows the pressure the static pressure of the middle point line of the experiment surface as 6mmH20 under atmospheric pressure. absokute pressure is 99.1 KPa and temperature is 23 celsius. calculate the dynamic and static pressure of the middle point line of the experiment surface. calculate the static pressure of the tunnel walls and compare to the previous section static pressure. Why are they different?

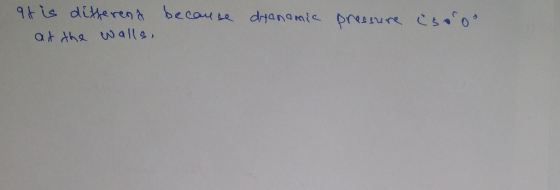

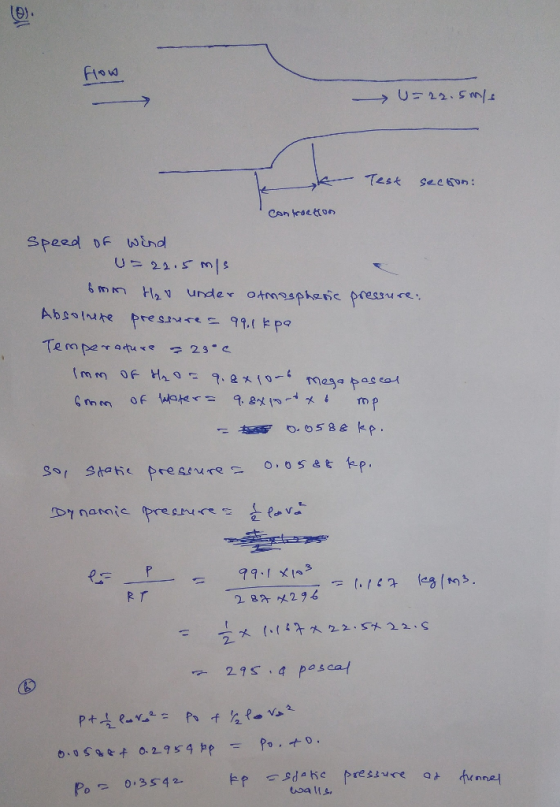

Homework Answers
Add Answer to:
The speed of wind is U = 22.5 m/s. The pressure sensor shows the
pressure the...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Diffuser Fan Test Section Inlet The wind...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Diffuser Fan Test Section Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Fan Test Section Diffuser Inlet The wind...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Fan Test Section Diffuser Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down/low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m°, and absolute viscosity of air is 1.825*10-5 Ns/m² (assume...
9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross...
9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a manometer (manometer fluid is water with...
Honeycomb Flow Straightener Anti-Turbulence Screens Silencer Fan Diffuser Test Section Inlet 9) For the air wind...
Honeycomb Flow Straightener Anti-Turbulence Screens Silencer Fan Diffuser Test Section Inlet 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume there are no losses in the wind tunnel) Contraction ratio: 7| Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in...
For the air wind tunnel shown Honeycomb Flow Straightener Anti-Turbulence Screens Silencer Fan Diffuser Test Section...
For the air wind tunnel shown Honeycomb Flow Straightener Anti-Turbulence Screens Silencer Fan Diffuser Test Section Inlet Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m?, and absolute viscosity of air is 1.825*10-S Ns/m? (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a...
Honeycomb Flow Straightener - Anti-Turbulence Screens Silencer Fan Test Section Diffuser Iniet Assuming a circular cross...
Honeycomb Flow Straightener - Anti-Turbulence Screens Silencer Fan Test Section Diffuser Iniet Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10% Ns/m? (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a manometer (manometer fluid is water...
. max A small round object is tested in a 0.75-m diameter wind tunnel. The pressure...
.
max A small round object is tested in a 0.75-m diameter wind tunnel. The pressure is uniform across sections 1 and 2. The upstream pressure is 30 mm H2O (gage), the downstream pressure is 15 mm H20 (gage), and the mean air speed is 12.5 m/s. The velocity profile at section 2 is linear; it varies from zero at the tunnel centerline to a maximum at the tunnel wall. V Calculate a) the mass flow rate in the wind...
1.) In Chapter 4 we will learn how a low-speed wind tunnel generates airflow to study...
1.) In Chapter 4 we will learn how a low-speed wind tunnel generates airflow to study aerodynamic shapes. Consider a tunnel that uses a U-tube mercury manometer attached between the bell inlet (station 1) and the test section (station 2) to measure the static pressure differential (por setting the airspeed of the flow. The pressure differential 1527 N/m2 for a test section airspeed of 50 m/s. What is the height of the unbalanced column of mercury?
For this problem, consider a site which is experiencing a wind speed of 9.5 m/s. You...
For this problem, consider a site which is experiencing a wind speed of 9.5 m/s. You are to calculate how much power there is in the wind in Watts at this moment as it flows through the rotor of a wind turbine. Please assume that the air temperature is 14 degrees C at hub height conditions and the pressure can be considered to be 99.78 kPA for a rotor diameter of 32 m. (answer to 0 decimal places)
Required information The local atmospheric pressure in Denver, Colorado (elevation 1610 m) is 83.4 kPa. Air...
Required information The local atmospheric pressure in Denver, Colorado (elevation 1610 m) is 83.4 kPa. Air at this pressure and at 25°C flows with a velocity of 12 m/s over a 2.5-mx 5-m flat plate. The dynamic viscosity is independent of pressure, and for air at 25°C, it is H- 1.849 10 kg/m s. The air density at 25°C 298 K and 83.4 kPa is 0.9751 kg/m3 Calculate the drag force acting on the top surface of the plate if...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Diffuser Fan Test Section Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Fan Test Section Diffuser Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down/low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m°, and absolute viscosity of air is 1.825*10-5 Ns/m² (assume...
9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a manometer (manometer fluid is water with...
Honeycomb Flow Straightener Anti-Turbulence Screens Silencer Fan Diffuser Test Section Inlet 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume there are no losses in the wind tunnel) Contraction ratio: 7| Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in...
For the air wind tunnel shown Honeycomb Flow Straightener Anti-Turbulence Screens Silencer Fan Diffuser Test Section Inlet Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m?, and absolute viscosity of air is 1.825*10-S Ns/m? (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a...
Honeycomb Flow Straightener - Anti-Turbulence Screens Silencer Fan Test Section Diffuser Iniet Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10% Ns/m? (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a manometer (manometer fluid is water...
.
max A small round object is tested in a 0.75-m diameter wind tunnel. The pressure is uniform across sections 1 and 2. The upstream pressure is 30 mm H2O (gage), the downstream pressure is 15 mm H20 (gage), and the mean air speed is 12.5 m/s. The velocity profile at section 2 is linear; it varies from zero at the tunnel centerline to a maximum at the tunnel wall. V Calculate a) the mass flow rate in the wind...
1.) In Chapter 4 we will learn how a low-speed wind tunnel generates airflow to study aerodynamic shapes. Consider a tunnel that uses a U-tube mercury manometer attached between the bell inlet (station 1) and the test section (station 2) to measure the static pressure differential (por setting the airspeed of the flow. The pressure differential 1527 N/m2 for a test section airspeed of 50 m/s. What is the height of the unbalanced column of mercury?
Required information The local atmospheric pressure in Denver, Colorado (elevation 1610 m) is 83.4 kPa. Air at this pressure and at 25°C flows with a velocity of 12 m/s over a 2.5-mx 5-m flat plate. The dynamic viscosity is independent of pressure, and for air at 25°C, it is H- 1.849 10 kg/m s. The air density at 25°C 298 K and 83.4 kPa is 0.9751 kg/m3 Calculate the drag force acting on the top surface of the plate if...
