A heating element in a stove is designed to dissipate 2500 W of heat when it...

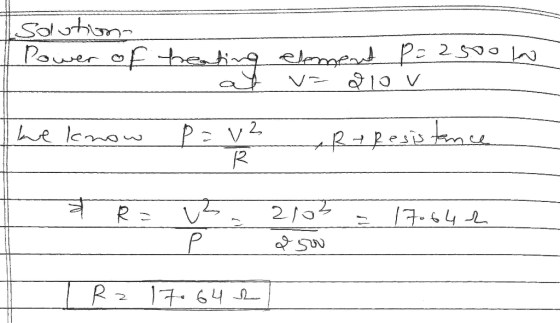

A heating element in a stove is designed to dissipate 2500 W of heat when it is connected to 210 V. Assuming that the resistance is constant, calculate the current in this element if it is connected to 115 V.
| Tries 0/12 |

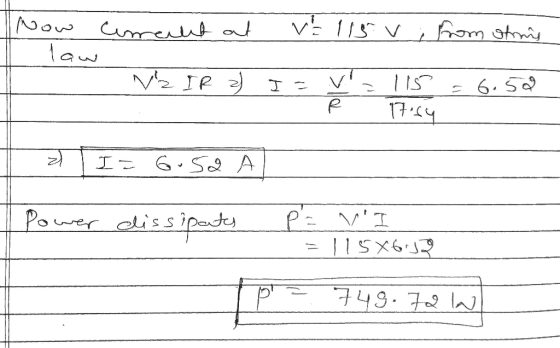

Calculate the power the heating element dissipates at this voltage.
| Tries 0/12 |
Homework Answers
Add Answer to:
A heating element in a stove is designed to dissipate 2500 W of
heat when it...
A heating element in a stove is designed to dissipate 4,395 W when connected to 240...
A heating element in a stove is designed to dissipate 4,395 W when connected to 240 V. (a) Assuming the resistance is constant, calculate the current in the heating element if it is connected to 120 V. A (b) Calculate the power it dissipates at that voltage. W
A heating element in a stove is designed to dissipate 2,542 W when connected to 240...
A heating element in a stove is designed to dissipate 2,542 W when connected to 240 V. (a) Assuming the resistance is constant, calculate the current in the heating element if it is connected to 120 V. (b) Calculate the power it dissipates at that voltage.
A heating element in a stove is designed to receive 1, 842 W when connected to...
A heating element in a stove is designed to receive 1, 842 W when connected to 240 V. Assuming the resistance is constant, calculate the current in the heating element if it is connected to 120 V. Calculate the power it receives at that voltage.
Q26.4: The heating element of a hair dryer dissipates 1500 W when connected to a 150...
Q26.4: The heating element of a hair dryer dissipates 1500 W when connected to a 150 V outlet. You may want to review (Pages 841 - 843) . What is its resistance? Express your answer to two significant figures and include the appropriate units.
A 110 V heating element in a stove can boil a standard size pot of water...
A 110 V heating element in a stove can boil a standard size pot of water in 1.2 minutes, consuming a total of 136 kJ of energy. Determine the resistance of the heating element and the current flowing through it.
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is...
A certain toaster has a heating element made of Nichrome resistance wire. When the toaster is first connected to a 130-V source of potential difference (and the wire is at a temperature of 20.0°C), the initial current is 1.70 A, but the current begins to decrease as the resistive element warms up. When the toaster reaches its final operating temperature, the current has dropped to 1.53 A. (a) Find the power the toaster converts when it is at its operating...
It is necessary to control a light bulb rated at 100 W, powered from a 208-Vrms,...
It is necessary to control a light bulb rated at 100 W, powered from a 208-Vrms, 50-Hz line, with the S4006LS2 in a 84-°C environment. Assuming that the light bulb is a fixed resistor,... a. Calculate its resistance in ohms with one place after the decimal. Submit Answer Tries 0/3 b. Calculate the maximum voltage across the SCR during the half cycle that the SCR is off. Answer in V with one place after the decimal. Submit Answer Tries 0/3...
The heating element of a clothes dryer has a resistance of 18 . A voltage of...
The heating element of a clothes dryer has a resistance of 18 . A voltage of 220 V is connected across the heating element. What is the current in the heating element?
A heating element in a toaster dissipates 800 W when run at 110 V. How much...
A heating element in a toaster dissipates 800 W when run at 110 V. How much charge passes through the heating element in 1 minute? Please show all of your work. Express your answer to two significant figures and include the appropriate units.
A typical lightbulb in your house is rated 150 W, which means that the bulb dissipates...
A typical lightbulb in your house is rated 150 W, which means that the bulb dissipates 150 W when connected to a DC voltage of 115 V. (a) What is the current through the lightbulb? (b) If the voltage is reduced to 40 V, what is the dissipated power?
A heating element in a stove is designed to receive 1, 842 W when connected to 240 V. Assuming the resistance is constant, calculate the current in the heating element if it is connected to 120 V. Calculate the power it receives at that voltage.
It is necessary to control a light bulb rated at 100 W, powered from a 208-Vrms, 50-Hz line, with the S4006LS2 in a 84-°C environment. Assuming that the light bulb is a fixed resistor,... a. Calculate its resistance in ohms with one place after the decimal. Submit Answer Tries 0/3 b. Calculate the maximum voltage across the SCR during the half cycle that the SCR is off. Answer in V with one place after the decimal. Submit Answer Tries 0/3...
