Question

1. Use Raoult's law to calculate the vapor pressure of a mixture of hexane (C6H14, P=32.0 torr) and heptane (C7H14, P=18.0 torr) in which the mole fraction fo heptane is 0.80.

a. 32.0 torr b. 11.0 torr c. 20.8 torr d. 18.0 torr

2. Biphenyl is a symmetrical polyaromatic hydrocarbon with the molecular formula C12H10. How many fused aromatic rings does biphenyl have in its molecular structure?

a. 1 b. 2 c. 3 d. none

3. A molecule with the R-(C=O)-O-C-R bonding arrangement is called an ___.

a. alcohol b. ester c. amine d. ether

Answer 1

1.

Let p_T = Total vapor pressure of the solution,

According to Raoult's law:

pT = p_hexaneX_hexane + p_heptaneX_heptane

Where:

p_hexane and p_heptane are partial vapor pressures of hexane and heptane, respectively.

X_hexane and X_heptane are the mole fractions of hexane and heptane in the liquid phase, respectively.

Given, p_hexane = 32 torr, p_heptane = 18 torr, X_hexane = 0.20 and X_heptane = 0.80, X_hexane = 1 - X_heptane = 0.20 torr

pT = 32 x 0.20 + 18 x 0.80 = 6.4 + 14.4 =   20.8 torr.

Answer is C

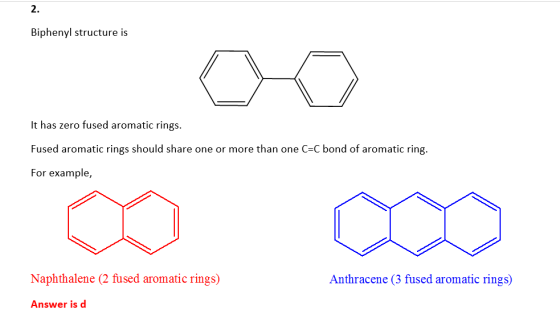

2. Biphenyl structure is It has zero fused aromatic rings. Fused aromatic rings should share one or more than one C-C bond of aromatic ring. For example, Naphthalene (2 fused aromatic rings) Anthracene (3 fused aromatic rings) Answer is
