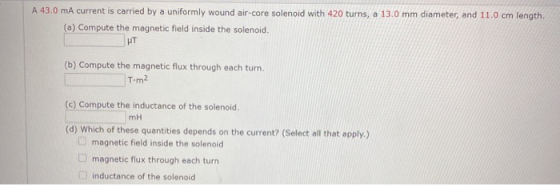

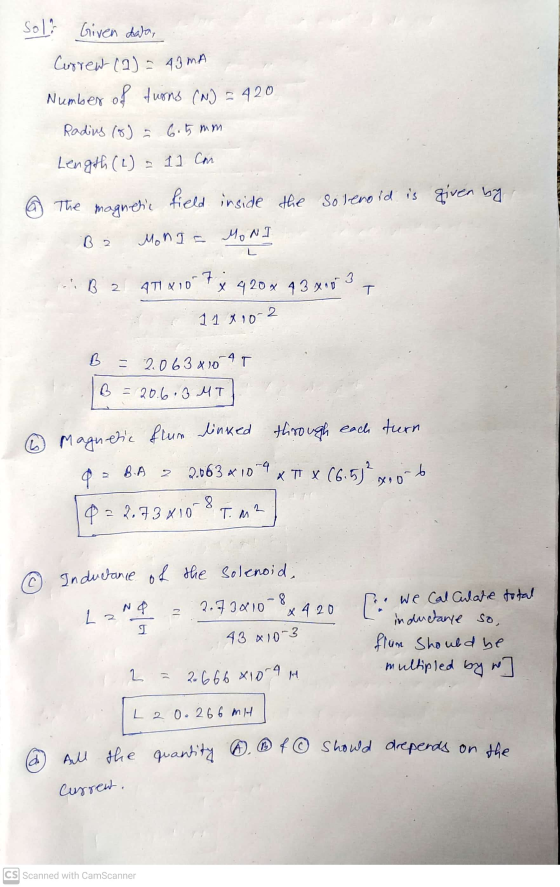

A 43.0 mA current is carried by a uniformly wound air-core solenoid with 420 turns, a...
A 45.0 mA current is carried by a uniformly wound air-core solenoid with 435 turns, a...
A 45.0 mA current is carried by a uniformly wound air-core solenoid with 435 turns, a 19.5 mm diameter, and 14.0 cm length. (a) Compute the magnetic field inside the solenoid. (b) Compute the magnetic flux through each turn. (c) Compute the inductance of the solenoid. (d) Which of these quantities depends on the current? (Select all that apply.) magnetic field inside the solenoid magnetic flux through each turn inductance of the solenoid
Solve all parts of Question 1 clearly: Two toroidal solenoids are wound around the same form...
Solve all parts of Question 1 clearly:
Two toroidal solenoids are wound around the same form so that
the magnetic field of one passes through the turns of the other.
Solenoid 1 has 800 turns, and solenoid 2 has 500 turns. When the
current in solenoid 1 is 6.52 A, the average flux through each turn
of solenoid 2 is 0.0320 Wb.
What is the mutual inductance of the pair of solenoids?
When the current in solenoid 2 is 6.52...
A solenoidal inductor consists of ten turns of wire in air coiled with a diameter of...
A solenoidal inductor consists of ten turns of wire in air coiled with a diameter of 5 mm and length 1 cm. The solenoid is oriented with the long axis of the coil in the z direction. (a) The inductor is driven with 1 mA of current. Find the magnetic field intensity vector field inside the solenoid. Be sure to give both the direction and magnitude of the vector field. (b) Find the magnetic flux density vector field inside the...
When 20 mA of current flows through a 0.5 cm radius and 180 turns solenoid, the...
When 20 mA of current flows through a 0.5 cm radius and 180 turns solenoid, the magnetic energy inside is 1.8 nJ. Calculate: a) Approximately the length of the solenoid. b) The solenoid's self-inductance.
Inductance 4. (4) Consider an air-core solenoid with a circular cross-section, radius 8.00 mm and length...
Inductance 4. (4) Consider an air-core solenoid with a circular cross-section, radius 8.00 mm and length 20.00 cm, and exactly 350 windings. If a current of 4.75 mA is sent through the solenoid (a) If the current is going through the coils clockwise as seen from above the coils, sketch the magnetic field that is generated (b) Determine the magnitude of the average magnetic field inside the solenoid (c) Determine the inductance of the solenoid
What current is required in the windings of a long solenoid that has 1446 turns uniformly...
What current is required in the windings of a long solenoid that has 1446 turns uniformly distributed over a length of 0.257 m in order to produce inside the solenoid a magnetic field of magnitude 0.0001243 T? The permeablity of free space is 1.25664 × 10−6 T m/A. Answer in units of mA.
35) A 4.0cm diameter, 15cm long solenoid it tightly wound from with 1500 turns. If a...
35) A 4.0cm diameter, 15cm long solenoid it tightly wound from with 1500 turns. If a current of 4 amps is passed through the solenoid, what is the strength of the magnetic field inside?
Consider a long, closely wound solenoid with 10,000 turns per meter. What current, in amperes, is...
Consider a long, closely wound solenoid with 10,000 turns per meter. What current, in amperes, is needed in the solenoid to produce a magnetic field inside the solenoid, near its center, that is 104 times the Earth’s magnetic field of 4.85 × 10-5 T?
A solenoidal coil with 29 turns of wire is wound tightly around another coil with 310...
A solenoidal coil with 29 turns of wire is wound tightly around another coil with 310 turns. The inner solenoid is 24.0 cm long and has a diameter of 2.00 cm . At a certain time, the current in the inner solenoid is 0.130 A and is increasing at a rate of 1800 A/s . A) For this time, calculate the average magnetic flux through each turn of the inner solenoid. B) For this time, calculate the mutual inductance of...
3. a. A solenoid consisting of 1500 turns of wire wound on a co-centric core of...
3. a. A solenoid consisting of 1500 turns of wire wound on a co-centric core of length 50cm and diameter 3.7cm is in magnetic circuit of another solenoid of the same length and the number of turns but with diameter of 5cm. Calculate the coupling co-efficient and the total inductance if both of them are connected in series opposing fashion. Assume free space conditions. (12 Marks) b. Briefly discuss the following terms of magneto statics: i. Relative Permeability; (2 Marks)...
Solve all parts of Question 1 clearly:
Two toroidal solenoids are wound around the same form so that
the magnetic field of one passes through the turns of the other.
Solenoid 1 has 800 turns, and solenoid 2 has 500 turns. When the
current in solenoid 1 is 6.52 A, the average flux through each turn
of solenoid 2 is 0.0320 Wb.
What is the mutual inductance of the pair of solenoids?
When the current in solenoid 2 is 6.52...
35) A 4.0cm diameter, 15cm long solenoid it tightly wound from with 1500 turns. If a current of 4 amps is passed through the solenoid, what is the strength of the magnetic field inside?
