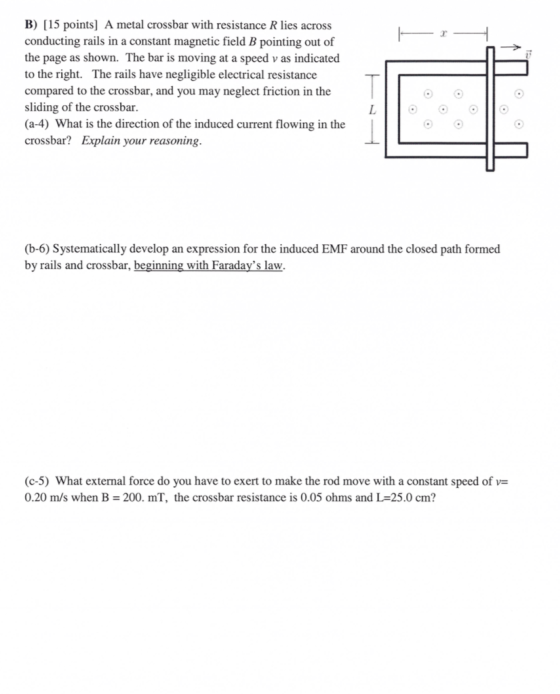

![B) [15 points] A metal crossbar with resistance R lies across conducting rails in a constant magnetic field B pointing out of the page as shown. The bar is moving at a speed v as indicated to the right. The rails have negligible electrical resistance compared to the crossbar, and you may neglect friction in the sliding of the crossbar (a-4) What is the direction of the induced current flowing in the crossbar? Explain your reasoning. (b-6) Systematically develop an expression for the induced EMF around the closed path formed by rails and crossbar, beginning with Faradays law. (c-5) What external force do you have to exert to make the rod move with a constant speed of v- 0.20 m/s when B 200. mT, the crossbar resistance is 0.05 ohms and L 25.0 cm?](http://img.homeworklib.com/questions/77773800-7f05-11eb-9ed5-6b20b73c4c9e.png?x-oss-process=image/resize,w_560)

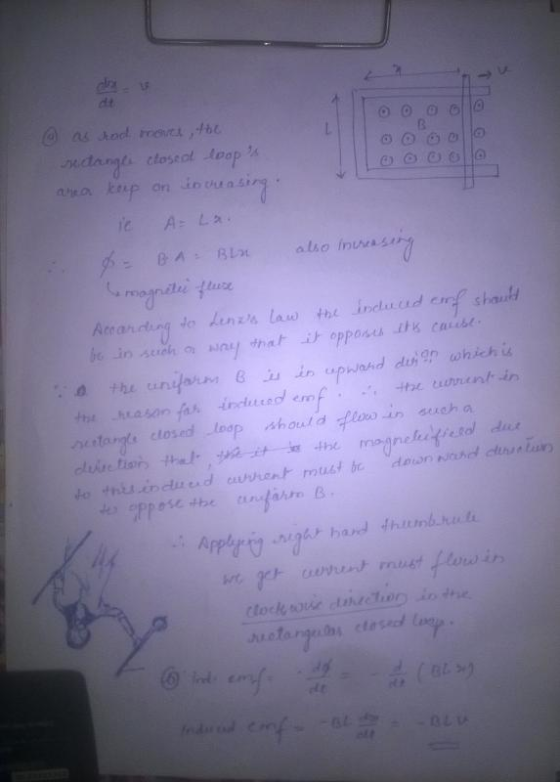

Homework Answers
Add Answer to:
A metal crossbar with resistance R lies across conducting rails in a constant magnetic field B...
A conducting rod is pulled horizontally with constant force F=3.20 N along a set of rails...
A conducting rod is pulled horizontally with constant force F=3.20 N along a set of rails separated by d-0.240 m. A uniform magnetic field B= 0.600 T is directed into the page. There is no friction between the rod and the rails, and the rod moves with constant velocity v= 4.50 m Using Faraday's Law, calculate the induced emf around the loop in the figure that is caused by the changing flux. Assign clockwise to be the positive direction for...
The figure shows a 11-cm-long metal rod pulled along twofrictionless, conducting rails at a constant...
The figure shows a 11-cm-long metal rod pulled along two
frictionless, conducting rails at a constant speed of 3.9 m/s. The
rails have negligible resistance, but the rod has a resistance of
0.65 Ω . (Figure 1)FigureThe figure shows a vertical rod sliding along a pair of
horizontal rails to the left at speed v. The rails are connected at
their left ends. Magnetic field B of 1.4 teslas is directed into
the page in the whole region.Part AWhat is...
A conducting rod is pulled horizontally with constant force F-4.40 N along a set of rails...
A conducting rod is pulled horizontally with constant force F-4.40 N along a set of rails separated by d= 0.340 m. A uniform magnetic field B=0.500 T is directed into the page. There is no friction between the rod and the rails, and therod moves with constant velocity v= 3.60 m/s Using Faraday's Law, calculate the induced emf around the loop in the figure that is caused by the changing flux. Assign clockwise to be the positive direction for emf...
Two parallel conducting rails with negligible resistance are connected at one end by a resistor of...
Two parallel conducting rails with negligible resistance are connected at one end by a resistor of resistance R, as shown in the figure. The rails are placed in a magnetic field Bext, which is perpendicular to the plane of the rails. This magnetic field is uniform and time independent. The distance between the rails is f. A conducting rod slides without friction on top of the two rails at constant velocity v . Three-dimensional view ext ind Top view Bext...
A conducting rod is pulled horizontally with constant force F= 4.80 N along a set of...
A conducting rod is pulled horizontally with constant force F=
4.80 N along a set of rails separated by d= 0.620 m. A uniform
magnetic field B= 0.500 T is directed into the page. There is no
friction between the rod and the rails, and the rod moves with
constant velocity v= 6.60 m/s.
A.) Using Faraday's Law, calculate the induced emf around the
loop in the figure that is caused by the changing flux. Assign
clockwise to be the...
Question 7 The conducting rod shown in the figure has length L and is being pulled along horlizontal, frictionless, conducting rails at a constant metal strip. A uniform magnetic field, directed...
Question 7 The conducting rod shown in the figure has length L and is being pulled along horlizontal, frictionless, conducting rails at a constant metal strip. A uniform magnetic field, directed of the magnetic fieid is 8-1.0 T. (a) What is the magnitude Assume that L15 cm, the speed of the rod is v -5.9 m/s, and the magnitude of emf induced in voits in the rod? (b) What is the current in amperes in the conducting loop? Assume that...
A conducting rod is pulled horizontally with constant force F= 3.90 N along a set of...
A conducting rod is pulled horizontally with constant force F= 3.90 N along a set of rails separated by d= 0.220 m. A uniform magnetic field B= 0.800 T is directed, into the page. There is no friction between the rod and the rails, and the rod moves with constant velocity v= 3.80 m/s Using Faraday's Law, calculate the induced emf around the loop in the figure that is caused by the changing flux. Assign clockwise to be the positive...
A metal rod of length l = 19 cm moves at constant speed v on rails of negligible resistance that terminate in a resistor R = 0.2
A metal rod of length l = 19 cm moves at constant speed v on rails of negligible resistance
that terminate in a resistor R = 0.2 ?, as shown in the figure above. A uniform and constant magnetic
field B = 1 T ia normal to the plane of the rails. The induced current is I =1 A and flows in the direction shown. Find :a) the speed v;m/sb) the external force needed to keep the rod moving at v.N to the right.
A metal rod lies across frictionless parallel rails in a uniform magnetic field that points normal...
A metal rod lies across frictionless parallel rails in a uniform magnetic field that points normal to the plane of the rails. The rails are connected at one end, but not the other, so that a current can pass through the rod. The rod moves to the right at speed v, so that the area enclosed by the current loop is increasing linearly with time. In order for the emf around the circuit to be zero, the magnitude of the...
A 0.480 kg, 37.5 cm long metal rod is sliding down two metal rails that are inclined 42.0° to the horizontal. The r...
A 0.480 kg, 37.5 cm long metal rod is sliding down two metal rails that are inclined 42.0° to the horizontal. The rails are connected at the bottom so that the metal rod and rails form a loop that has a resistance of 52.0 Ω There is a 2.00 T vertical magnetic field throughout the region of the rails. The rod starts from rest and there is no friction between the rod and the rails. a) (3 points) Find an...
A conducting rod is pulled horizontally with constant force F=3.20 N along a set of rails separated by d-0.240 m. A uniform magnetic field B= 0.600 T is directed into the page. There is no friction between the rod and the rails, and the rod moves with constant velocity v= 4.50 m Using Faraday's Law, calculate the induced emf around the loop in the figure that is caused by the changing flux. Assign clockwise to be the positive direction for...
The figure shows a 11-cm-long metal rod pulled along two
frictionless, conducting rails at a constant speed of 3.9 m/s. The
rails have negligible resistance, but the rod has a resistance of
0.65 Ω . (Figure 1)FigureThe figure shows a vertical rod sliding along a pair of
horizontal rails to the left at speed v. The rails are connected at
their left ends. Magnetic field B of 1.4 teslas is directed into
the page in the whole region.Part AWhat is...
A conducting rod is pulled horizontally with constant force F-4.40 N along a set of rails separated by d= 0.340 m. A uniform magnetic field B=0.500 T is directed into the page. There is no friction between the rod and the rails, and therod moves with constant velocity v= 3.60 m/s Using Faraday's Law, calculate the induced emf around the loop in the figure that is caused by the changing flux. Assign clockwise to be the positive direction for emf...
Two parallel conducting rails with negligible resistance are connected at one end by a resistor of resistance R, as shown in the figure. The rails are placed in a magnetic field Bext, which is perpendicular to the plane of the rails. This magnetic field is uniform and time independent. The distance between the rails is f. A conducting rod slides without friction on top of the two rails at constant velocity v . Three-dimensional view ext ind Top view Bext...
A conducting rod is pulled horizontally with constant force F=
4.80 N along a set of rails separated by d= 0.620 m. A uniform
magnetic field B= 0.500 T is directed into the page. There is no
friction between the rod and the rails, and the rod moves with
constant velocity v= 6.60 m/s.
A.) Using Faraday's Law, calculate the induced emf around the
loop in the figure that is caused by the changing flux. Assign
clockwise to be the...
Question 7 The conducting rod shown in the figure has length L and is being pulled along horlizontal, frictionless, conducting rails at a constant metal strip. A uniform magnetic field, directed of the magnetic fieid is 8-1.0 T. (a) What is the magnitude Assume that L15 cm, the speed of the rod is v -5.9 m/s, and the magnitude of emf induced in voits in the rod? (b) What is the current in amperes in the conducting loop? Assume that...
A conducting rod is pulled horizontally with constant force F= 3.90 N along a set of rails separated by d= 0.220 m. A uniform magnetic field B= 0.800 T is directed, into the page. There is no friction between the rod and the rails, and the rod moves with constant velocity v= 3.80 m/s Using Faraday's Law, calculate the induced emf around the loop in the figure that is caused by the changing flux. Assign clockwise to be the positive...
A metal rod of length l = 19 cm moves at constant speed v on rails of negligible resistance
that terminate in a resistor R = 0.2 ?, as shown in the figure above. A uniform and constant magnetic
field B = 1 T ia normal to the plane of the rails. The induced current is I =1 A and flows in the direction shown. Find :a) the speed v;m/sb) the external force needed to keep the rod moving at v.N to the right.
A metal rod lies across frictionless parallel rails in a uniform magnetic field that points normal to the plane of the rails. The rails are connected at one end, but not the other, so that a current can pass through the rod. The rod moves to the right at speed v, so that the area enclosed by the current loop is increasing linearly with time. In order for the emf around the circuit to be zero, the magnitude of the...
A 0.480 kg, 37.5 cm long metal rod is sliding down two metal rails that are inclined 42.0° to the horizontal. The rails are connected at the bottom so that the metal rod and rails form a loop that has a resistance of 52.0 Ω There is a 2.00 T vertical magnetic field throughout the region of the rails. The rod starts from rest and there is no friction between the rod and the rails. a) (3 points) Find an...
