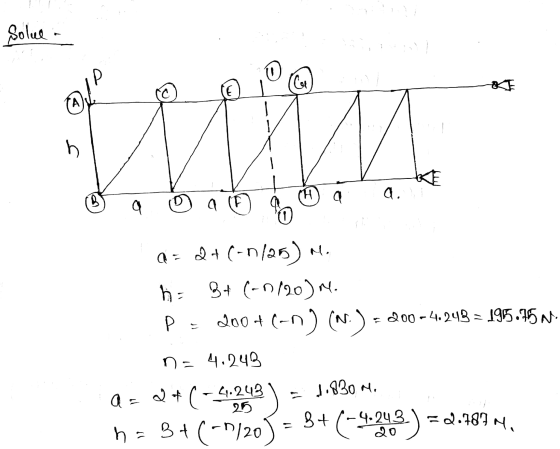

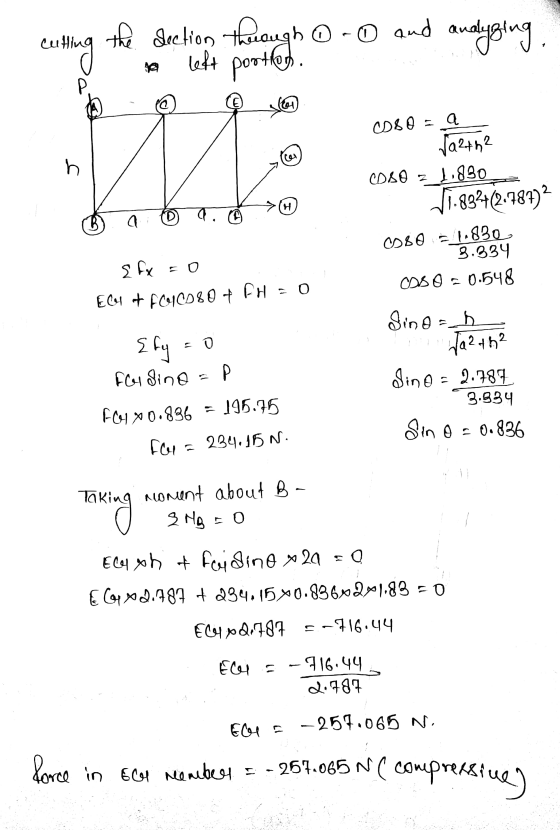

n=4.243

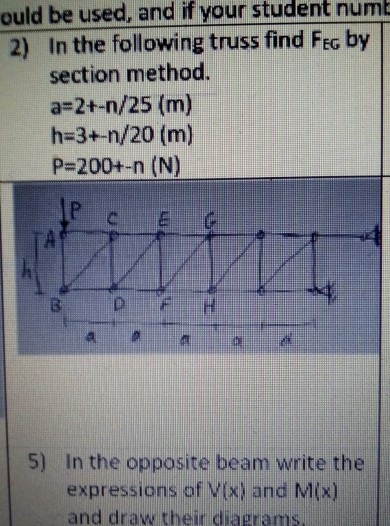

ould be used, and if your student numb 2) In the following truss find Feg...
n is equal to the last two digit of a student number so in my case...
n is equal to the last two digit of a student number
so in my case it is 83 so i have to find the square root of n
the values we asked to find above is
a= 1.6356
h= 2.5445
p= 190.89
2) In the following truss find Feg by section method. a=2+-n/25 (m) h=3+-n/20 (m) P=200+-n (N) IP C E B D H a a
