Question

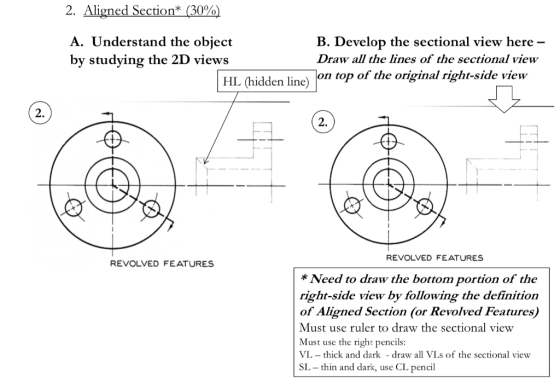

2. Aligned Section* (30%) A. Understand the object by studying the 2D views HL (hidden line) B. Develop the sectional view here - Draw all the lines of the sectional view on top of the original right-side view REVOLVED FEATURES REVOLVED FEATURES * Need to draw the bottom portion of the right-side view by following the definition of Aligned Section (or Revolved Features) Must use ruler to draw the sectional view Must use the right pencils: VL - thick and dark - draw all VLs of the sectional view SL-thin and dark, use CL pencil

Answer 1

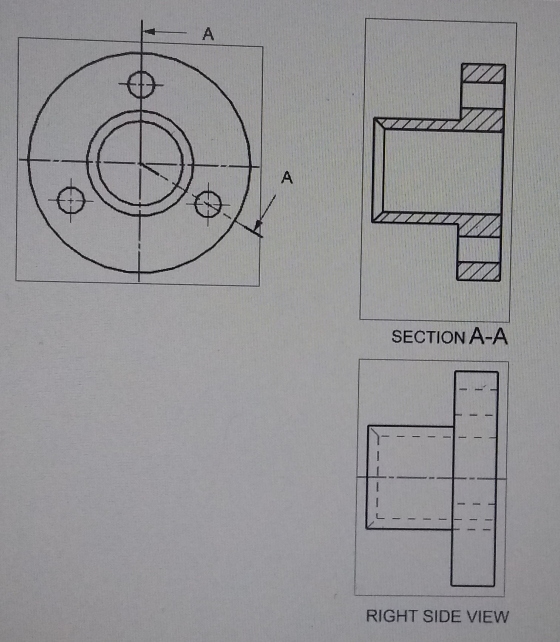

Please find below the Sectional view and bottom portion of Right Side view from the aligned section:

V ) SECTION A-A - - - - - RIGHT SIDE VIEW
