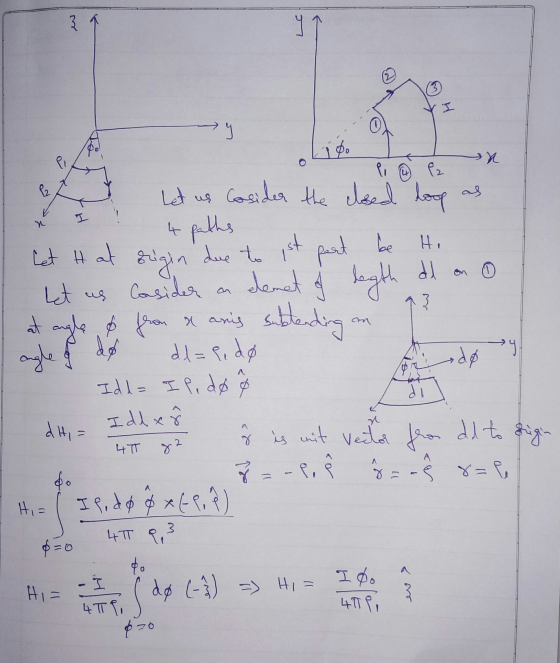

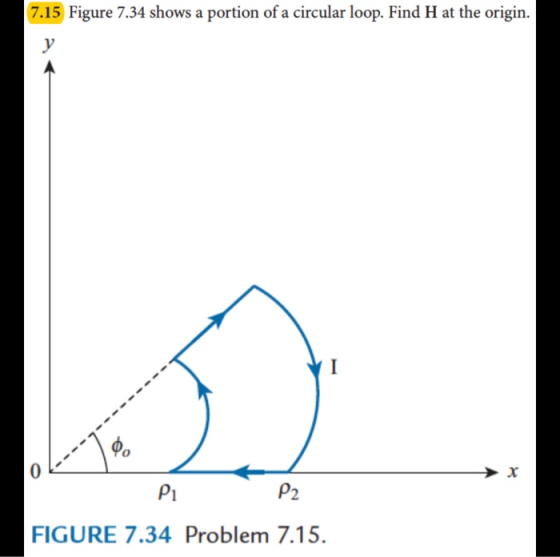

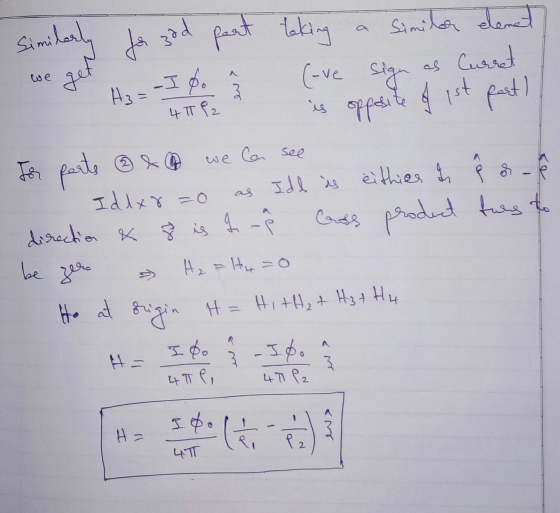

7.15 Figure 7.34 shows a portion of a circular loop. Find H at...
Please provide full solution with clear explanation for the following: A square conducting loop of side...
Please provide full solution with clear explanation for the
following:
A square conducting loop of side 4 cm lies on the z-0 plane and is centered at the origin. If it carries a current 5 mA in the counterclockwise direction, find H at the center of the loop.
5. Biot-Savart Law Shown in the figure below is a circular loop of current. Your job...
5. Biot-Savart Law Shown in the figure below is a circular loop of current. Your job is to use the Biot-Savart Law to determine the magnetic field at the point P. Perhaps you find case poor artistic skills leave you uncertain, then the following short paragraph might lelp. the figure familiar and easy to interpret... REAT, just solve it. In The portiou of the loop that is closest to you is drawn as a solid are. The portion of the...
The following figure shows you a circular loop with radius 10 cm. A magnetic field is...
The following figure shows you a circular loop with radius 10 cm. A magnetic field is DECREASING from 1.5 T to 0.5 T in 4 mili - seconds. The angle 0 = 60 degrees.(12 points) • Compute the induced EMF in the loop. • If the resistance of the loop is of 5 ohms, what is the value of the induced current. • What is the direction of the induced current?
3. The following figure shows you a circular loop with radius 10 cm. A magnetic field...
3. The following figure shows you a circular loop with radius 10 cm. A magnetic field is DECREASING from 1.5 T to 0.5 T in 4 mili - seconds. The angle 8 = 60 degrees. Compute the induced EMF in the loop. • If the resistance of the loop is of 5 ohms, what is the value of the induced current. • What is the direction of the induced current?
3. Find the magnetic field at a distance H on the axis of a circular loop...
3. Find the magnetic field at a distance H on the axis of a circular loop of wire of radius R carrying a current I.
A circular loop is placed in air (E-H) to measure the electromagnetic field from a test system at...
Please show all work clearly, thank you!
A circular loop is placed in air (E-H) to measure the electromagnetic field from a test system at (20%)2. frequency 5xx10's, see figure below. The region is source free, and the loop lies on the xy plane and has a radius a-0.5 m and resistance R-0.1 Ω. Due to an induced emf, a current flows in the loop and is measured to be 20 mA (peak magnitude is 20 mA). The E-field is...
PLEASE ANSWER THIS FAST! Example 22.6 Magnetic Field on the Axis of a Circular Current Loop...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial...
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of 400 turns and radius R = 130 cm, separated by a distance R = 130 cm. The two coils carry equal currents i = 45 A in the same direction. Find the magnitude of the net magnetic field at P, on the axis midway (R/2) between the coils. urus B above circular loop=mu i R^2/2(R^2 + z^2)^3/2
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial...
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of 300 turns and radius R = 130 cm, separated by a distance R = 130 cm. The two coils carry equal currents i = 35 A in the same direction. Find the magnitude of the net magnetic field at P, on the axis midway (R/2) between the coils. Old -R B above circular loop=muo i R^2/2(R^2 + 2^2)^3/2
Consider the circular wire loop shown in the figure. The wire loop carries an electric current...
Consider the circular wire loop shown in the figure. The wire loop carries an electric current of I 15.5 A 0 1 2 3 4 5 6 7 89 10 11 x (cm) Uhaber tr g ma onterdecir theonagnetic field at the center of the circular loop? Please, notice that the circle passes through Submit Answer Tries 0/12 Value of the forcgune thet lo mignt tbeperen efectric curent -is placed in an external magnetic field of 1.43 T. what is...
Please provide full solution with clear explanation for the
following:
A square conducting loop of side 4 cm lies on the z-0 plane and is centered at the origin. If it carries a current 5 mA in the counterclockwise direction, find H at the center of the loop.
5. Biot-Savart Law Shown in the figure below is a circular loop of current. Your job is to use the Biot-Savart Law to determine the magnetic field at the point P. Perhaps you find case poor artistic skills leave you uncertain, then the following short paragraph might lelp. the figure familiar and easy to interpret... REAT, just solve it. In The portiou of the loop that is closest to you is drawn as a solid are. The portion of the...
The following figure shows you a circular loop with radius 10 cm. A magnetic field is DECREASING from 1.5 T to 0.5 T in 4 mili - seconds. The angle 0 = 60 degrees.(12 points) • Compute the induced EMF in the loop. • If the resistance of the loop is of 5 ohms, what is the value of the induced current. • What is the direction of the induced current?
3. The following figure shows you a circular loop with radius 10 cm. A magnetic field is DECREASING from 1.5 T to 0.5 T in 4 mili - seconds. The angle 8 = 60 degrees. Compute the induced EMF in the loop. • If the resistance of the loop is of 5 ohms, what is the value of the induced current. • What is the direction of the induced current?
3. Find the magnetic field at a distance H on the axis of a circular loop of wire of radius R carrying a current I.
Please show all work clearly, thank you!
A circular loop is placed in air (E-H) to measure the electromagnetic field from a test system at (20%)2. frequency 5xx10's, see figure below. The region is source free, and the loop lies on the xy plane and has a radius a-0.5 m and resistance R-0.1 Ω. Due to an induced emf, a current flows in the loop and is measured to be 20 mA (peak magnitude is 20 mA). The E-field is...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of 400 turns and radius R = 130 cm, separated by a distance R = 130 cm. The two coils carry equal currents i = 45 A in the same direction. Find the magnitude of the net magnetic field at P, on the axis midway (R/2) between the coils. urus B above circular loop=mu i R^2/2(R^2 + z^2)^3/2
The figure shows an arrangement known as a Helmholtz coil. It consists of two circular coaxial coils, each of 300 turns and radius R = 130 cm, separated by a distance R = 130 cm. The two coils carry equal currents i = 35 A in the same direction. Find the magnitude of the net magnetic field at P, on the axis midway (R/2) between the coils. Old -R B above circular loop=muo i R^2/2(R^2 + 2^2)^3/2
Consider the circular wire loop shown in the figure. The wire loop carries an electric current of I 15.5 A 0 1 2 3 4 5 6 7 89 10 11 x (cm) Uhaber tr g ma onterdecir theonagnetic field at the center of the circular loop? Please, notice that the circle passes through Submit Answer Tries 0/12 Value of the forcgune thet lo mignt tbeperen efectric curent -is placed in an external magnetic field of 1.43 T. what is...
