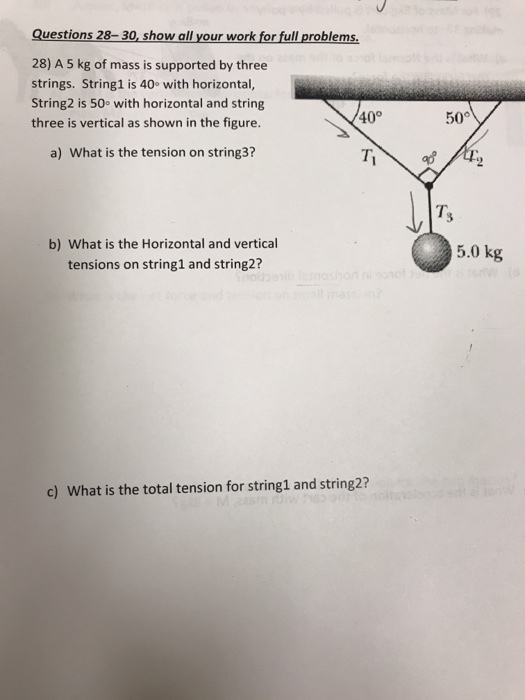

Questions 28-30, show all your work for full problems. 28) A 5 kg of mass is...

Question

Question

science physics

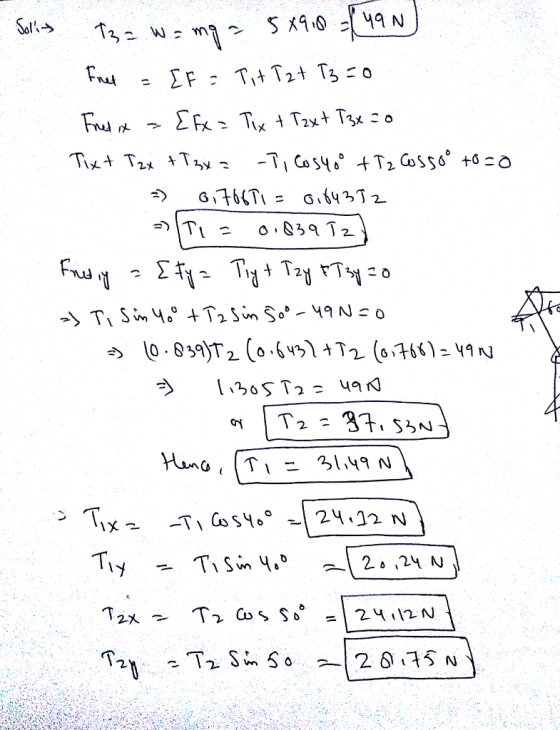

Answer 1

Answer #1

Huna 래

Answer 2
