A 2.0 cm tall object is placed 5.0 cm in front of a +12 diopter lens.

A) draw a ray diagram for this situation

B) whwere is the object located? Compare your ray diagram distance with the calculated value.

C) What is the linear magnification?

science physics

Answer 1

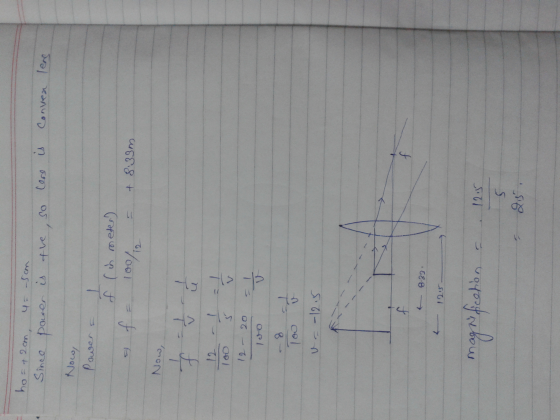

Answer #1

Answer 2

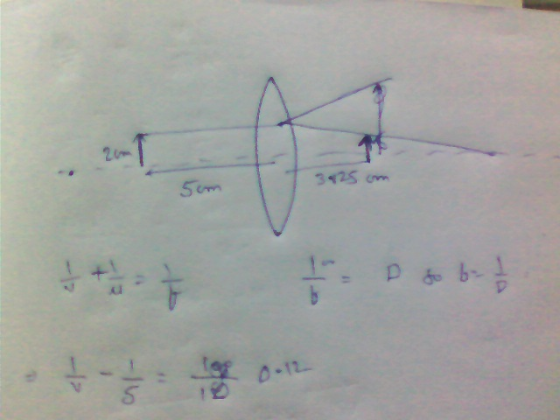

Answer #2

Answer 3

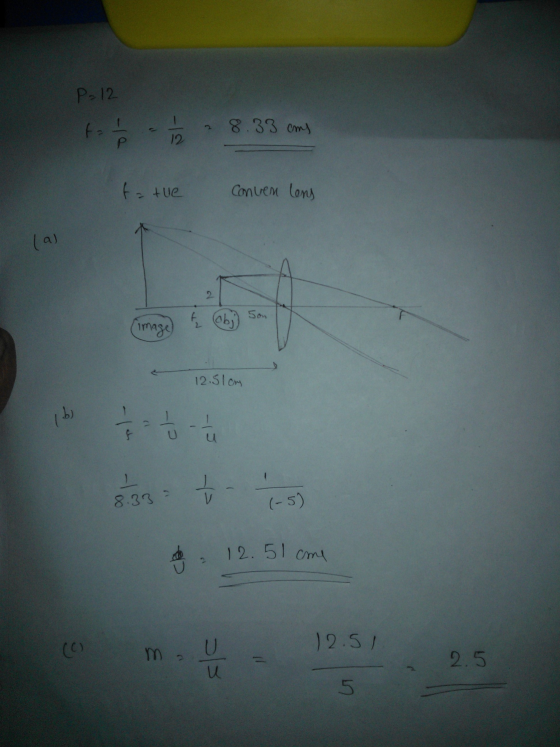

Answer #3

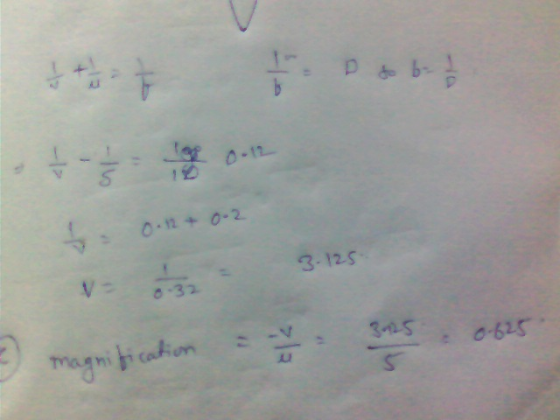

Answer 4

Similar Homework Help Questions

A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a fo...

A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a focal length of 6.0 cm is located 8.0 cm behind the diverging lens. (As viewed from the side, from left to right, the sequence is object - diverging lens - converging lens - observer. Rays then travel from left to right through the system.) (a) Use ray tracing to draw image 1 and image...
A 4.0 cm tall object is placed 12.0 cm in front of a diverging lens. When...

A 4.0 cm tall object is placed 12.0 cm in front of a diverging lens. When the image of the object is measured it is found to measure 1.3 cm in height. What is the focal length of the lens? Draw a ray diagram with the object, image and focal points labeled.
An object 2.0 cm tall is placed at different locations in front of a concave mirror...

An object 2.0 cm tall is placed at different locations in front of a concave mirror whose radius of curvature is 30 cm. Determine the location of the image and its characteristics when the object distance is 30 cm and 10 cm using (a) The ray diagrams (Note: Draw the ray diagram on a sheet paper using Parallel ray, Chief ray and focal ray) (b) The mirror equation

A 2.0 cm tall object is 15cm in front of a converging lens whose focal length...

A 2.0 cm tall object is 15cm in front of a converging lens whose focal length is 20 cm. a. what is the image distance? b. what is the magnification? c. what is the height of the image?
A 4.0-cm tall object is placed 50.0 cm from a diverging lens having a focal length...

A 4.0-cm tall object is placed 50.0 cm from a diverging lens having a focal length of magnitude 25.0 cm. Draw the ray diagram for this situation. What is the location and height of the image? Is the image real or virtual? • Draw an optical axis with the lens centered on the axis. Represent the object at the correct distance from the lens • Draw the three "special rays" from the top of the object • Extend the rays...
An object is placed 6.0 cm in front of a lens of focal length 5.0 cm....

An object is placed 6.0 cm in front of a lens of focal length 5.0 cm. Another lens of focal length 4.0 cm is placed 2.4 cm behind the first lens. (a) Where is the final image? distance cm location ---Select--- behind the second lens in front of the second lens, but between lenses in front of the first lens Is the image real or virtual? virtualreal (b) What is the overall magnification?

Suppose a 1.5 cm tall object is placed 3.50 cm in front of a diverging lens...

Suppose a 1.5 cm tall object is placed 3.50 cm in front of a diverging lens with focal length -2.00 cm. Draw a ray diagram that accurately shows the image. The image is {a. upright b. inverted}. The image is {a. real b. virtual}.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...

A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...

A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.

A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...

A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
