Homework Answers

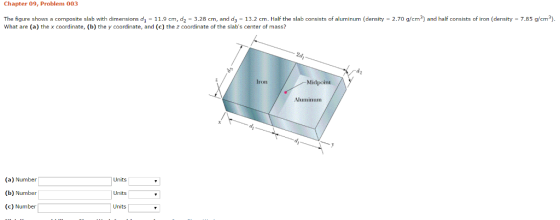

m1 is iron slab mass = d X V
m1 = 7.85 X 11.9 X 3.28 X 13.2
m1 = 4044.49 g
( x1 , y1 , z1 ) = ( - d3 / 2 , d1 / 2 , d2 / 2 )
= ( - 6.6 , 5.95 , 1.64 )
m2 is alluminium mass = d X V
= 2.7 X 11.9 X 3.28 X 13.2
m2 = 1391.1 g
( x2 , y2 , z2 ) = ( - d3 / 2 , d1 + (d1 / 2) , d2 / 2 )
= ( - 6.6 , 17.85 , 1.64 )
now
Xcm = m1 x1 + m2 x2 / (m1+ m2 )
Xcm = 4044.49 X ( - 6.6 ) + 1391.1 X ( - 6.6 ) / (4044.49 + 1391.1 )
Xcm = - 6.6 cm
Ycm = m1 y1 + m2 y2 / (m1+ m2 )
Ycm = 4044.49 X ( 5.95 ) + 1391.1 X (17.85 ) / (4044.49 + 1391.1 )
Ycm = 8.99 cm
Zcm = m1 z1 + m2 z2 / (m1+ m2 )
Zcm = 4044.49 X ( 1.64 ) + 1391.1 X ( 1.64 ) / (4044.49 + 1391.1 )
Zcm = 1.64 cm
