What is the Thevenin resistance in kilo ohms seen by the capacitance in Figure 9 for...

Question

Question

What is the Thevenin resistance in kilo ohms seen by the capacitance in Figure 9 for t>0? 100 F Figure 9

engineering Electrical-Engineering

Answer 1

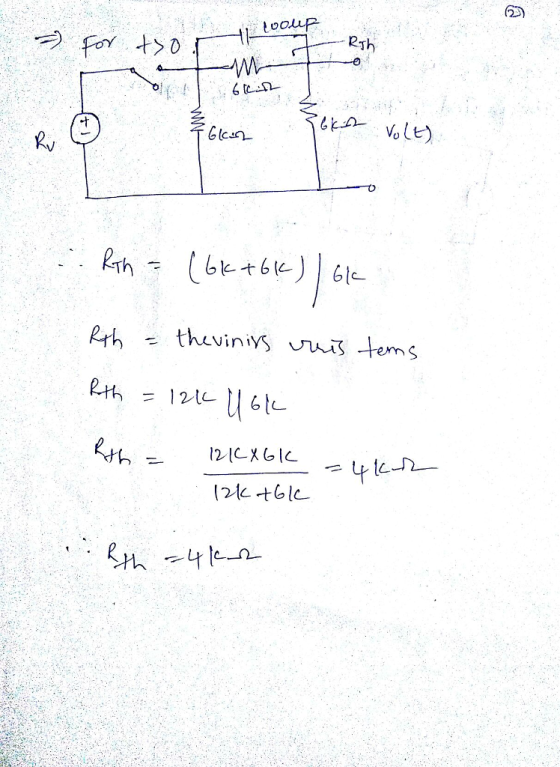

Answer #1

Answer 2
