Homework Answers

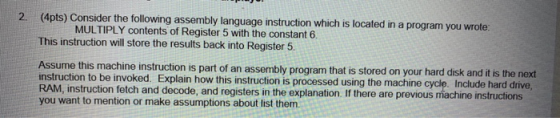

MULTIPLY contents of Register 5 with the constant 6
Assumption - The data is in the main memory.
The above instruction is processed as follows :
- First the instruction will be fetched from the main memory.
- Then this instruction is decoded.
- Next the instruction will be executed. Now let us take for example the 8086 assembly language. The above instruction is written as follows : MOV AX,R5 MOV BX,6 MULAB This means that we first load the contents of R5 (i.e. Register 5) to AX (Accumalator), then we load the constant 6 in BX and finally we execute the instruction MULAB.
- So similarly after execution of the instruction, the results of the instruction will be saved and stored.
- And this process will continue if there is more instructions to be processed.
