Please show rotation and balancing factors 1) Insert 13,10,15,5,11,16,4,6,7 in an AVL Tree 2) Insert 43,18,22,9,21,6,8...
Please show rotation and balancing factors

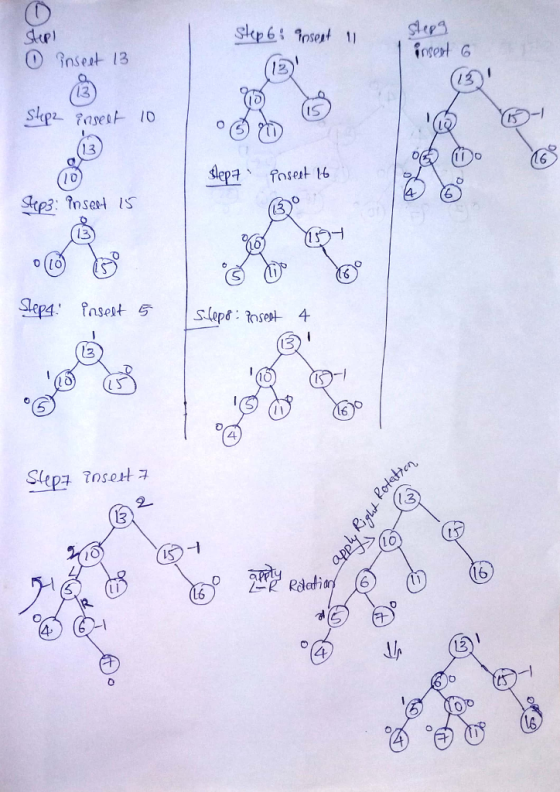

1) Insert 13,10,15,5,11,16,4,6,7 in an AVL Tree

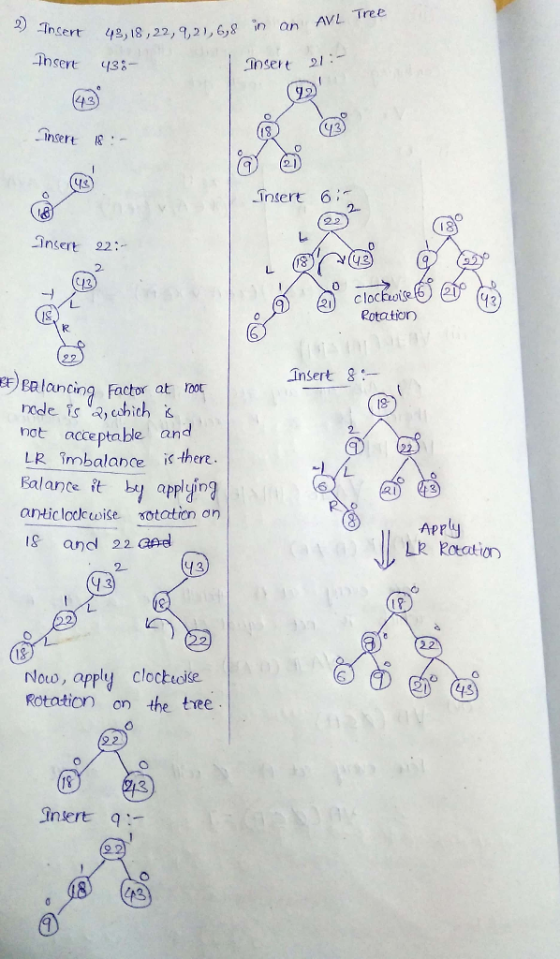

2) Insert 43,18,22,9,21,6,8 in an AVL Tree

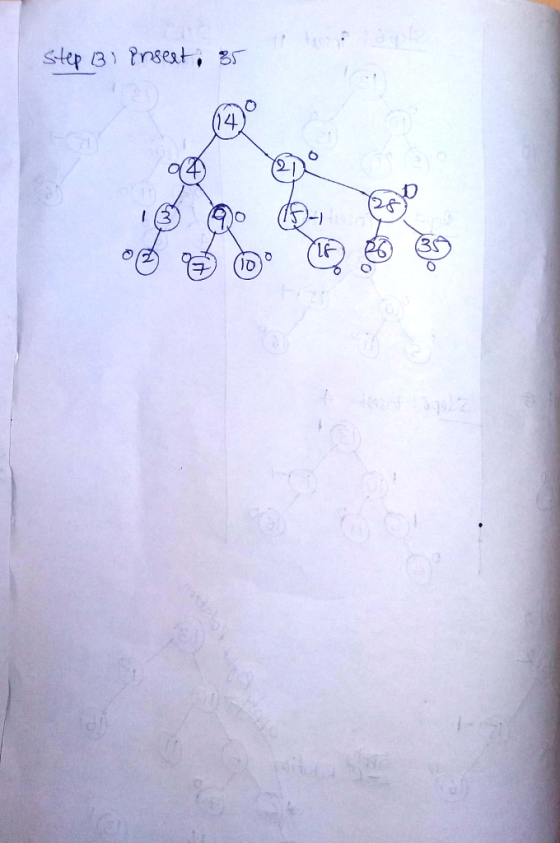

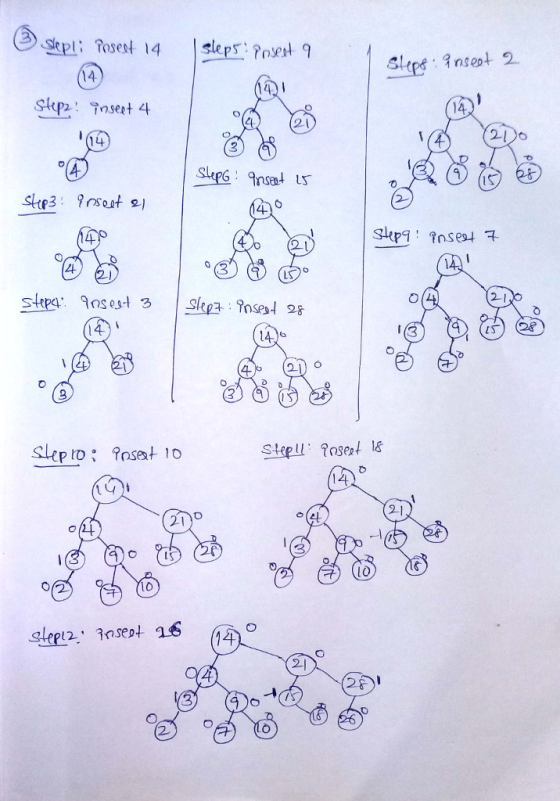

3) Insert 14, 4, 21, 3, 9, 15, 28, 2, 7, 10, 18, 26, 35 in an AVL Tree. Also, Remove 2, 3, 10, 18 from the AVL Tree.
Homework Answers
