Homework Answers
Add Answer to:

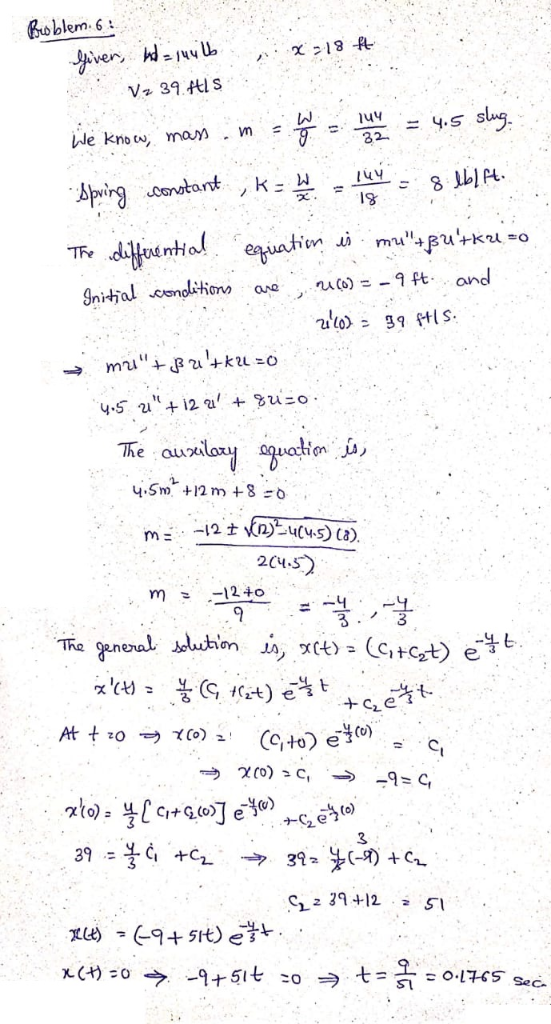

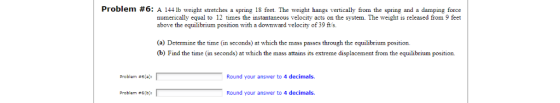

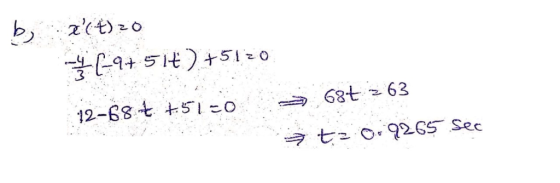

Problem #6: A 144lb weight stretches a spring 18 feet. The weight hangs vertically from the...
A force of 15 pounds stretches a spring by 3 feet. Assuming the spring exhibits a...
A force of 15 pounds stretches a spring by 3 feet. Assuming the spring exhibits a damping force numerically equivalent to its instantaneous velocity, determine the equation of motion if the spring is released from the equilibrium position with an upward velocity of 3 feet-per-second.
A mass weighing 8 pounds stretches a spring 1 foot. The system is then immersed in...
A mass weighing 8 pounds stretches a spring 1 foot. The system is then immersed in a medium that offers a damping force numerically equal to 3 times the instantaneous velocity. The mass is initially released from the equilibrium position with a downward velocity of 4 ft/s. Find the spring constant ?, mass ? and the damping constant ? Find ? and ?, and the roots of the characteristic equation: Write the initial conditions: Estimate the time when the mass...
A 4 foot spring measures 8 feet long after a mass weighing 8 pounds is attached...
A 4 foot spring measures 8 feet long after a mass weighing 8 pounds is attached to it. The medium through which the mass moves offers a damping force numerically equal to 2^1/2 times the instantaneous velocity. Find the equation of motion if the mass is initially released from the equilibrium position with a downward velocity of 9 ft/a. (Use g =32 ft/s^2 for the acceleration due to gravity.) a) Find the time at which the mass attains its extreme...
2. (24 pts) A 4-foot spring measures 6 feet long after a mass weighing 8 pounds...
2. (24 pts) A 4-foot spring measures 6 feet long after a mass weighing 8 pounds is attached to it. The medium through which the mass moves offers a damping force numerically equal to 1.5 times the instantaneous velocity. If the mass is initially released from the equilibrium position with a downward velocity of 7 ft/s. (Use g = 32 ft/s2 for the acceleration due to gravity.) (a) (8 pts) Find the equation of motion. (b) (6 pts) Find the...
6. A 32-pound object stretches a spring 8 feet to reach equilibrium. The object is then...
6. A 32-pound object stretches a spring 8 feet to reach equilibrium. The object is then pulled to a point that is I foot below the equilibrium position and released from with an upward velocity of 6 feet per second Assume a damping force of 5. What is the position of the object when it attains its maximum displacement above the equilibrium position? Express your answer to 4 decimal places
(7 points) 14. A mass weighing 4 pounds stretches a spring 2 feet. The system is...
(7 points) 14. A mass weighing 4 pounds stretches a spring 2 feet. The system is submerged in a medium which offers a damping force that is numerically equal to the instantaneous velocity. The mass is initially released from a point 1 foot above the equilibrium position with a downward velocity of 8 ft/s. Find the equation of motion, ä(t). What type of damped motion is this system?
1. A mass weighing 8 pounds is attached to a 4 foot long spring and stretches it to 8 feet long. ...
1. A mass weighing 8 pounds is attached to a 4 foot long spring and stretches it to 8 feet long. The medium offers a damping force equal to 0.5 times the instantaneous velocity. Find the equation of motion if the mass is released from rest at a position 18 inches above the equilibrium.
1. A mass weighing 8 pounds is attached to a 4 foot long spring and stretches it to 8 feet long. The medium offers a damping...
1. A 4 lb mass of weight stretch 2 feet a spring. If a damping force...
1. A 4 lb mass of weight stretch 2 feet a spring. If a damping force numerically equal to the instantaneous speed it acts on the counterweight, deducing the equation of motion if the mass is released 1 ft. per tenth of the equilibrium point with a velocity toward below 8 ft/s and also find the amplitude, period and vibration frequency of the movement. Indicate which case of damping occurs. Solve the problem by applying transform from Laplace
Q4. A mass of 1 slug, when attached to a spring, stretches it 2 feet and...
Q4. A mass of 1 slug, when attached to a spring, stretches it 2 feet and then comes to rest in the equilibrium position. Starting att 0, an external force equal to f(t) is applied to the system. Given that the surrounding medium offers a damping force that is numerically equal to 8 times the instantaneous velocity, solve the resulting initial value problem when (a) f(t) 0 (b) s) e sin 4t. Also determine the limit lim r()
A mass weighing 4 pounds is attached to a spring whase constant is 2 b/ft. The medium offers a damping force that is numerically equal to the instantaneous velocity. The mass is initially released fr...
A mass weighing 4 pounds is attached to a spring whase constant is 2 b/ft. The medium offers a damping force that is numerically equal to the instantaneous velocity. The mass is initially released from a point 1 foot above the equilbrium position with a downward velocity of 10 ft/s. Determine the time at which the mass passes through the equilibrium position. (Use g 32 ft/s2 for the acceleration due to gravity.) Find the time after the mass passes through...
2. (24 pts) A 4-foot spring measures 6 feet long after a mass weighing 8 pounds is attached to it. The medium through which the mass moves offers a damping force numerically equal to 1.5 times the instantaneous velocity. If the mass is initially released from the equilibrium position with a downward velocity of 7 ft/s. (Use g = 32 ft/s2 for the acceleration due to gravity.) (a) (8 pts) Find the equation of motion. (b) (6 pts) Find the...
6. A 32-pound object stretches a spring 8 feet to reach equilibrium. The object is then pulled to a point that is I foot below the equilibrium position and released from with an upward velocity of 6 feet per second Assume a damping force of 5. What is the position of the object when it attains its maximum displacement above the equilibrium position? Express your answer to 4 decimal places
(7 points) 14. A mass weighing 4 pounds stretches a spring 2 feet. The system is submerged in a medium which offers a damping force that is numerically equal to the instantaneous velocity. The mass is initially released from a point 1 foot above the equilibrium position with a downward velocity of 8 ft/s. Find the equation of motion, ä(t). What type of damped motion is this system?
1. A mass weighing 8 pounds is attached to a 4 foot long spring and stretches it to 8 feet long. The medium offers a damping force equal to 0.5 times the instantaneous velocity. Find the equation of motion if the mass is released from rest at a position 18 inches above the equilibrium.
1. A mass weighing 8 pounds is attached to a 4 foot long spring and stretches it to 8 feet long. The medium offers a damping...
1. A 4 lb mass of weight stretch 2 feet a spring. If a damping force numerically equal to the instantaneous speed it acts on the counterweight, deducing the equation of motion if the mass is released 1 ft. per tenth of the equilibrium point with a velocity toward below 8 ft/s and also find the amplitude, period and vibration frequency of the movement. Indicate which case of damping occurs. Solve the problem by applying transform from Laplace
Q4. A mass of 1 slug, when attached to a spring, stretches it 2 feet and then comes to rest in the equilibrium position. Starting att 0, an external force equal to f(t) is applied to the system. Given that the surrounding medium offers a damping force that is numerically equal to 8 times the instantaneous velocity, solve the resulting initial value problem when (a) f(t) 0 (b) s) e sin 4t. Also determine the limit lim r()
A mass weighing 4 pounds is attached to a spring whase constant is 2 b/ft. The medium offers a damping force that is numerically equal to the instantaneous velocity. The mass is initially released from a point 1 foot above the equilbrium position with a downward velocity of 10 ft/s. Determine the time at which the mass passes through the equilibrium position. (Use g 32 ft/s2 for the acceleration due to gravity.) Find the time after the mass passes through...
