Determine the magnitude and phase angle of the circuit current shown 100 HA 3 mA lc...

Question

Question

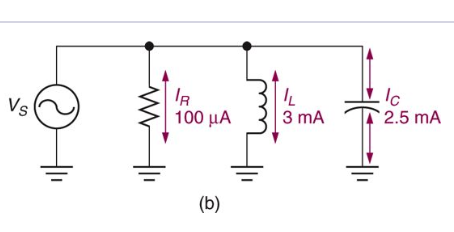

Determine the magnitude and phase angle of the circuit current shown

100 HA 3 mA lc 2.5 mA

engineering Electrical-Engineering

Answer 1

Answer #1

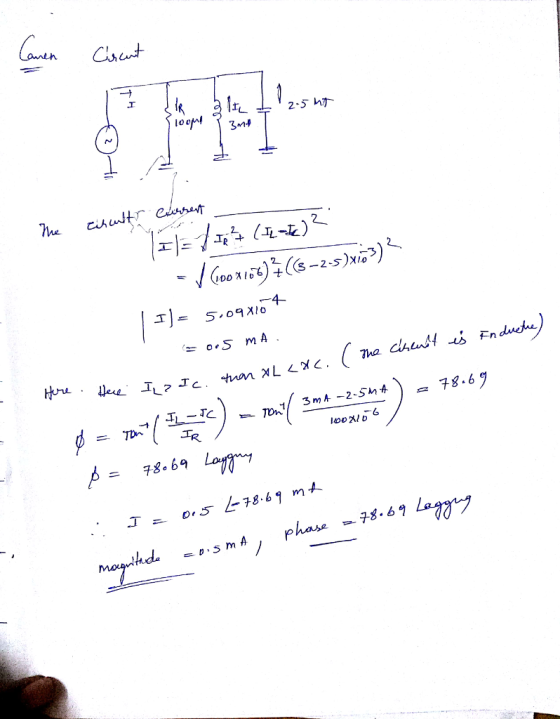

れ loopy 78.69 la

Answer 2

Similar Homework Help Questions

Determine the phase angle between voltage and current for the following circuit (#2b). Thank you for...

Determine the phase angle between voltage and current for the following circuit (#2b). Thank you for the help. Determine phase angle between voltage and current. Find Z I total V_R V_C Find V_R and V_L for Determine following
An LC circuit (as shown to the right) has an inductance of 20 mH and a...

An LC circuit (as shown to the right) has an inductance of 20 mH and a capacitance of 5.0 mu F. At time t = 0 the charge on the capacitor is 3.0 mu C and the current in the circuit is 7.0 mA. The total energy in the LC circuit is: 4.1 10^-7 J. 4.9 10^-7J. 9.0 10^-7J. 1.4 10^-6J. 2.8 10^-6J.
Determine and graph the output voltage magnitude, and phase versus frequency for the circuit shown below....

Determine and graph the output voltage magnitude, and phase versus frequency for the circuit shown below. The voltage source Vi (t) -1 sin (wt) volts. In your numerical calculations, limit the frequency range from 100 KHz to 250 KHz. out R1 20k 1000uH V1 C11n L1 0

An oscillating LC circuit has a current amplitude of 9.70 mA, a potential amplitude of 274...

An oscillating LC circuit has a current amplitude of 9.70 mA, a potential amplitude of 274 mV, and a capacitance of 233 nF. What are (a) the period of oscillation, (b) the maximum energy stored in the capacitor, (c)the maximum energy stored in the inductor, (d) the maximum rate at which the current changes, and (e) the maximum rate at which the inductor gains energy?
In an R-L-C series circuit, the magnitude of the phase angle is 40.0o, with the source...

In an R-L-C series circuit, the magnitude of the phase angle is 40.0o, with the source voltage behind the current. The reactance of the capacitor is 300 ohms, and the resistor resistance is 150 ohms. The average power delivered by the source is 120 W. a. What is the reactance of the inductor? b. What is the impedance of the circuit? c. What is the rms current in the circuit? d. What is rms voltage of the source?
Consider an AC series circuit. Determine the phase angle at frequencies 800 Hz, 2400 Hz, and...

Consider an AC series circuit. Determine the phase angle at frequencies 800 Hz, 2400 Hz, and 3500 Hz. The circuit is at resonance at 2400 Hz with impedance at resonance 125. Does the current lead, lag, or is in phase with the voltage? Show work. R= 100 ohms C= 0.3 micro farads L= 0.0146

9.49. The current mirror shown in Fig. 9.74 must deliver I1= 0.5 mA to a circuit with total power budget of 2 mW. A...

9.49. The current mirror shown in Fig. 9.74 must deliver I1= 0.5 mA to a circuit with total power budget of 2 mW. Assuming VA = 00 and B > 1, determine the required value of IREF and the relative sizes of QREE and Q1. - Vcc 2.5 V Circuit /REF QREF 9.49. The current mirror shown in Fig. 9.74 must deliver I1= 0.5 mA to a circuit with total power budget of 2 mW. Assuming VA = 00 and...
Given the circuit below, determine the emitter current in mA (0-100) 12V 2.2k? 820k? 0.661 910?

Given the circuit below, determine the emitter current in mA (0-100) 12V 2.2k? 820k? 0.661 910?
Determine resonant frequency, amplitude, impedance, and phase angle. (b) Suppose the circuit parameters in a series...

Determine resonant frequency, amplitude, impedance, and phase angle. (b) Suppose the circuit parameters in a series RLC circuit are: L = 1.0 uH, C = 10.0 nF, R= 10092, and the source voltage is 220 V. Determine the resonant frequency of the circuit and the amplitude of the current at resonance. If the frequency of the input voltage source is 50 Hz, calculate the impedance and the phase angle. f = 1 / 2 x 5c = 1/2 X 511...

Part A) Specify the magnitude and phase angle of the line current IaA. Enter your answer...

Part A) Specify the magnitude and phase angle of the line current IaA. Enter your answer using polar notation. Express argument in degrees. Part B Specify the magnitude and phase angle of the line current IbB. Enter your answer using polar notation. Express argument in degrees. Part C Specify the magnitude and phase angle of the line current IcC. Enter your answer using polar notation. Express argument in degrees. Part D Specify the magnitude and phase angle of the line...
