Question

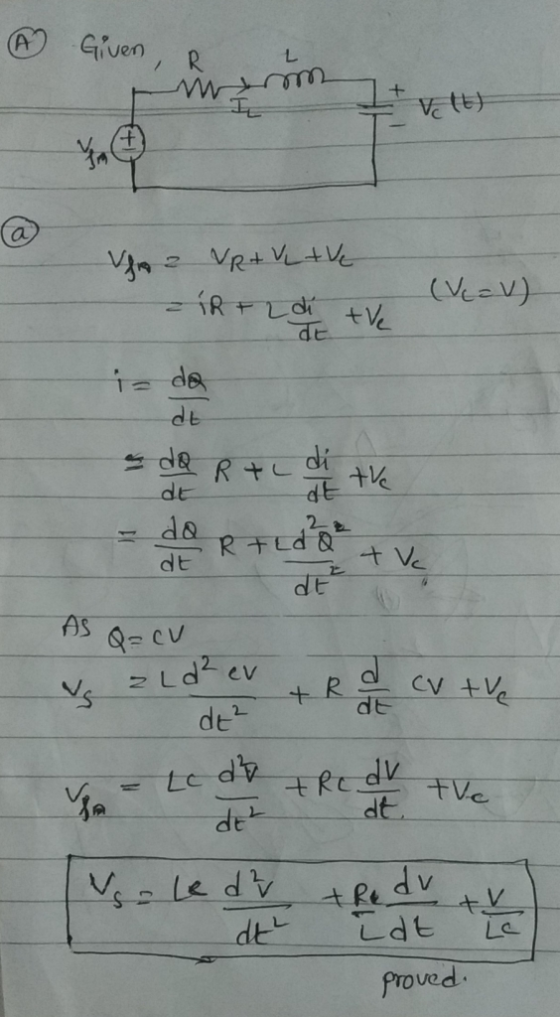

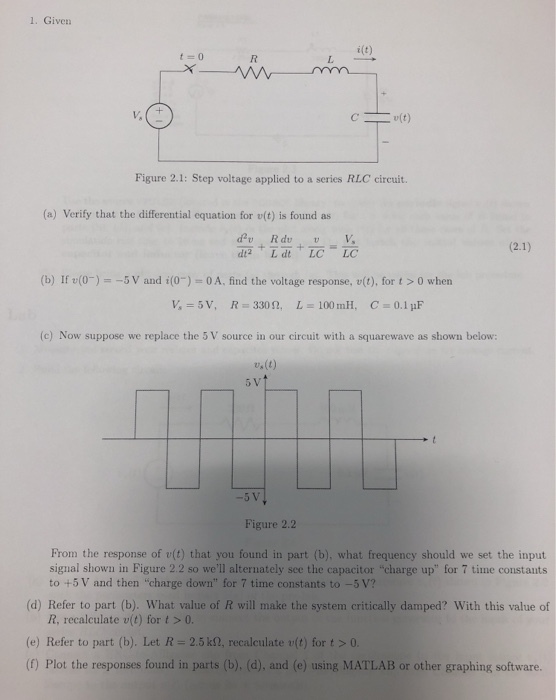

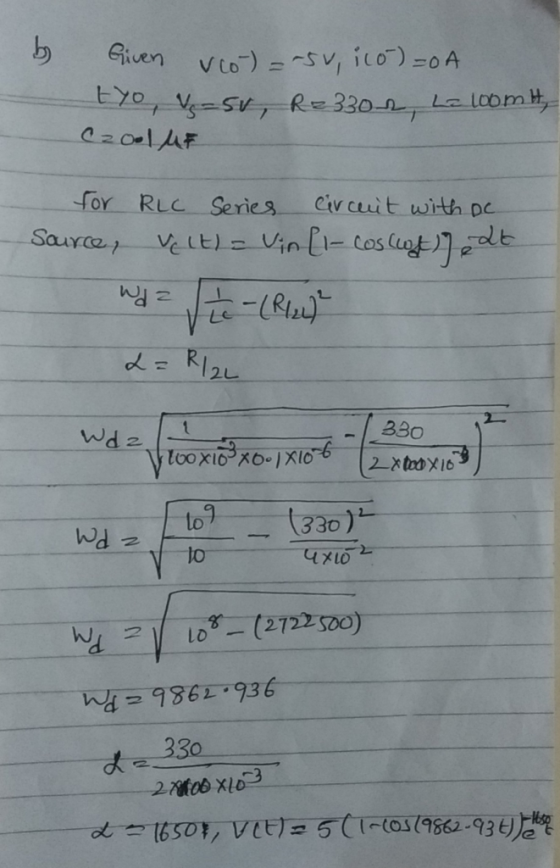

1. Given i(t) Cut) Figure 2.1: Step voltage applied to a series RLC circuit. (a) Verify that the differential equation for v(t) is found as dt2 L dt LC LC (b) If v(0)-5 V and i(0)-OA. find the voltage response, u(t), for t >0 when v, 5V, R#330 n, L-100 mil, C., 0.1uF (c) Now suppose we replace the 5 V source in our circuit with a squarewave as shown below: w(t) Figure 2.2 From the response of v(t) that you found in part (b), what frequency should we set the input signal shown in Figure 2.2 so well alternately see the capacitor charge up for 7 time constants to +5 V and then-charge down for 7 time constants to-5V? (d) Refer to part (b). What value of R will make the system critically damped? With this value of R, recalculate v(t) for t > 0. (e) Refer to part (b). Let R = 2.5 kg, recalculate u(t) for t > 0. (f) Plot the responses found in parts (b). (d), and (e) using MATLAB or other graphing software.
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
1. Given i(t) Cut) Figure 2.1: Step voltage applied to a series RLC circuit. (a) Verify...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • RLC circuit in series A resistor R is connected in series to an inductor L and...

    RLC circuit in series A resistor R is connected in series to an inductor L and a capacitor C, without any external emf sources. (a) Using the fact that the energy stored in both the capacitor and the inductor is being dissipated in the resistor, show that the charge on the capacitor q(t) satisfies the differential equation d^2 q/ dt^2 + Rdq/Ldt + q/LC = 0. This is the equation of a damped oscillator and it has a solution of...

  • The switch in the circuit of Figure 1 has been in position A for a long...

    The switch in the circuit of Figure 1 has been in position A for a long time. At t-0, it is moved to position B The resulting step response of the series RLC circuit is described by the r differential equation (1). Figure 1 dt L dt LC LC The solution to equation (1) has two components the transient response vt(t) and the steady state response, Vss(t) v(t)v(t)+ Vss(t) The transient response v(t) is the same as that for the...

  • b) A periodic voltage vs(t) is applied to a RLC circuit shown in Figure 1 (b)...

    b) A periodic voltage vs(t) is applied to a RLC circuit shown in Figure 1 (b) with R=10012, L=100mH and C=1pF. The first four nonzero terms in the Fourier series is given by the following: v:(t) = 10 +2 sin(10’t)-1sin(2x10't)+sin(3x10°r) v Find the first four nonzero terms in the Fourier series of the steady-state current iſt). (20 marks) R M v.(t) Tv.(t) Figure 2(b): Circuit for Question 2

  • The current, i, in a series RLC circuit when the switch is closed at t 0 can be determined from t...

    use MATLAB functions to solve this problem The current, i, in a series RLC circuit when the switch is closed at t 0 can be determined from the solution of the V 2nd-order ODE to v t-0 d2i ndi 1 where R, L, and c are the resistance of the resistor, the inductance of the inductor, and the capacitance of the capacitor, respectively. (a) Solve the equation for i in terms of L, R, C, and t, assuming that at...

  • 5.) In the series RLC circuit shown in Figure 2, switches S1 and 52 both open...

    5.) In the series RLC circuit shown in Figure 2, switches S1 and 52 both open at ta 0. Solve the differential equation for loop current 1(t) when the resistor R has a value of 2 Ohms. Be sure to show all work and specify values for alpha, wo , W d, 51, 52, (0), V(o), etc. if they are required for the solution (e.g. s1 and s2 are only needed for an overdamped solution. (300 pts) a - Wo=-...

  • 1. For the circuit shown below, we wish to find v(t) for t>0. 1 1 a....

    1. For the circuit shown below, we wish to find v(t) for t>0. 1 1 a. Find the governing equation for the voltage v using KCL at the top node using the following definitions: a = 0,W, = dr. This will get you a governing equation in the same form as that derived for the case we did in class where the R, L, and C were in series. b. What is the particular solution in this case? c. If...

  • 0 in the series RLC circuit shown in Figure 2 switches 51 and 52 both open...

    0 in the series RLC circuit shown in Figure 2 switches 51 and 52 both open at t -0. Solve the differential equation for loop current I (t) when the res has a value of 1 Ohm. Be sure to show all work and specify values for alpha, WO, W d, S1, S2, (o), V(o), etc. if they are required for the solution (e.g. s1 and s2 are only needed for an overdamped solution. (300 pts a: - Wo =...

  • Function Generatr Inductor Model Ra R, Figure 1 Series RLC Circuit Preliminary This laboratory wi...

    Function Generatr Inductor Model Ra R, Figure 1 Series RLC Circuit Preliminary This laboratory will demonstrate how varying resistance changes the natural response of a series RLC circuit (Fig. 1). The function generator is modeled as an ideal voltage source v(t) 5 u() V in series with source resistance Rs-50Q. After measurements using an LCR meter, the inductor is modeled as an ideal L 90 mH inductor in series with resistance RL-20Q. The capacitance is C-0.22 μF. 1) Calculate the...

  • Engineering circuit analysis by Hayt 8th edition question 27 and figure 9.43 I think 10u(1-t) means 10 (for t<1)...

    Engineering circuit analysis by Hayt 8th edition question 27 and figure 9.43 I think 10u(1-t) means 10 (for t<1) and 0 (for t>1) then, I can't remove this current source because it continuously make 10micro A (at t=500ms, t=1.002ms) I don't know what's wrong now.. 366 26. For the circuit of Fig. 9,43, 1 30-) mA. (a) Select R, so th O)6 V (b) Compute e2 ms). (c) Determine the settling, time of t capacitor voltage. (d) Is the inductor...

  • 2. Charge-up response of series RLC circuit. No energy is stored in the 0.1H inductor or...

    2. Charge-up response of series RLC circuit. No energy is stored in the 0.1H inductor or the 0.4uF capacitor before the switch in the circuit shown in the figure below is closed. Find S2 Key= A 2800 1. 0.4uF - 3. Discharge response of series RLC circuit. The circuit had been in steady state prior to moving the switch at t=0. Find = Key = Space Key C1 0.44F For both circuits: a) Is the response underdamped, overdamped, or critically...
