6. A pure copper pipe with inner diameter Di = 12 mm and outer diameter Do-15 mm is surrounded by saturated steam with pressure p 08 bar and convection coefficient h,-7000R. The pipe carries water with a convection coefficient h _ 5000 m2 R. Determine the steam condensation rate (per unit length) around the pipe at the location where the mean water temperature reaches 95°C.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

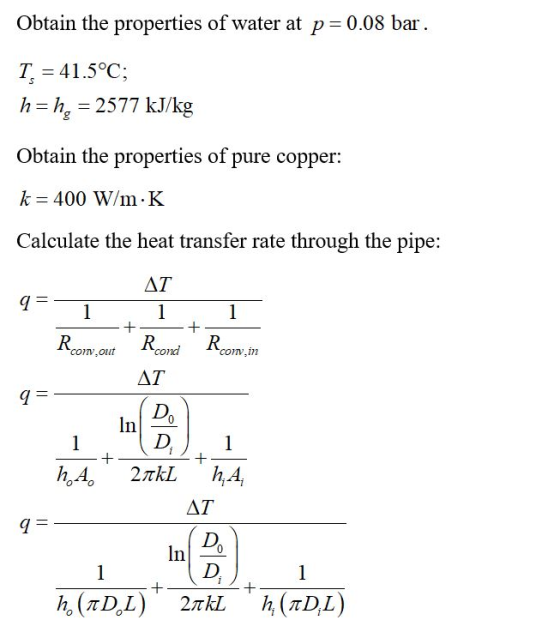

Obtain the properties of water at p=0.08 bar. T = 41.5°C; h=he = 2577 kJ/kg Obtain the properties of pure copper: k = 400 W/m

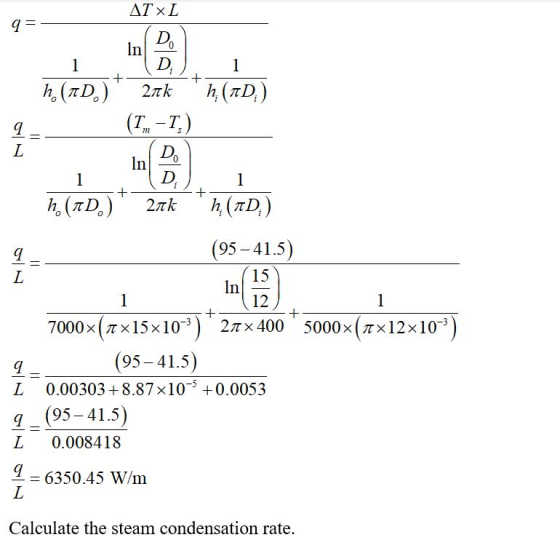

AT XL a= 7 - + h (TD.) 20k *h, (ID) (Tm-T) h (nD.)* 2nk *h, (ID) (95 – 41.5) - + 7000x (7x15x10-3) 20 x 400 5000x(7x12x10-3)6350.45 = mx 257 m=0.00246 kg/s(per unit length)

0 0
Add a comment
Know the answer?
Add Answer to:
6. A pure copper pipe with inner diameter Di = 12 mm and outer diameter Do-15...
