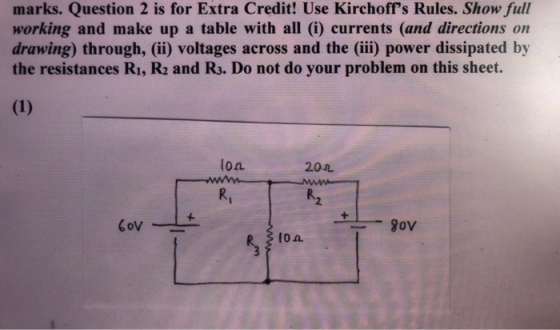

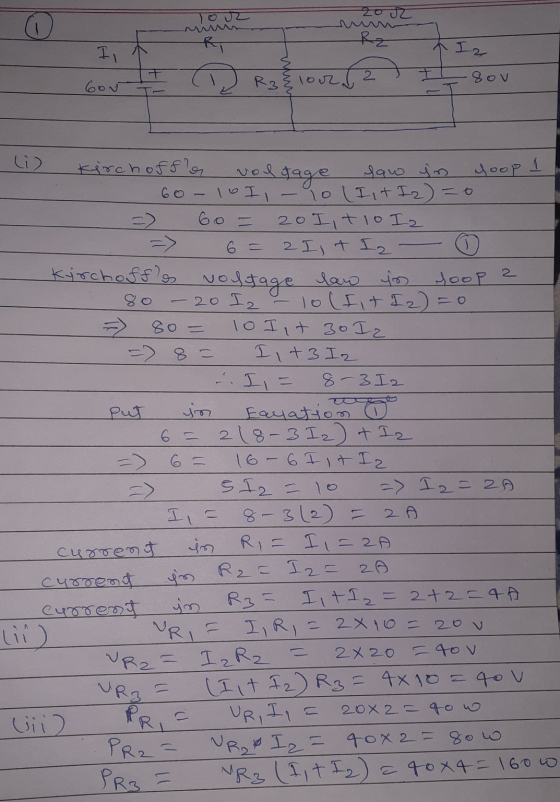

marks. Question 2 is for Extra Credit! Use Kirchoff's Rules. Show full working and make up...
Consider the circuit as shown below. R-2 92 Use Kirchoff's rules to calculate (a) the current...
Consider the circuit as shown below. R-2 92 Use Kirchoff's rules to calculate (a) the current through each resistor: Le. R1: [IR1] A R2: [IR2] A R3: [IR3] A R4: [IR4] A (b) the power supplied by each DC source;i.e. V1: [P1] Watts v2: [P2] Watts v3: [P3] Watts and (c) the power dissipated in each resistor; L.e. R1: [PR1] Watts R2: [PR2] Watts R3: [PR3] watts R4: [PR4] watts IR1 is equal to ?? Amps Answer: IR2 is equal...
Please show work clearly. Thank you 16. (15 points extra credit) Two very long solenoids cross...
Please show work clearly. Thank you
16. (15 points extra credit) Two very long solenoids cross the plane of the circuit in the diagram below. The radius of the top solenoid is 15 cm and that of the bottom solenoid is 25 cm. The currents is increasing at a rate of in the solenoid windings are changing such that the magnitude of the B-field is increasing at a rate o 55.0 T/s in both solenoids. The resistances are w R1...
harm p. 3 PHYS 241-1 Final 5/2/17 BAS SP will receive extra credit ary one of...
harm p. 3 PHYS 241-1 Final 5/2/17 BAS SP will receive extra credit ary one of the following problems. If you do more than one you l. /for the circuit shown in Figure 5, the internal resistances of the batteries are included in the V2 values of R1 and R2. R342.1 ohms10uF a. Find the voltage of battery V2 for which the steady state charge on the capacitor is 96.0 μC. (Hints: Find the current through resistor R3. Remember the...
please help with problems 7 and 8, I am extremely confused! Part 2: Kirchhoff's Rules For...
please help with problems 7 and 8, I am extremely
confused!
Part 2: Kirchhoff's Rules For the circuit shown below, the directions of the currents through the circuit elements has been chosen arbitrarily. Using Kirchhoff's rules, you will determine the actual currents through the circuit elements. (Yes, this circuit could be analyzed using equivalent resistance, but don't do it that way.) R1: 752 Kirchhoff's Junction Rule 4) Start by choosing a junction. Write Kirchhoft's Junction rule for that junction below...
