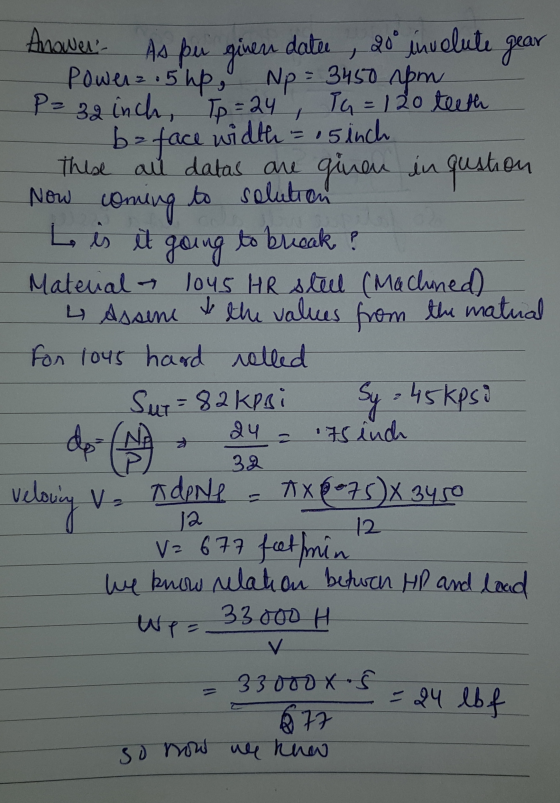

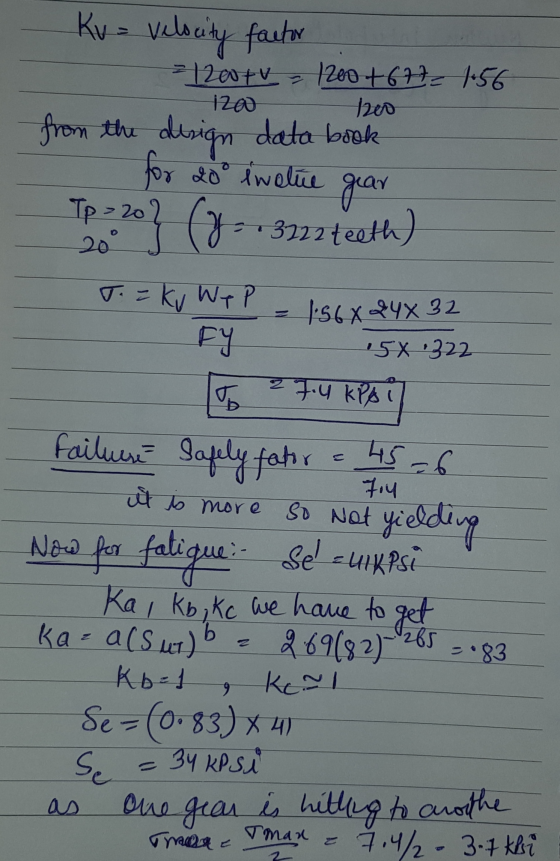

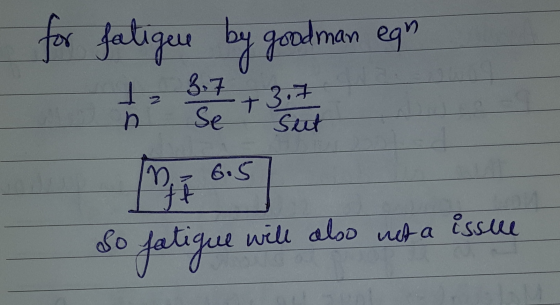

Answer:
Add Answer to:

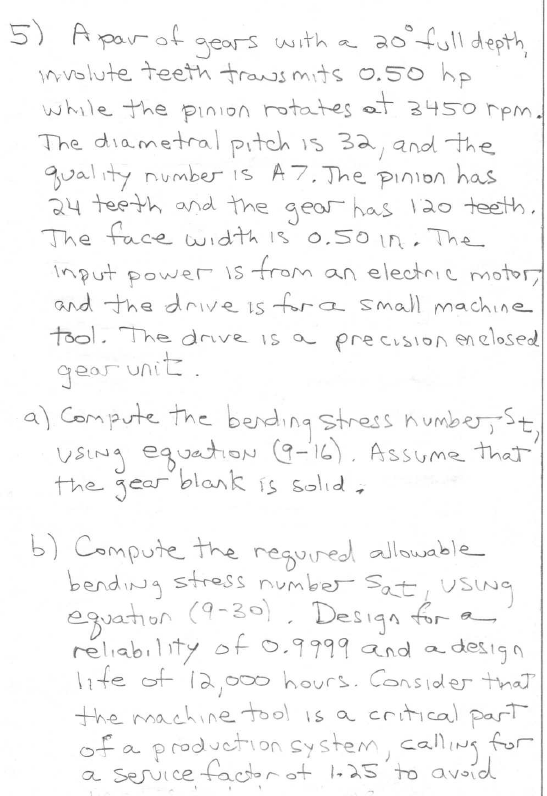

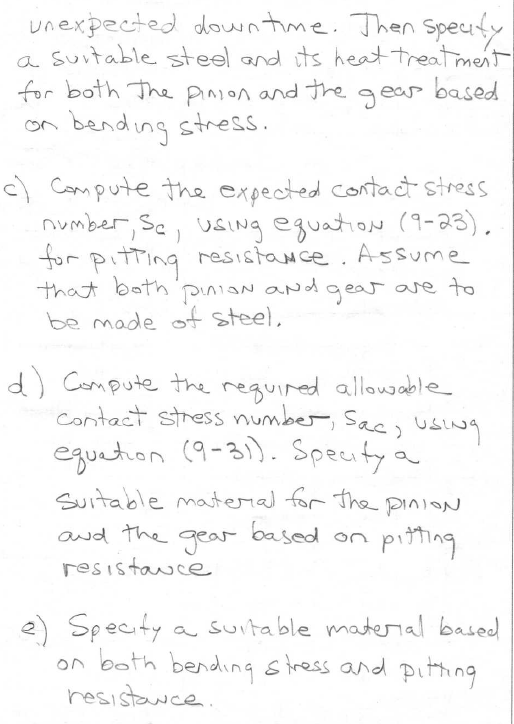

5) A par of years with a 20° full depth involute teeth trausmits 0.50 hp while...
Gear Design- Data for problems A pair of steel full-depth, involute teeth, the pinion speed is...
Gear Design- Data for problems A pair of steel full-depth, involute teeth, the pinion speed is 1000 rpm. The pinion has 18 teeth and the gear has 36 teeth. The gears have a quality grade of A8, a design reliability of 99% with a factor of safety of 1.0. They are installed in a commercial enclosed gear unit. The pinion has a rim thick gears transmits an average of 10 hp. The gear pair has a P 8, a 20...
See Figure P12-1. The shaft rotating at 550 rpm carries a spur gear B having 96 teeth with a diametral pitch of 6. The teeth are of the 20%, full-depth, involute form. The gear receives 30 hp from a...
See Figure P12-1. The shaft rotating at 550 rpm carries a spur gear B having 96 teeth with a diametral pitch of 6. The teeth are of the 20%, full-depth, involute form. The gear receives 30 hp from a pinion directly above it. Compute the torque delivered to the shaft and the tangential and radial forces exerted on the shaft by the gear. Figure P12-1 Shaft carrying a gear and a V-belt drive 0
See Figure P12-1. The shaft rotating...
2. (a) A 12-tooth pinion has AGMA standard full-depth involute teeth with diametral pitch of 4...
2. (a) A 12-tooth pinion has AGMA standard full-depth involute teeth with diametral pitch of 4 in and pressure angle 25. Determine the pitch diameter of both the pinion and the gear, number of teeth of gear, and center distance between gear shafts. The reduction speed ratio is 7. (b) what is the significance of the involute form of gear teeth Tarly show the following: pitch and base circles mion and the pressure angle.
Two 20° involute full depth spur gears are used to transmit the power and speeds shown....
Two 20° involute full depth spur gears are used to transmit the power and speeds shown. The material for both pinion and gear is specified as through- hardened steel tempered to 300 BHN surface hardness. Both pinion and gear are precision cut for "very accurate” gearing. For a factor of safety of 2 and assuming a diametral pitch, Pof 9. specify face widths of the pinion and gear using only the AGMA bending fatigue analysis. State all assumptions used to...
Two 20° involute full depth spur gears are used to transmit the power and speeds shown....
Two 20° involute full depth spur gears are used to transmit the power and speeds shown. The material for both pinion and gear is specified as through-hardened steel tempered to 300 BHN surface hardness. Both pinion and gear are precision cut for "very accurate" gearing. For a factor of safety of 2 and assuming a diametral pitch, Prof 9, specify face widths of the pinion and gear using only the AGMA bending fatigue analysis. State all assumptions used to determine...
3 Required information Problem 14.022 -DEPENDENT MULTI-PART PROBLEM- ASSIGN ALL PARTS art 2 of 2 A...
3 Required information Problem 14.022 -DEPENDENT MULTI-PART PROBLEM- ASSIGN ALL PARTS art 2 of 2 A spur gearset has 17 teeth on the pinion and 51 teeth on the gear. The pressure angle is 20° and the overload factor 1. The diametral pitch is 6 teeth/in and the face width is 2 in. Tihe pinion speed is 1050 rev/min and its cycle life is to be revolutions at a reliability R 0.99. The quality number is 5. The material is...
See Figure P12-1. The shaft rotating at 550 rpm carries a spur gear B having 96 teeth with a diametral pitch of 6. The teeth are of the 20%, full-depth, involute form. The gear receives 30 hp from a...
See Figure P12-1. The shaft rotating at 550 rpm carries a spur gear B having 96 teeth with a diametral pitch of 6. The teeth are of the 20%, full-depth, involute form. The gear receives 30 hp from a pinion directly above it. Compute the torque delivered to the shaft and the tangential and radial forces exerted on the shaft by the gear. Figure P12-1 Shaft carrying a gear and a V-belt drive C D 10.004-10.00 6.00 V-belt sheave Gear...
A helical gear has a normal diametral pitch of 24, a normal pressure angle of 14 ½ o, 72 teeth, a...
A helical gear has a normal diametral pitch of 24, a normal pressure angle of 14 ½ o, 72 teeth, a face width of 0.25 in and helix angle of 45° The power comes from an electric motor, and the drive is to winch that will experience moderate shock. (a) If the gear transmits 0.50 HP at a speed of 3450 RPM, what would be the tangential force? (b) If the gear operates with a pinion having 16 teeth, what...
Pls point the option for the questions QUESTION 4 2 points Save Answer A pair of...
Pls point the option for the questions
QUESTION 4 2 points Save Answer A pair of gears with 20°, full-depth, involute teeth transmits 20 hp while the pinion rotates at 1500 rpm. The module is 6 mm, and the quality number is A11. The pinion has 17 teeth, and the gear has 77 teeth. The face width is 50mm. The input power is from an electric motor, and the load is a vibrating screen. The drive is a commercial enclosed...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/i...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/in. The gears are grade t steel, through-hardened at 200 Brinell, made to No. 6 quality standards, uncrowned, and are to be accurately and ngid mounted Assume a lion life ofi will transmitareliability of90%(KR 0.85), and use YN 1.355N 01:8 and Z 1. used...
Gear Design- Data for problems A pair of steel full-depth, involute teeth, the pinion speed is 1000 rpm. The pinion has 18 teeth and the gear has 36 teeth. The gears have a quality grade of A8, a design reliability of 99% with a factor of safety of 1.0. They are installed in a commercial enclosed gear unit. The pinion has a rim thick gears transmits an average of 10 hp. The gear pair has a P 8, a 20...
See Figure P12-1. The shaft rotating at 550 rpm carries a spur gear B having 96 teeth with a diametral pitch of 6. The teeth are of the 20%, full-depth, involute form. The gear receives 30 hp from a pinion directly above it. Compute the torque delivered to the shaft and the tangential and radial forces exerted on the shaft by the gear. Figure P12-1 Shaft carrying a gear and a V-belt drive 0
See Figure P12-1. The shaft rotating...
2. (a) A 12-tooth pinion has AGMA standard full-depth involute teeth with diametral pitch of 4 in and pressure angle 25. Determine the pitch diameter of both the pinion and the gear, number of teeth of gear, and center distance between gear shafts. The reduction speed ratio is 7. (b) what is the significance of the involute form of gear teeth Tarly show the following: pitch and base circles mion and the pressure angle.
Two 20° involute full depth spur gears are used to transmit the power and speeds shown. The material for both pinion and gear is specified as through- hardened steel tempered to 300 BHN surface hardness. Both pinion and gear are precision cut for "very accurate” gearing. For a factor of safety of 2 and assuming a diametral pitch, Pof 9. specify face widths of the pinion and gear using only the AGMA bending fatigue analysis. State all assumptions used to...
Two 20° involute full depth spur gears are used to transmit the power and speeds shown. The material for both pinion and gear is specified as through-hardened steel tempered to 300 BHN surface hardness. Both pinion and gear are precision cut for "very accurate" gearing. For a factor of safety of 2 and assuming a diametral pitch, Prof 9, specify face widths of the pinion and gear using only the AGMA bending fatigue analysis. State all assumptions used to determine...
3 Required information Problem 14.022 -DEPENDENT MULTI-PART PROBLEM- ASSIGN ALL PARTS art 2 of 2 A spur gearset has 17 teeth on the pinion and 51 teeth on the gear. The pressure angle is 20° and the overload factor 1. The diametral pitch is 6 teeth/in and the face width is 2 in. Tihe pinion speed is 1050 rev/min and its cycle life is to be revolutions at a reliability R 0.99. The quality number is 5. The material is...
See Figure P12-1. The shaft rotating at 550 rpm carries a spur gear B having 96 teeth with a diametral pitch of 6. The teeth are of the 20%, full-depth, involute form. The gear receives 30 hp from a pinion directly above it. Compute the torque delivered to the shaft and the tangential and radial forces exerted on the shaft by the gear. Figure P12-1 Shaft carrying a gear and a V-belt drive C D 10.004-10.00 6.00 V-belt sheave Gear...
A helical gear has a normal diametral pitch of 24, a normal pressure angle of 14 ½ o, 72 teeth, a face width of 0.25 in and helix angle of 45° The power comes from an electric motor, and the drive is to winch that will experience moderate shock. (a) If the gear transmits 0.50 HP at a speed of 3450 RPM, what would be the tangential force? (b) If the gear operates with a pinion having 16 teeth, what...
Pls point the option for the questions
QUESTION 4 2 points Save Answer A pair of gears with 20°, full-depth, involute teeth transmits 20 hp while the pinion rotates at 1500 rpm. The module is 6 mm, and the quality number is A11. The pinion has 17 teeth, and the gear has 77 teeth. The face width is 50mm. The input power is from an electric motor, and the load is a vibrating screen. The drive is a commercial enclosed...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/in. The gears are grade t steel, through-hardened at 200 Brinell, made to No. 6 quality standards, uncrowned, and are to be accurately and ngid mounted Assume a lion life ofi will transmitareliability of90%(KR 0.85), and use YN 1.355N 01:8 and Z 1. used...
