advanced engineering mathematics

Question

Question

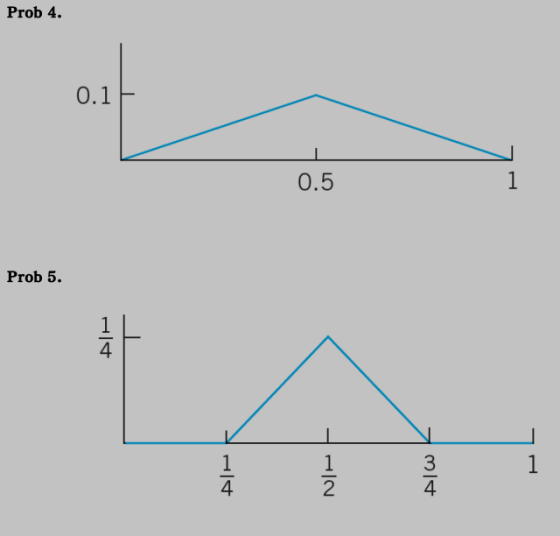

Find u(x, t) for the string of length L = π and c 2 = 1 when

the initial velocity is zero and the initial deflection with small k (say,

0.01) is as follows.

engineering

Answer 1

Answer #1

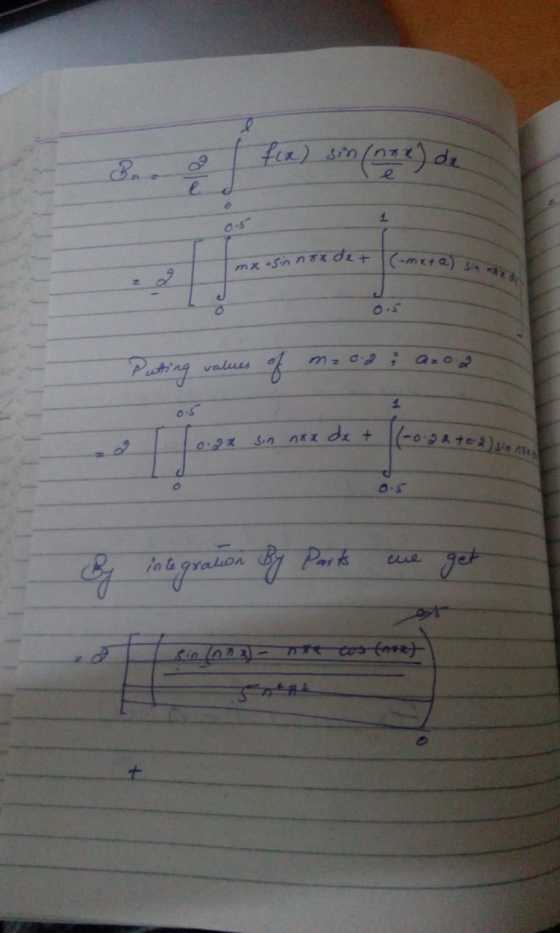

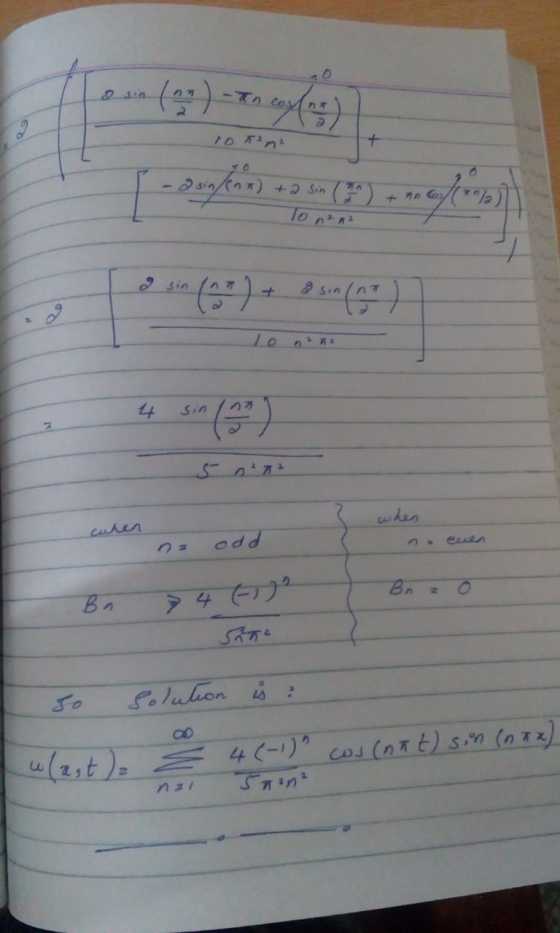

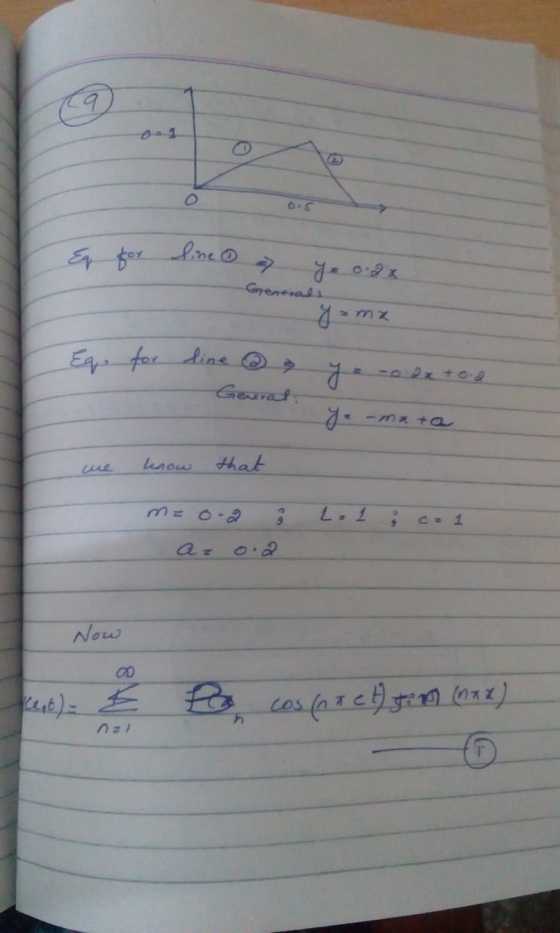

WhatsApp Image 2022-01-15 at 1.32.02 AM.jpeg

answered by: Hassaan Sajid

Answer 2

Similar Homework Help Questions

3. Find u(x, t) for the string of length L = 1 and c2 = 1...

3. Find u(x, t) for the string of length L = 1 and c2 = 1 when the initial velocity is zero and the initial deflection with small k is kx'(1 - x) Answer:
Topic: Partial Differential Equations Just #1. Thanks. Find u(x,t) of the string of length L =...

Topic: Partial Differential Equations Just #1. Thanks. Find u(x,t) of the string of length L = it when c2 = 1, the initial velocity is zero, and the initial deflection is 2. 0.01 sin 3x 0.5 1. TC/2
Courses LMS Integration Documentation Homework 4 EMTH 250-Advanced Math II-Spring 2019 Q1 0 solutions submitted (max: Unlimited) 12.3 Use of Fourier Series to Solve Wave PDE Find and sketch or gr...

Courses LMS Integration Documentation Homework 4 EMTH 250-Advanced Math II-Spring 2019 Q1 0 solutions submitted (max: Unlimited) 12.3 Use of Fourier Series to Solve Wave PDE Find and sketch or graph (as in Fig. 288 in Sec. 12.3) the deflection u(x, t) of a vibrating string of length π, extending from x 0 to x T, and c2 T/p 4 starting with velocity zero and deflection: sin3r Make use of the following formulas. Remeber that the initial deflection is f(x),...

Please answer question number 2, Thank you Engineering Mathematics (-) # 6 HM. olve the PDE of the vibrating string with...

Please answer question number 2, Thank you Engineering Mathematics (-) # 6 HM. olve the PDE of the vibrating string with given initial velocity and zero initial displacement by use of Fourier sine series. 02u(x,t) = c2-211(x,t) ax2 PDE. : t>0 0<x<L 2 , Ot , BCs u(0,1) 0u(L,t) 0, t20 IC u(x,0) = 0 , 0 x L : an(x,0) =h(x) 0 L x , ot in problem (1), u(x,t)=? (2). Suppose that h(x)-x(1-cos(-)) Engineering Mathematics (-) # 6...
A uniform string of length L = 1 is described by the one-dimensional wave equation au...

A uniform string of length L = 1 is described by the one-dimensional wave equation au dt2 dx where u(x,t) is the displacement. At the initial moment t = 0, the displacement is u(x,0) = sin(Tt x), and the velocity of the string is zero. (Here n = 3.14159.) Find the displacement of the string at point x = 1/2 at time t = 2.7.
show steps please! (1 point) u(x, t represents the vertical displacement of a string of length...

show steps please! (1 point) u(x, t represents the vertical displacement of a string of length L = 20 with wave equation 16. time t = Utt at position x along the string and at Find u(x, t) if a. the initial velocity of the string is 0 and the rightmost position is held at a vertical displacement of 1 and released b. the initial velocity is a constant -5 and the vertical displacement is 0 c. the initial velocity...

u(x, t) represents the vertical displacement of a string of length L = 16 with wave...

u(x, t) represents the vertical displacement of a string of length L = 16 with wave equation 25uxx = uft at position x along the string and at time t Find u(x, t) if a. the initial velocity of the string is 0 and the rightmost position b. the initial velocity is a constant 5 and the vertical displacement is 0. c. the initial velocity is a constant 5 and the rightmost position is held at a vertical displacement of...

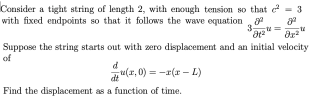

How does c^2 = 3 affect this? = 3 Consider a tight string of length 2,...
