Homework Answers
Add Answer to:
please solve it in details

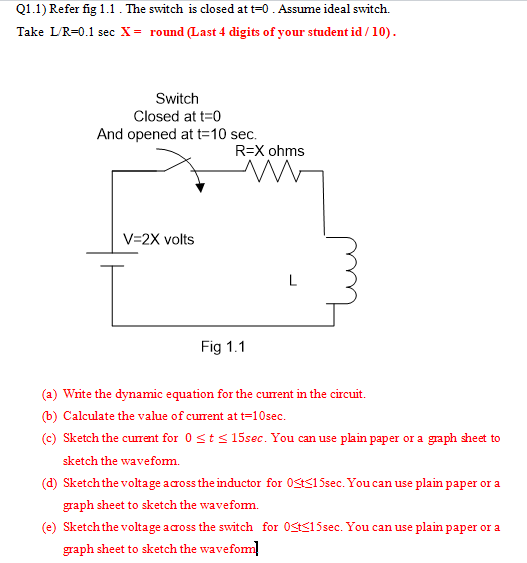

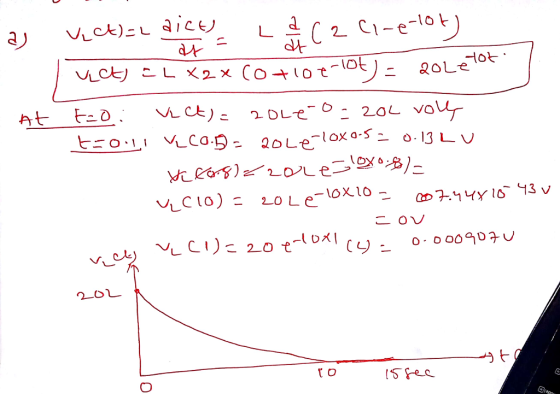

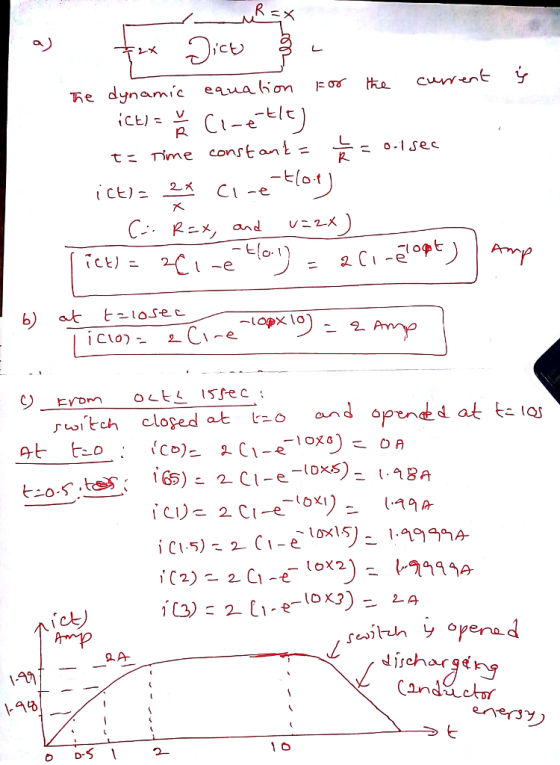

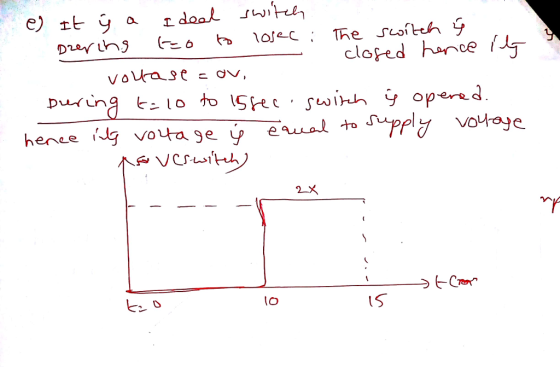

Q1.1) Refer fig 1.1. The switch is closed at t-0. Assume...
Consider the circuit depicted in Fig. 2. The switch SW1 has been closed for a long time before it...
Consider the circuit depicted in Fig. 2. The switch SW1 has been closed for a long time before it is opened at time t = 0. The switch SW2 has been open for a long time before it is closed att = 0.1 (sec). i) Find the initial current I(0) flowing in the inductor and the initial voltage V(0) across the capacitor. ii) Find the voltage V(t) across the capacitor and the current I(t) through the inductor for 0 ≤ t ≤...
1. The switch S is closed at t = 0 (assume that the battery voltage remains...
1. The switch S is closed at t = 0 (assume that the battery
voltage remains constant at 10V and the resistance of the inductor
is negligible). Calculate the voltage across each resistor a very
long time after the switch has been closed and all currents and
voltages reached steady values. (5 points)1. The switch S is closed
at t = 0 (assume that the battery voltage remains constant at 10V
and the resistance of the inductor is negligible). Calculate...
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed a) What is the time constant for this circuit? b) What is the final voltage across the 50 capacitor? c) What is the expression for the voltage across the 50 capacitor? d) Sketch the waveform for . e) What is the maximum instantaneous current that will flow through the capacitor? f) When will the voltage reach 5.0 V?
The switch S is closed at t = 0 (assume that the battery voltage remains constant...
The switch S is closed at t = 0 (assume that the battery voltage
remains constant at 10V and the resistance of the inductor is
negligible). Calculate the voltage across each resistor a very long
time after the switch has been closed and all currents and voltages
reached steady state
102 1. The switch S is closed at t = 0) (assume that the battery voltage remains constant at 10V and the resistance of the inductor is negligible). Calculate the...
Problem 1: /10 A) For the RL circuit of Figure 1, the switch is closed at...
Problem 1: /10 A) For the RL circuit of Figure 1, the switch is closed at t=0 (charging phase). Report the time constant of the circuit T1 , voltage V, and current i, at time t = t1/2 23 82H £292 3v 20 20 Fig. 1: EMILM B) At time t = t;/2 , the switch in the RL circuit of Figure 1 is opened (discharging phase); Report the time constant of the circuit ta , voltage V, and current...
10 2 M 1. The switch S is closed at t = 0 (assume that the...
10 2 M 1. The switch S is closed at t = 0 (assume that the battery voltage remains constant at 10V and the resistance of the inductor is negligible). Calculate the voltage across each resistor a very long time after the switch has been closed and all currents and voltages reached steady values. (5 points) 10 V 1002 000 2 H 2. A very long time after t = 0, when all currents and voltages in the circuit have...
a.) Consider the circuit below. Assume that the capacitor is fully discharged prior to t=0. The switch is closed at t=0...
a.) Consider the circuit below. Assume that the capacitor is
fully discharged prior to t=0. The switch is closed at t=0
connecting the voltage source to the rest of the circuit. What is
the steady-state value of the voltage across the capacitor, VC(t),
after the switch is closed for a long time? Put your answer in the
box below, without the units (Volts).
b.) What is the time constant, ?, in ?s of the circuit in this
question.
c.) What...
3. (20%) Consider a circuit as showed in Fig. 3. The switch will close att -0....
3. (20%) Consider a circuit as showed in Fig. 3. The switch will close att -0. 4012 100V 601, T-lus 1200 Fig. 3 (a) (3%) Calculate the voltage carried by the initial (+) wave. (b) (3%) Calculate the current carried by the initial (+) wave. (c) (3%) Calculate the steady-state (+) wave voltage Vºss. (d) (3%) Calculate the steady-state (+) wave current Iss. (e) (3%) Calculate the steady-state (-) wave voltage V'ss- (f) (5%) Calculate the voltage across the 400...
For the time-domain circuit shown in Fig. 2 the switch is closed at t = 0....
For the time-domain circuit shown in Fig. 2 the switch is closed
at t = 0.
a. Draw the equivalent circuit in s-domain.
b. Write a pair of simultaneous s-domain mesh current
equations.
2A * 4H 0.2 F 14v 149) 0.25 F 10 V izle G Fig. 2
Question 4a Consider the LRC circuit shown below. At 0, the switch S is closed and a voltage Va-V...
Question 4a Consider the LRC circuit shown below. At 0, the switch S is closed and a voltage Va-Vr = Vo cos wt is applied between A and F A -000i R. The equation describing the evolution of Q(t), the charge on the capacitor is CGiven Q0) amd #(o) - 0), the geteral solution of 1) may be written as (0), the general solution of (1) may be written as where Qc(t) as t0o, so after a long time, 2L...
1. The switch S is closed at t = 0 (assume that the battery
voltage remains constant at 10V and the resistance of the inductor
is negligible). Calculate the voltage across each resistor a very
long time after the switch has been closed and all currents and
voltages reached steady values. (5 points)1. The switch S is closed
at t = 0 (assume that the battery voltage remains constant at 10V
and the resistance of the inductor is negligible). Calculate...
The switch S is closed at t = 0 (assume that the battery voltage
remains constant at 10V and the resistance of the inductor is
negligible). Calculate the voltage across each resistor a very long
time after the switch has been closed and all currents and voltages
reached steady state
102 1. The switch S is closed at t = 0) (assume that the battery voltage remains constant at 10V and the resistance of the inductor is negligible). Calculate the...
Problem 1: /10 A) For the RL circuit of Figure 1, the switch is closed at t=0 (charging phase). Report the time constant of the circuit T1 , voltage V, and current i, at time t = t1/2 23 82H £292 3v 20 20 Fig. 1: EMILM B) At time t = t;/2 , the switch in the RL circuit of Figure 1 is opened (discharging phase); Report the time constant of the circuit ta , voltage V, and current...
10 2 M 1. The switch S is closed at t = 0 (assume that the battery voltage remains constant at 10V and the resistance of the inductor is negligible). Calculate the voltage across each resistor a very long time after the switch has been closed and all currents and voltages reached steady values. (5 points) 10 V 1002 000 2 H 2. A very long time after t = 0, when all currents and voltages in the circuit have...
a.) Consider the circuit below. Assume that the capacitor is
fully discharged prior to t=0. The switch is closed at t=0
connecting the voltage source to the rest of the circuit. What is
the steady-state value of the voltage across the capacitor, VC(t),
after the switch is closed for a long time? Put your answer in the
box below, without the units (Volts).
b.) What is the time constant, ?, in ?s of the circuit in this
question.
c.) What...
3. (20%) Consider a circuit as showed in Fig. 3. The switch will close att -0. 4012 100V 601, T-lus 1200 Fig. 3 (a) (3%) Calculate the voltage carried by the initial (+) wave. (b) (3%) Calculate the current carried by the initial (+) wave. (c) (3%) Calculate the steady-state (+) wave voltage Vºss. (d) (3%) Calculate the steady-state (+) wave current Iss. (e) (3%) Calculate the steady-state (-) wave voltage V'ss- (f) (5%) Calculate the voltage across the 400...
For the time-domain circuit shown in Fig. 2 the switch is closed
at t = 0.
a. Draw the equivalent circuit in s-domain.
b. Write a pair of simultaneous s-domain mesh current
equations.
2A * 4H 0.2 F 14v 149) 0.25 F 10 V izle G Fig. 2
Question 4a Consider the LRC circuit shown below. At 0, the switch S is closed and a voltage Va-Vr = Vo cos wt is applied between A and F A -000i R. The equation describing the evolution of Q(t), the charge on the capacitor is CGiven Q0) amd #(o) - 0), the geteral solution of 1) may be written as (0), the general solution of (1) may be written as where Qc(t) as t0o, so after a long time, 2L...
