Find the voltage V3 in volt for the network, where E=500V, C1=4.4 uF ; C2= 5.3...

Question

Question

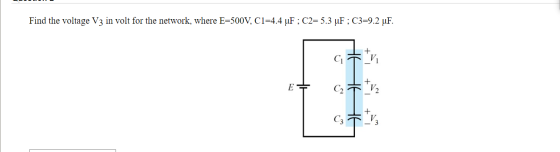

Find the voltage V3 in volt for the network, where E=500V, C1=4.4 uF ; C2= 5.3 uF ; C3=9.2 uF. E C2 *v2 C3

engineering Mechanical-Engineering

Answer 1

Answer #1

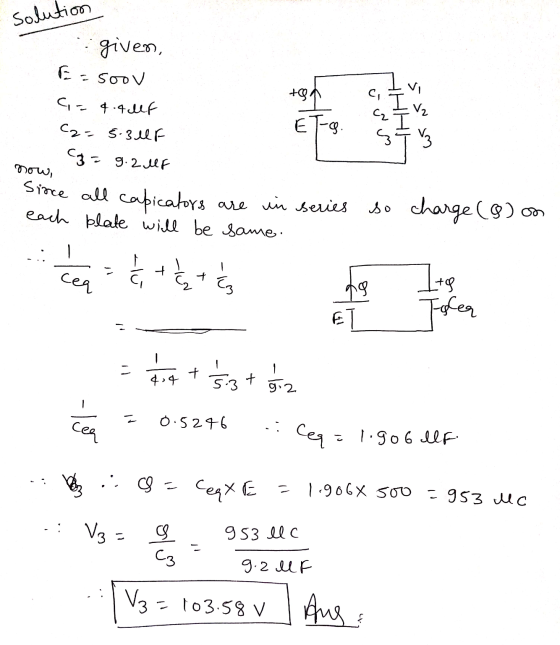

solution given, E = soov + = 4.4 Ulf El-g. = 5.30F a = 9.20F now, Since all capicators are in series each plate will be same.

Answer 2

Similar Homework Help Questions

If C1= 10 uF C2= 20 uF C3 =30 uF C4=40 uF C5= 50uF C6= 60uF....

If C1= 10 uF C2= 20 uF C3 =30 uF C4=40 uF C5= 50uF C6= 60uF. Calculate the equivalent capacitance of C1, C2 , C3, and ,C5 all in parallel. Also calculate with ALL the capacitors is series calculate V2 and Q2 assuming that Vab =20 volts across the entire circuit.
Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 =...

Prob. 2. The figure shows a network of three capacitors, C1 = 3.0 uF, C2 = 4.0uF, and C3 = 8.0uF, connected to a constant applied potential Vac across terminals a and C. The capacitors in the network are fully charged, and the charge on C2 is 60.0uc. C2 C [a] What is the charge (in units of uC) on capacitor Cz? (Example: If your answer is 75.0°C, enter your answer as 75.0 in the answer box.) Prob. 2. The...
Two capacitors (C1 = 70 uF and C2 = 75 uF) are connected in parallel. A...

Two capacitors (C1 = 70 uF and C2 = 75 uF) are connected in parallel. A third capacitor (C3 = 204 uF) is then placed in series with the first two. The entire configuration is then placed in series with a 8.5-Volt battery. Find the charge on and the potential difference across each capacitor (in uC and Volts, respectively), once they are fully charged.

s uie 4) a) Find the equivalent capacitance for the circuit given, where, Ces uf C2-2...

s uie 4) a) Find the equivalent capacitance for the circuit given, where, Ces uf C2-2 uF,Cs-3 HF. b) Determine the charge on each capacitor and the voltage across each, assuming the battery voltage is V-4v. C2 C1 b C3
Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1...

Three capacitors, with capacitances C1 = 4.5 uF, C2 = 2.9 uF, and C3 = 2.1 uF, are connected to a 20 -V voltage source, as shown in the figure. What is the charge on capacitor C2 ? C a. Ca C3 b. ΑΣΦ ? YC
hree capacitors of capacitance C1-1.50 pF, C2-5.50 uF, and C3-11.0 uF are connected to a 36.0...

hree capacitors of capacitance C1-1.50 pF, C2-5.50 uF, and C3-11.0 uF are connected to a 36.0 V battery as shown in the figure C1 Дез C2 Calculate the charge on C3. Submit Answer Tries 0/20 Calculate the voltage across C1 Submit Answer Tries 0/20

Take C1= 5.00 uF, C2= 10.00 uF, and C3= 2.00 uF Use the numbers given for...

Take C1= 5.00 uF, C2= 10.00 uF, and C3= 2.00 uF Use the numbers given for C1, C2 and C3, (and V later on). Redraw the circuits as needed. For the top part: a) For C1 and C2 on the left upper side, find Cleq, (series). b) For C1 and C2 on the right upper side, find Creq, (series). Redrawing the top part, will now have 3 Cs (Cleq, C3, and Creq) in parallel. This is in series with the...
Please find the answer in microWatts. - vi + + V3 - + 1 V2 7...

Please find the answer in microWatts. - vi + + V3 - + 1 V2 7 C₂ Click to see additional instructions For the electric circuit, given that C1=0.1 microF, C2=0.1 microF, C3=0.3 microF, and C4=0.3 microF and the total voltage drop across capacitors Chand C2 at t=0 is V1(0)+v2(0)=120V, what is the initial energy stored in the capacitors network, W(t=0, total)= 1.44 microw
V1 C1 = 3 uF, C2 = 6 F, C3 = 4 uF, C4 = 2uF,...

V1 C1 = 3 uF, C2 = 6 F, C3 = 4 uF, C4 = 2uF, V1 = 90 V For the system of four capacitors shown in the figure, find (a) the equivalent capacitance of the system, (b) the charge on each capacitor, (c) the potential difference across each capacitor C1 C2 C4 C3

In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the...

In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the battery supplies 9 V. Cg С G2 (a) Find the equivalent capacitance of the circuit. Select one: a. 27.00 pF b. 6.52 pF O c. 16.00 pF d. 15.00 pF In the circuit below C1 = C2 = 8 pF, and C3 = 11 uF, the battery supplies 9 V. Cg C C (b) What is the potential energy stored by capacitor Cı? Select...
