Question
Please answer A and B.

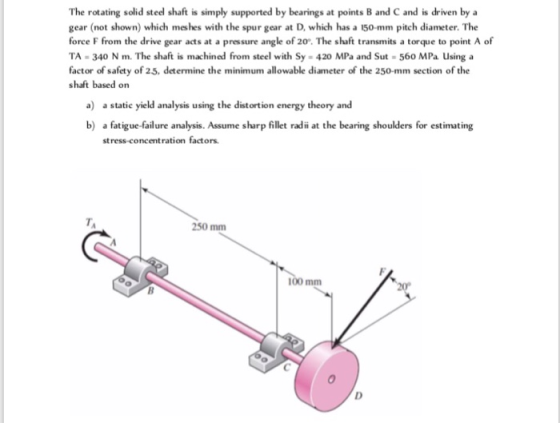

The rotating solid stedl shaft is simply supported by bearings at points B and C and is driven by a gear (not shown) which meshes with the spur gear at D, which has a 150-mm pitch diameter. The force F from the drive gear acts at a pressure angle of 20. The shaft transmits a torque to point A of TA-340 N m. The shaft is machined from steel with Sy- 420 MPa and Sut-560 MPa Using a factor of safety of 25, determine the minimum allowable diameter of the 250-mm section of the shaft based on a) a static yield analysis using the distortion energy theory and b) a fatigue-failure analysis. Assume sharp fillet radii at the bearing shoulders for estimating stress-concentration factors TA 250 mm 100 mm 20
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

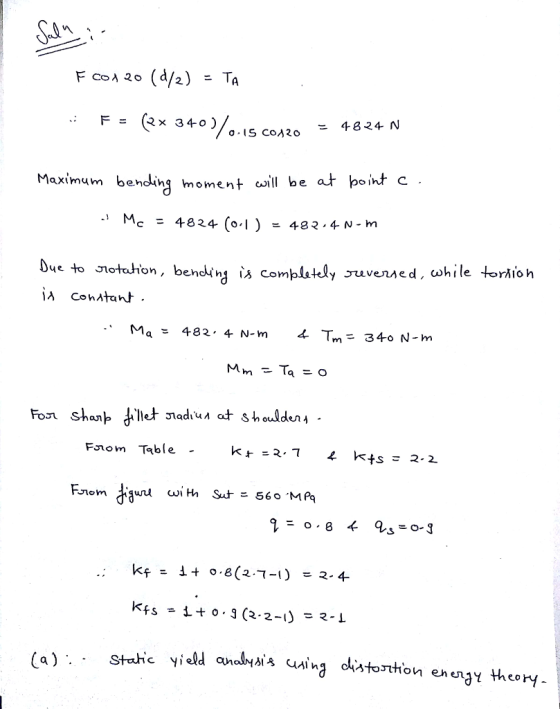

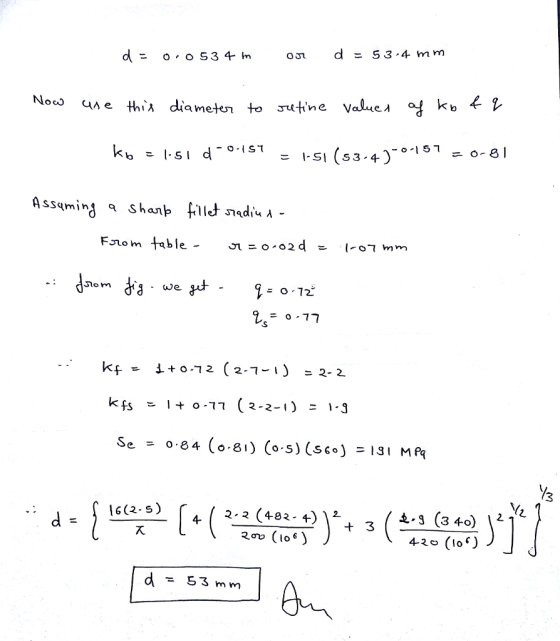

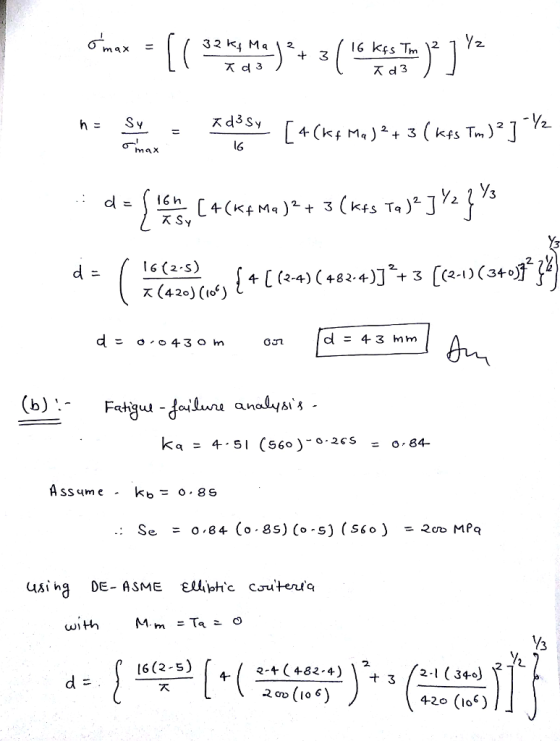

F = (2x 340) 0-15 CO 20-4624-N Maximum bendin moment wl be at boiht c c = 4824 (0-1 ) = 483.4-N-m Dve to stotuhion, bendk ing is compltdy uvensed, while torkioh oreV Fnom Table rlo m Agud with Sut-. 560.MA Stohc yield anal서씨x d3sy l6 maX 3 2. 16 (2-s) Assume - kb- o 8s wi th 16 (2-5) q-t ( 82-4) 2-1 (34-o 420 (loG)d = 53,4 mm a me kb 1.51 Assqming Shan let iadiu From table -We 16 (2- s) 2- 2 (482- 4)12 -3 (340) + 3

2 0
Add a comment
Know the answer?
Add Answer to:
Please answer A and B. The rotating solid stedl shaft is simply supported by bearings at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up
