What is the magnitude of the velocity at point A, B, C, and E (m/s) at...

Question

Question

What is the magnitude of the velocity at point A, B, C, and E (m/s) at the instantces shown? w = 4 rad/s B 0.15 m

engineering Mechanical-Engineering

Answer 1

Answer #1

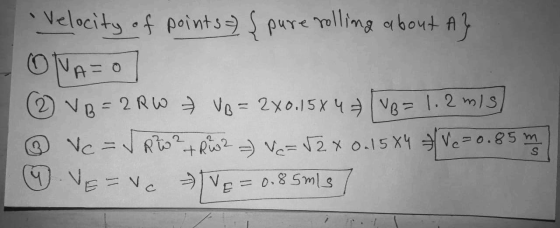

Velocity of points= { pure rolling about A} © VB = 2 RW + Vo = 2X0.15847 V6 = 1.2 mis ③ Vc = VREO 2 + RED2 ) V = 82 x 0.15 X

Answer 2

Similar Homework Help Questions

At the instant represented, the velocity of point A of the 2.06-m bar is 3.1 m/s...

At the instant represented, the velocity of point A of the 2.06-m bar is 3.1 m/s to the right. Determine the speed Va of point B and the magnitude of the angular velocity w of the bar. The diameter of the small end wheels may be neglected. 0.52 m 59° BC 2.06 m А VA Answers: Va = m/s rad/s
Please consider that the magnitude of velocity of point c located on the double collar when...

Please consider that the magnitude of velocity of point c located on the double collar when theta = 30 is 4 m/s Please state an answer for part b and read the question carefully. Also, please consider the given previous answers Thanks !!! <HW16 Problem 16.133 < 8 of 8 > Rod AB rotates counterclockwise with a constant angular velocity w =4 rad/s. The collar consists of two pin- connected slider blocks which are constrained to move along the circular...
At the instant shown collar B moves with a velocity of vB=4 [m/s] and acceleration aB=2.4...

At the instant shown collar B moves with a velocity of vB=4 [m/s] and acceleration aB=2.4 [m/s2 ] to the right. Angle =50o , and length of the rod is L=650 [mm]. At the instant when =30o , determine (a) magnitude of angular acceleration of rod AB, AB [rad/s2 ], and (b) magnitude of acceleration of collar A, aA [m/s2 ]. What is magnitude of angular acceleration of rod AB, AB [rad/s2 ]? What is magnitude of acceleration of collar...

4. A wheel is rotating at 8 rad/s. What is the tangential velocity of a point...

4. A wheel is rotating at 8 rad/s. What is the tangential velocity of a point on the rim of the wheel if the wheel has a radius of 0.50 m? a) 1 m/s b) 4 m/s c) 16 m/s d) 64 m/s e) none of the above 5. What is the centripetal acceleration of this point? a) 1 m/s2 b) 4 m/s2 c) 16 m/s2 d) 64 m/s2 e) none of the above 6 What is the moment of...
The wheel rolls without slipping with an angular velocity of 10 rad/s. Determine the magnitude of...

The wheel rolls without slipping with an angular velocity of 10 rad/s. Determine the magnitude of the velocity of point B at the instant shown in Figure. B A
The instantaneous center of zero velocity for the body is located at point IC (0.5 m,...

The instantaneous center of zero velocity for the body is located at point IC (0.5 m, 2 m). If the body has an angular velocity of 4 rad/s, as shown, determine the velocity of B with respect to A. 10. IC ω= 4 rad/s 0.5 m 1.5 m be 0.5 m 1.5 m

In pure rotation, what is the velocity (in m/s) of a point on the edge of...

In pure rotation, what is the velocity (in m/s) of a point on the edge of a gear with a diameter of 50mm rotating at 7 rad/s?
In pure rotation, what is the velocity (in m/s) of a point on the edge of...

In pure rotation, what is the velocity (in m/s) of a point on the edge of a gear with a diameter of 50mm rotating at 7 rad/s?
Show work At the instant shown collar C moves with a velocity of vc=4 [ms] to...

Show work At the instant shown collar C moves with a velocity of vc=4 [ms] to the left. Determine (a) angular velocity [rad/s of link BC, (b) velocity [m/s] of point B. (c) anular velocity [rad/s of link AB. The system parameters are LAB= 0,5 m. LBC-02 m. β1-30°, β2=20° 90 A What is angular velocity [rad/s] of link B? B What is velocity [m/s] of point B1? I C What is angular velocity [rad/s] of link AB?

Given the dimensions shown in this image, what is the magnitude of the velocity (in m/s)...

Given the dimensions shown in this image, what is the magnitude of the velocity (in m/s) of piston B at this instant? B - 45° 45° 1m A 0.25m 0 100 rpm
