Add Answer to:

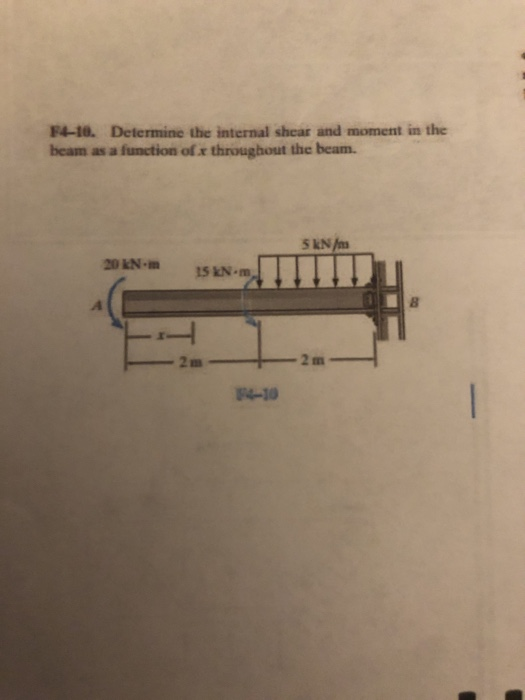

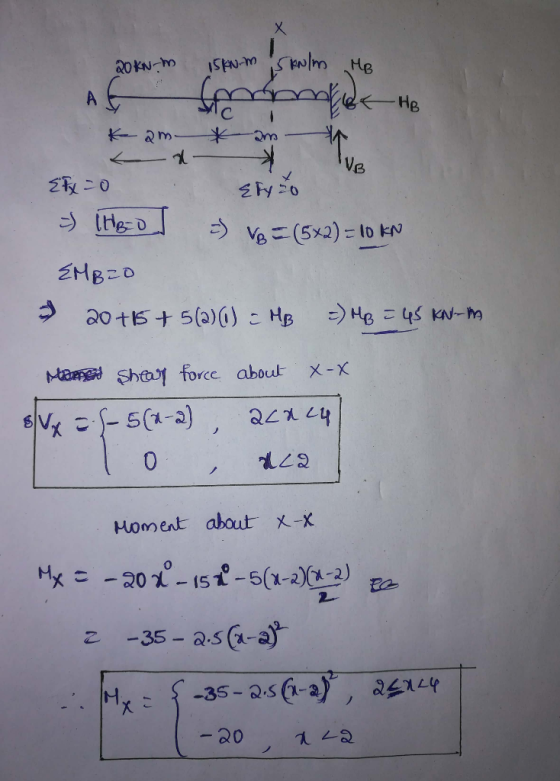

F4-10. Determine the internal shear and moment in the beam as a function of x throughout...
Determine the shear force and bending moment throughout the beam as a function of x. (30...
Determine the shear force and bending moment throughout the beam as a function of x. (30 pts) 8 kN/m
Determine the shear force and bending moment equation throughout the beam as a function of x.
Determine the shear force and bending moment equation throughout the beam as a function of x. This means that you need to give formulas for V(x) and M(x) along the length of the beam. Sketch and label the shear force and bending moment diagrams.
For the beam A) The shear force and the bending moment as function of x, where...
For the beam
A) The shear force and the bending moment as function of x,
where 5 < x < 8 m
B) The shear force and bending moment at point C located 6.5 m
from the support A.
Please include units
V (x) =
M (x) =
B)
Please solve prior to comparing answers and fully understanding,
I'll rate if correct. Much appreciated
S kN 15 kN/m 20kN m
Draw the shear and moment diagrams for the beam and determine the maximum shear and the...
Draw the shear and moment diagrams for the beam and determine the maximum shear and the maximum moment. 15 kN 5 kN/m 80 kN.m B Sm 5 m
Determine the shear and moment along the beam as functions ofx. Also, draw the shear and...
Determine the shear and moment along the beam as functions ofx. Also, draw the shear and moment diagrams for the beam. Notes: Always take distance x for any function to start from the very left end of the beam. Show neat sketches of all sections required to develop the shear and moment functions, specifying the function regions. 4 kN/m 2 kN/m 6 kN.m B I 3.0 m 3.0 m 3.0 m
Forthe beam determine the internal shear force and bending moment foreach section as a...
For
the beam determine the internal shear force and bending moment for
each section as a function if x.
Draw the shear and moment diagrams for the beam, and determine the shear and moment throughout the beam as functions of x for 0 ≤ x ≤ 6 ft and 6 ft ≤ x ≤ 9 ft.
Draw the shear and moment diagrams for the beam,and determine the shear and moment throughout the beamas functions of x for 0 ≤ x ≤ 6 ft and 6 ft ≤ x ≤ 9 ft.In the textbook solution above for 6<=x<=9, equation 3 has
1/2 * (x-6). Where does this come from?Also is there a way you could draw the shear/moment diagrams for
6<=x<=9 and derive the shear/moment equations using just
calculus
Determine the internal force shear force and moment at point c. ENGR 2301 Statics Spring 2014 Name Exam 3 Sbow all w...
Determine the internal force shear force and moment at point
c.
ENGR 2301 Statics Spring 2014 Name Exam 3 Sbow all work for full credit. 1. Determine the internal normal force, shear force, and moment at point C in the simply supported beam. 5 kN 3 kN/m --15 m -15 m3m
Determine the shear throughout the beam as a function of 1 for <I<4 m. Express your...
Determine the shear throughout the beam as a function of 1 for <I<4 m. Express your answer in terms of . Express the coefficients using three algnificant figures. View Avaliable Hint(8) WAPvec O2? Submit Part B Determine the moment throughout the beam as a function of for 0 <<4 m. Express your answer in terms of . Express the coefficients using three algnificant figures. View Avaliable Hint(8) 0 AED vec R O ? M Submit Part C Determine the shear...
Determine the shear and moment along the beam as functions of x. Also, draw the shear and moment diagrams for the beam.
Determine the shear and moment along the beam as functions of x. Also, draw the shear and moment diagrams for the beam. Notes: - Always take distance x for any function to start from the very left end of the beam. - Show neat sketches of all sections required to develop the shear and moment functions, specifying the function regions.
Determine the shear force and bending moment throughout the beam as a function of x. (30 pts) 8 kN/m
For the beam
A) The shear force and the bending moment as function of x,
where 5 < x < 8 m
B) The shear force and bending moment at point C located 6.5 m
from the support A.
Please include units
V (x) =
M (x) =
B)
Please solve prior to comparing answers and fully understanding,
I'll rate if correct. Much appreciated
S kN 15 kN/m 20kN m
Draw the shear and moment diagrams for the beam and determine the maximum shear and the maximum moment. 15 kN 5 kN/m 80 kN.m B Sm 5 m
Determine the shear and moment along the beam as functions ofx. Also, draw the shear and moment diagrams for the beam. Notes: Always take distance x for any function to start from the very left end of the beam. Show neat sketches of all sections required to develop the shear and moment functions, specifying the function regions. 4 kN/m 2 kN/m 6 kN.m B I 3.0 m 3.0 m 3.0 m
For
the beam determine the internal shear force and bending moment for
each section as a function if x.
Draw the shear and moment diagrams for the beam,and determine the shear and moment throughout the beamas functions of x for 0 ≤ x ≤ 6 ft and 6 ft ≤ x ≤ 9 ft.In the textbook solution above for 6<=x<=9, equation 3 has
1/2 * (x-6). Where does this come from?Also is there a way you could draw the shear/moment diagrams for
6<=x<=9 and derive the shear/moment equations using just
calculus
Determine the internal force shear force and moment at point
c.
ENGR 2301 Statics Spring 2014 Name Exam 3 Sbow all work for full credit. 1. Determine the internal normal force, shear force, and moment at point C in the simply supported beam. 5 kN 3 kN/m --15 m -15 m3m
Determine the shear throughout the beam as a function of 1 for <I<4 m. Express your answer in terms of . Express the coefficients using three algnificant figures. View Avaliable Hint(8) WAPvec O2? Submit Part B Determine the moment throughout the beam as a function of for 0 <<4 m. Express your answer in terms of . Express the coefficients using three algnificant figures. View Avaliable Hint(8) 0 AED vec R O ? M Submit Part C Determine the shear...
